RC110p CAB

RC110PCAB cooling (engine/hydraulic oil) Diagram

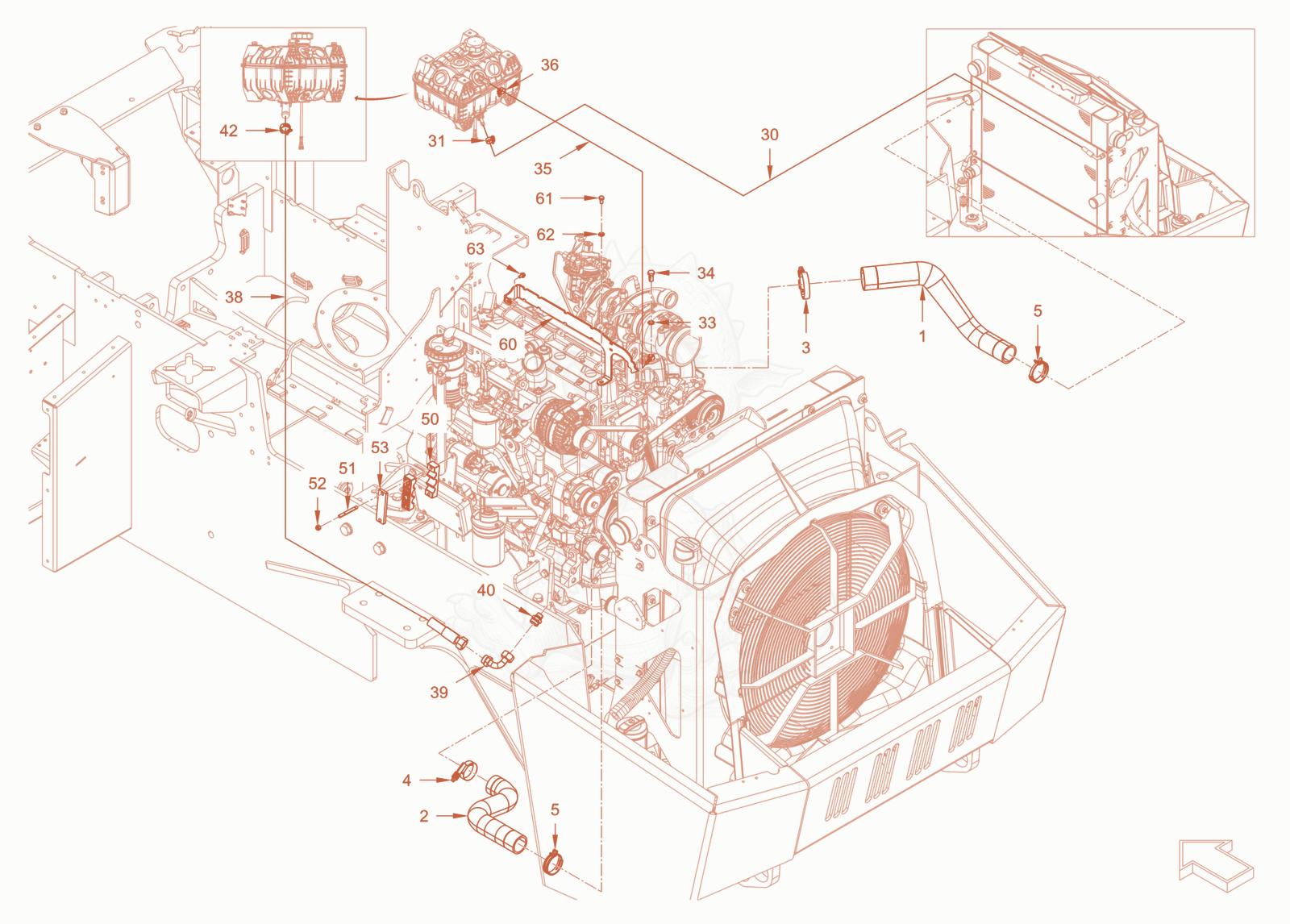

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RC110PCAB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100074547Not stocked
    hose×1
  • 25100074677Not stocked
    hose×1
  • 35100078873Not stocked
    clamp×1
  • 45100078875Not stocked
    clamp×1
  • 55100074965Not stocked
    hose clamp×2
  • 305100075042Not stocked
    hose×1
  • 315100034989
    $4.59
    hose clamp - 5100034989×1
  • 335100075090Not stocked
    sealing ring×2
  • 345100075139Not stocked
    hollow-core screw×1
  • 355100074485Not stocked
    hose×1
  • 365100034989
    $4.59
    hose clamp - 5100034989×1
  • 385100074507Not stocked
    hose×1
  • 395100074519Not stocked
    intermediate piece×1
  • 405100074523Not stocked
    straight screwed socket×1
  • 425100074529Not stocked
    hose clamp×1
  • 505100074533Not stocked
    half-clip×2
  • 515100012977
    $4.15
    Stud bolt - 5100012977×2
  • 525100053004
    $1.57
    safety nut - 5100053004×2
  • 535100023375Not stocked
    Flat steel×1
  • 605100074538Not stocked
    metal plate×1
  • 615100012515
    $1.49
    Hexagon screw - 5100012515×1
  • 625100012966
    $1.57
    Locking washer - 5100012966×1
  • 635100023164
    $3.88
    safety screw - 5100023164×1
