RD12K-90 Tandem Roller, Configurable

RD14K-90 Water Tank Diagram

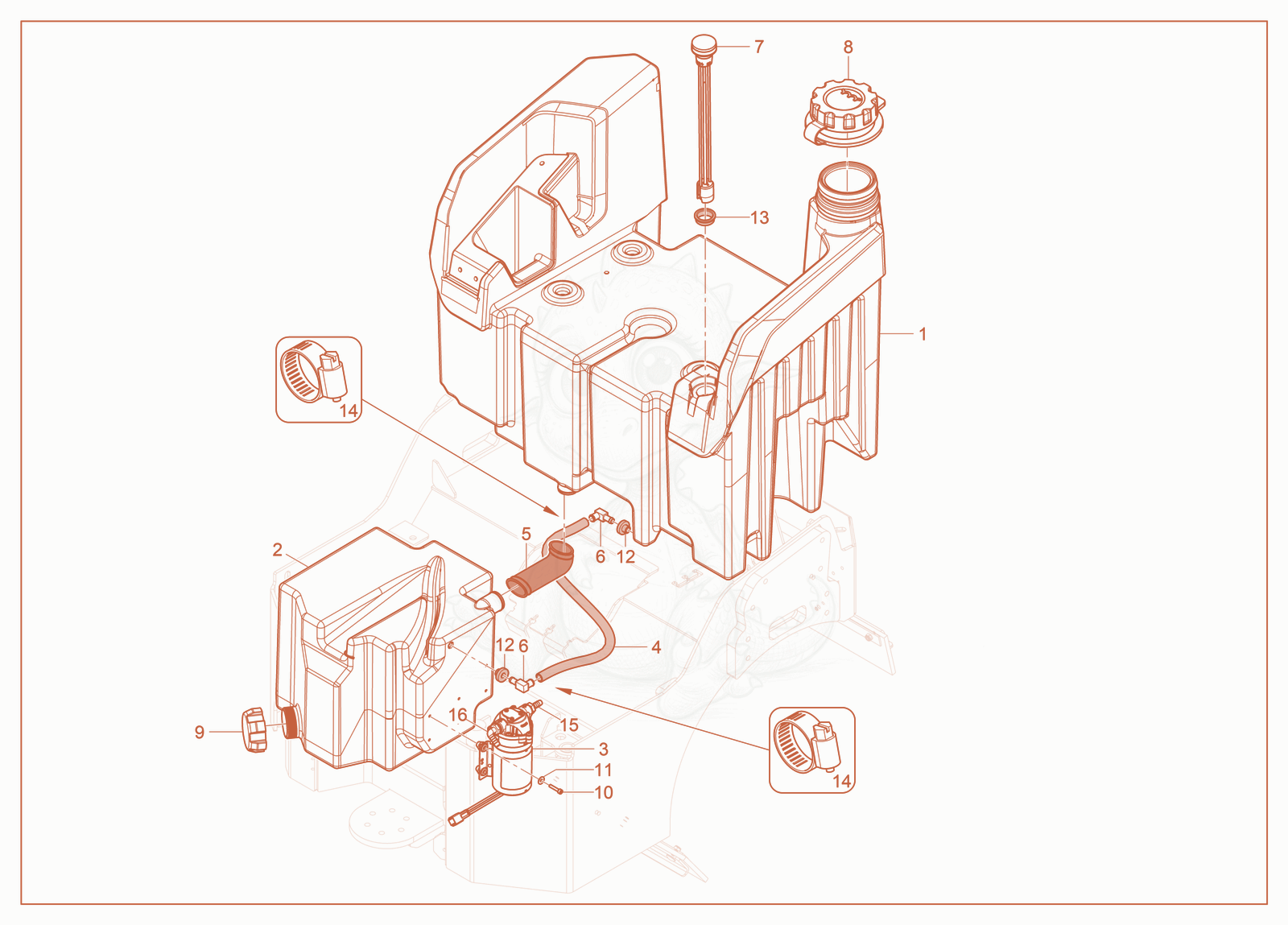

Exploded parts diagram of the Water Tank of a Wacker Neuson RD14K-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100040426
    $691.03
    TANK ASM-WATER, UPPER RD12 - 5100040426×1
  • 25100042787
    $346.23
    TANK ASM-WATER, LOWER RD12 - 5100042787×1
  • 35100078218Not stocked
    PUMP, WATER, ASSY×1
  • 45100042991
    $8.40
    HOSE-1/2 WATER UPPER TO LOWER - 5100042991×1
  • 55100041578
    $5.16
    HOSE-RD12 WATER TANK - 5100041578×1
  • 65000078500
    $11.61
    FITTING-ELBOW,BARBED,HOSE - 5000078500×2
  • 75100037329
    $29.78
    GAUGE, WATER RD12 - 5100037329×1
  • 85100030251
    $32.37
    CAP-WATER TANK - 5100030251×1
  • 95200010567Not stocked
    Cap×1
  • 105000163951
    $0.66
    SCREW M5X25 SOC.HD BL ZN 10.9 - 5000163951×4
  • 115000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×4
  • 125000053577
    $0.69
    BUSHING-TANK VALVE MOUNTING - 5000053577×2
  • 135100036761
    $6.29
    GROMMET, SNAP GAUGE - 5100036761×1
  • 145000119940
    $1.57
    CLAMP-HOSE,#6,.31-.78 - 5000119940×2
  • 155000163475
    $3.11
    BARB-O6NPT,STRAIGHT - 5000163475×1
  • 165100083628Not stocked
    BARB-O6NPT,ELBOW×1
