RD12K-90 Tandem Roller, Configurable

RD14K-90 Throttle Actuator Diagram

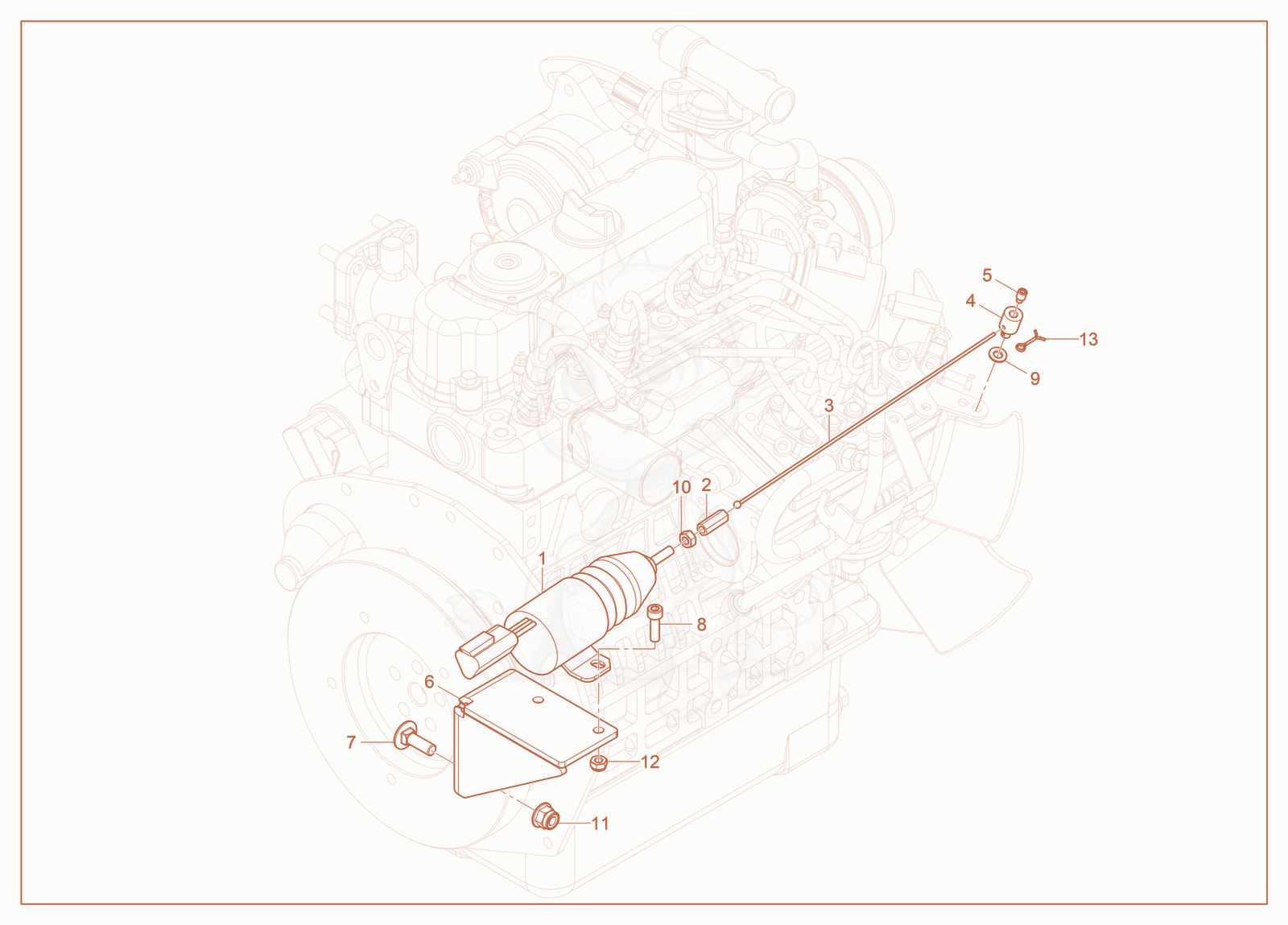

Exploded parts diagram of the Throttle Actuator of a Wacker Neuson RD14K-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000155486
    $205.13
    ACTUATOR-THROTTLE - 5000155486×1
  • 25000155487
    $13.92
    ADAPTOR-CABLE,M6 - 5000155487×1
  • 35200017278Not stocked
    Throttle cable×1
  • 45200017277Not stocked
    Sleeve×1
  • 55000156315
    $0.09
    SCREW-SET M6X10,DOG PT. - 5000156315×1
  • 65100040329Not stocked
    Bracket×1
  • 75000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×2
  • 85000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×2
  • 95000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 105000010880
    $0.03
    NUT M6 8,HEX - 5000010880×1
  • 115100045993
    $0.12
    NUT-M8-HEX.FLG.NYLOC-8-ZNC - 5100045993×2
  • 125000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 135000114328
    $0.04
    PIN-COTTER 1.6 X 16 - 5000114328×1
