RD12K-90 Tandem Roller, Configurable

RD14K-90 Kit—Backup Alarm Diagram

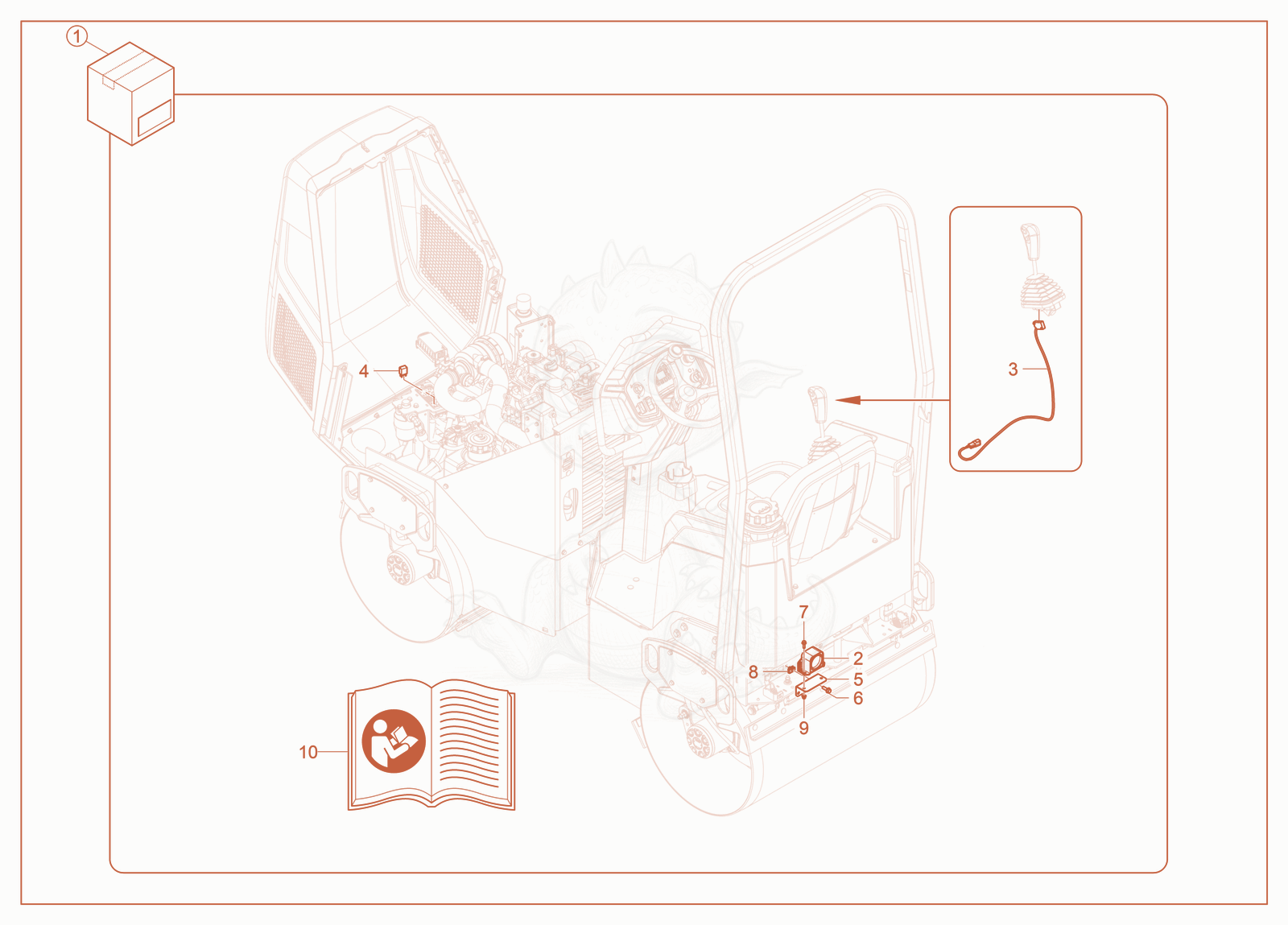

Exploded parts diagram of the Kit—Backup Alarm of a Wacker Neuson RD14K-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100044402Not stocked
    Kit—backup alarm×1
  • 25000078352
    $106.85
    ALARM-BACK UP - 5000078352×1
  • 25000118527
    $0.58
    Terminal-Ring 22-18 3/16ins - 5000118527×2
  • 35100051538
    $324.15
    SWITCH-BACKUP ALARM W/HARDWARE - 5100051538×1
  • 45200025182Not stocked
    Relay×1
  • 55100043155
    $17.39
    BRACKET-BACKUP ALARM P-5000176420 - 5100043155×1
  • 65000163947
    $0.26
    SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×2
  • 75200020974Not stocked
    Hexagonal flange head screw×2
  • 85000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 95200012212Not stocked
    Locknut×2
  • 105100044401Not stocked
    Installation instructions×1
