RD12K-90 Tandem Roller, Configurable

RD14K-90 Seat Assembly Diagram

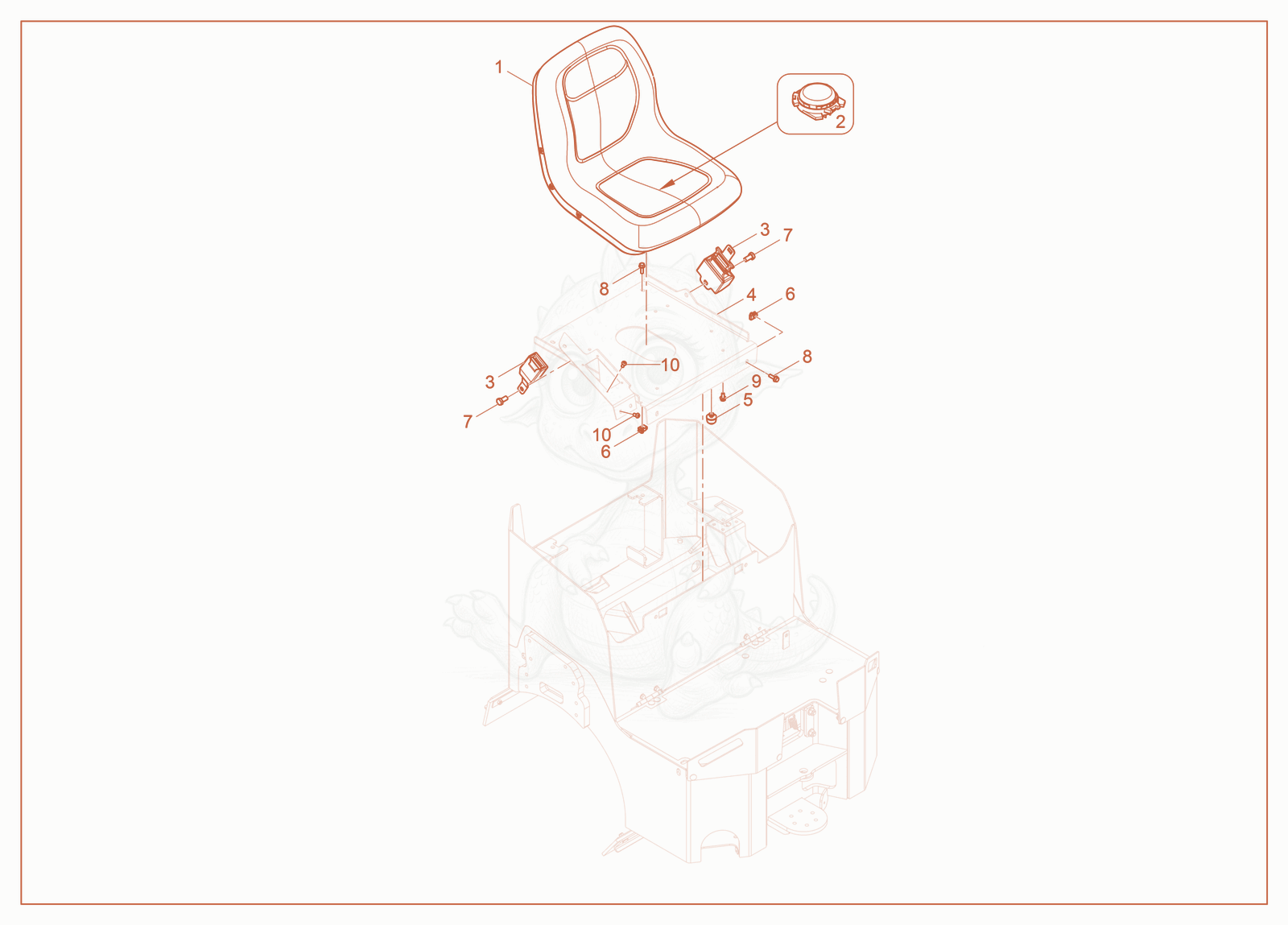

Exploded parts diagram of the Seat Assembly of a Wacker Neuson RD14K-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110970
    $242.91
    Seat-Operator - 5000110970×1
  • 25000164603
    $28.15
    SWITCH-SEAT - 5000164603×1
  • 35000110972
    $62.66
    KIT-SEAT BELT - 5000110972×1
  • 45100043106Not stocked
    Plate×1
  • 55000105056
    $4.79
    SHOCKMOUNT-M30X20,SPECIAL - 5000105056×4
  • 65000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×10
  • 75000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×2
  • 85000163947
    $0.26
    SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×16
  • 95000163948
    $0.35
    SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×4
  • 105000163945
    $0.26
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×3
