RTLx-SC3

RTSC3 Hydraulic Tank Diagram

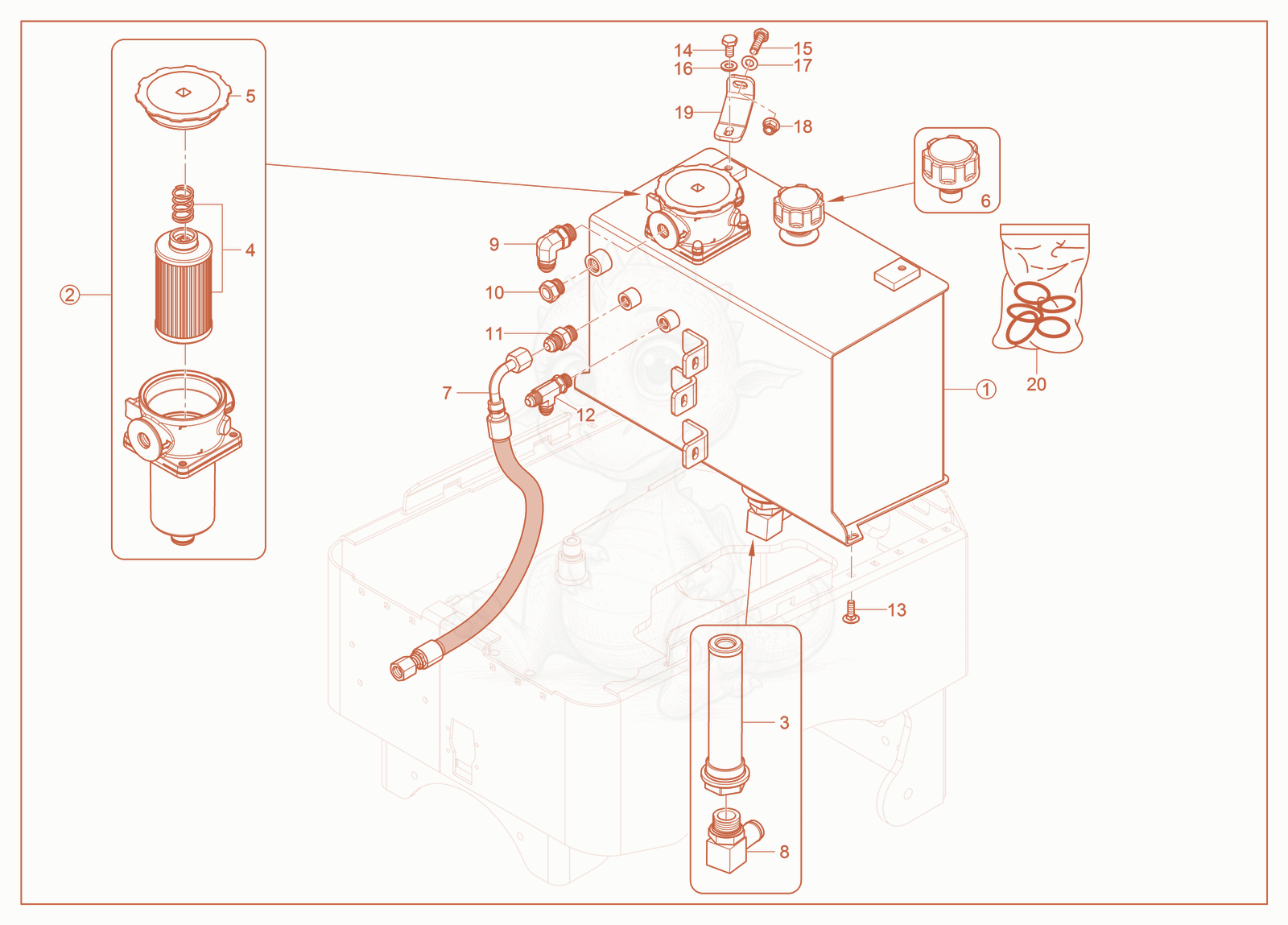

Exploded parts diagram of the Hydraulic Tank of a Wacker Neuson RTSC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100056727
    $866.84
    TANK-HYDRAULIC - 5100056727×1
  • 25000182748
    $307.90
    FILTER-RETURN - 5000182748×1
  • 35000182746
    $97.11
    STRAINER-SUCTION - 5000182746×1
  • 45100059885
    $55.67
    Filter element cpl. - 5100059885×1
  • 55000182750
    $51.29
    COVER W/O RING - 5000182750×1
  • 65200000845
    $108.00
    Breather cap - 5200000845×1
  • 75100056981
    $25.88
    HOSE ASSEMBLY - 5100056981×1
  • 85000182747
    $47.37
    FITTING-BARBED,16 x 16 x 90 - 5000182747×1
  • 91000440161
    $5.80
    FITTING HYD 08MB-08MJ90 - 1000440161×1
  • 105000116236
    $25.02
    Sightglass - 5000116236×1
  • 111000343338
    $2.95
    FITTING HYD 06MB-06MJ - 1000343338×1
  • 121000343369Not stocked
    Tee fitting×1
  • 135100045993
    $0.12
    NUT-M8-HEX.FLG.NYLOC-8-ZNC - 5100045993×2
  • 135000157165
    $0.29
    BOLT-CARR. M8 X 25 8.8,ZN YEL - 5000157165×2
  • 145000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×2
  • 155000011438
    $0.58
    SCREW M10 X 35 HX.HD. - 5000011438×2
  • 165000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×2
  • 175000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×2
  • 185100046317
    $0.37
    NUT-M10-HEX.FLG.NYLOC-8-ZNC - 5100046317×2
  • 195000154260
    $170.51
    BRACKET-HYDRAULIC TANK P-5000112007 - 5000154260×2
  • 205000182733
    $32.48
    Gasket & O-Ring Set - 5000182733×1
