RTLx-SC3

RTSC3 Front Hood Diagram

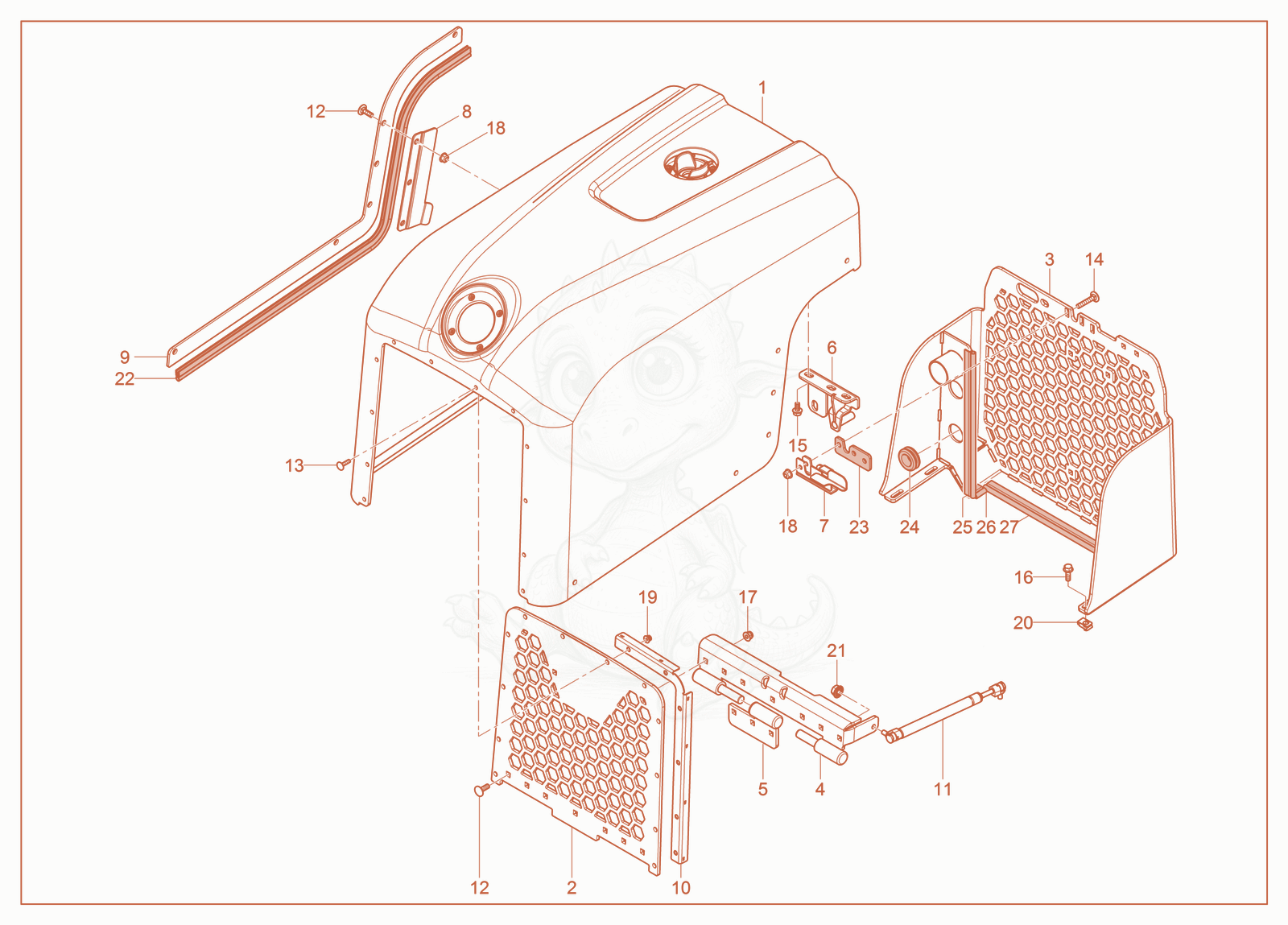

Exploded parts diagram of the Front Hood of a Wacker Neuson RTSC3, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15200017704Not stocked
Front hood×1
15200017708Not stocked
Front hood, green×1
25100058461
$432.33
PANEL-HOOD GRILL - 5100058461Unknown×1
25100058465Not stocked
Engine grill plate, green×1
35100058462
$898.62
GUARD-RADIATOR - 5100058462×1
45000119984
$99.09
HINGE-PIN,LONG P-5000176420 - 5000119984×1
55000164540
$9.78
BUSHING-HINGE - 5000164540×2
55000181474
$49.74
HINGE-HOUSING P-5000176420 - 5000181474×2
65200019751Not stocked
Bracket×1
75000150098
$96.75
LATCH-ROTARY - 5000150098×1
85100060242
$61.36
BRACKET-HOLD IN, FR, RH - 5100060242×1
85100060243
$61.34
BRACKET-HOLD IN, FR, LH - 5100060243×1
95200019755Not stocked
Bracket×2
105000111458
$0.03
WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458Unknown×2
105200019774Not stocked
Bracket×1
115000155125
$1.16
STUD-BALL 10 x M8 - 5000155125×2
115000150104
$21.25
CYLINDER-GAS SPRING - 5000150104×1
125000163950
$0.56
Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×26
135000164579
$1.29
Bolt-Carriage M6x25-4.6,Blk EP3 - 5000164579×12
145000157166
$0.84
Bolt-Carriage M8x45-4.6,Blk EP3,Med Loc - 5000157166×3
155000155839
$0.48
SCREW M8X16 HX HD,SERR FLG BLK - 5000155839×3
165000163947
$0.26
SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×6
175100045993
$0.12
NUT-M8-HEX.FLG.NYLOC-8-ZNC - 5100045993×14
181000343350
$0.18
NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×15
195200012212Not stocked
Locknut×12
205000110969
$0.65
NUT-LOCK,M8 CLIP - 5000110969×6
215000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
225100058110
$15.41
SEAL-TRIM, 1000MM - 5100058110×2
235000160294
$10.91
SPACER-LATCH P-5000112007 - 5000160294×1
245000163464
$1.36
GROMMET,1IDX1-3/4ODX1/4 WOG - 5000163464×2
255100058119
$8.74
SEAL-TRIM, 337MM - 5100058119×1
265100058117
$5.98
SEAL-TRIM, 25MM - 5100058117×1
275100058113
$9.72
SEAL-TRIM, 432 MM - 5100058113×1
