RTLx-SC3

RTSC3 Standard Drum Diagram

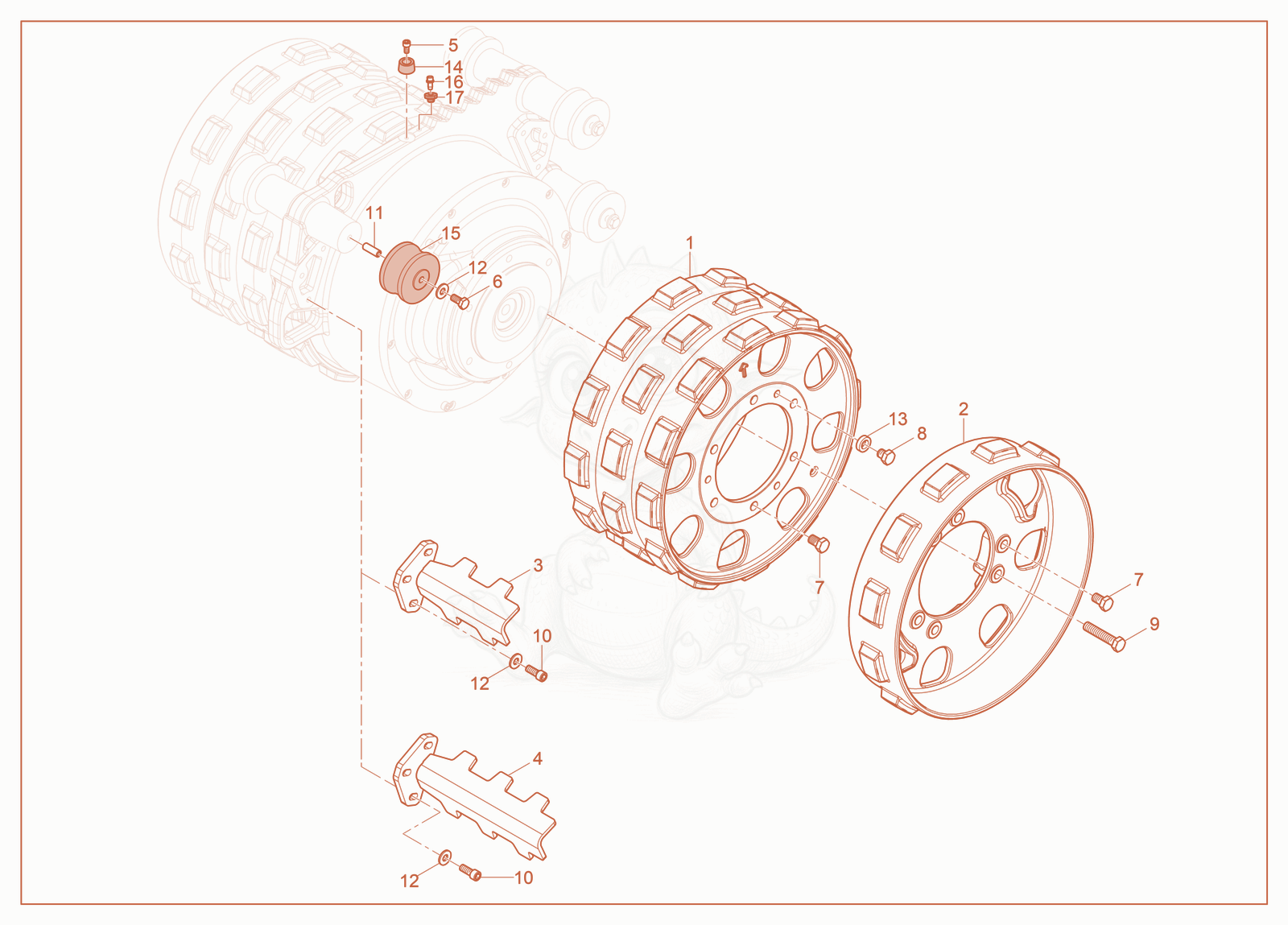

Exploded parts diagram of the Standard Drum of a Wacker Neuson RTSC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200009074
    $855.50
    DRUM-NARROW MACH RTx - 5200009074×2
  • 25200003694
    $799.88
    DRUM-EXTENSION,RT,MACH - 5200003694×2
  • 35200006893
    $117.66
    SCRAPER-NARROW,RT P-5000176420 - 5200006893×4
  • 45200006894
    $142.24
    SCRAPER-WIDE,RT P-5000176420 - 5200006894×4
  • 55000011544
    $0.44
    SCREW M8 X 16 SOC.HD. - 5000011544×1
  • 65000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×6
  • 75000011524
    $1.56
    SCREW M16 X 25 HX.HD. - 5000011524×12
  • 85000031826
    $3.38
    SCREW M16 X 16 HX.HD. - 5000031826×6
  • 95000011380
    $2.82
    SCREW M16 X 80 HX.HD,GR 8.8,ZINC - 5000011380×6
  • 105000017087
    $2.33
    SCREW M12 X 30 10.9,SOC - 5000017087×12
  • 115000180963
    $1.91
    SCREW-SET M12X35 SOC. - 5000180963×6
  • 125000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×18
  • 135200009076
    $0.41
    WASHER-M16, THICK - 5200009076×6
  • 145100055712
    $6.86
    BUMPER, DRUM SUPPORT - 5100055712×1
  • 155002004814
    $74.83
    SHOCKMOUNT 100 X 58-45SH,FRM C - 5002004814×6
  • 161000343308
    $6.66
    BREATHER - 1000343308×1
  • 171000340126
    $0.51
    GROMMET - 1000340126×1
