TH627

TH627(418-12) Numberplate light BG Diagram

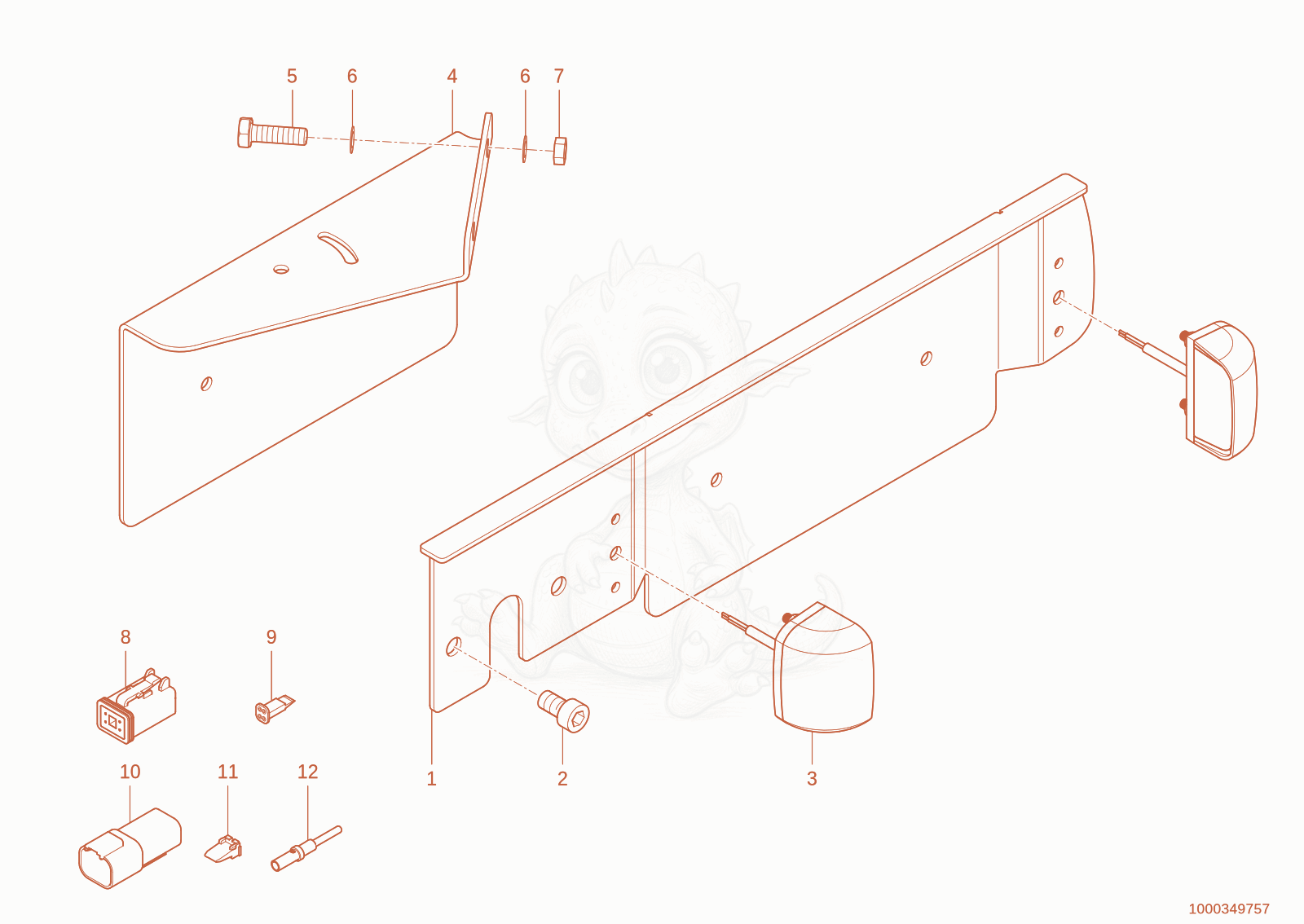

Exploded parts diagram of the Numberplate light BG of a Wacker Neuson TH627(418-12), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000342204
    $223.83
    Bracket - 1000342204×1
  • 21000248551
    $2.49
    CHEESE HEAD SCREW - 1000248551×2
  • 31000283787
    $36.99
    number plate light - 1000283787×2
  • 41000284324
    $109.38
    Bracket - 1000284324×1
  • 51000047828Not stocked
    hex screw×2
  • 61000015431Not stocked
    washer×4
  • 71000013022Not stocked
    hexagon nut×2
  • 81000104286
    $11.39
    bushing housing - 1000104286×1
  • 91000104287
    $0.99
    wedge - 1000104287×1
  • 101000104284
    $15.02
    Pin housing - 1000104284×1
  • 111000104285
    $1.84
    wedge - 1000104285×1
  • 121000085028Not stocked
    pin contact×2
