TH627

TH627(418-12) Auxiliary control circuit rear + tipper Diagram

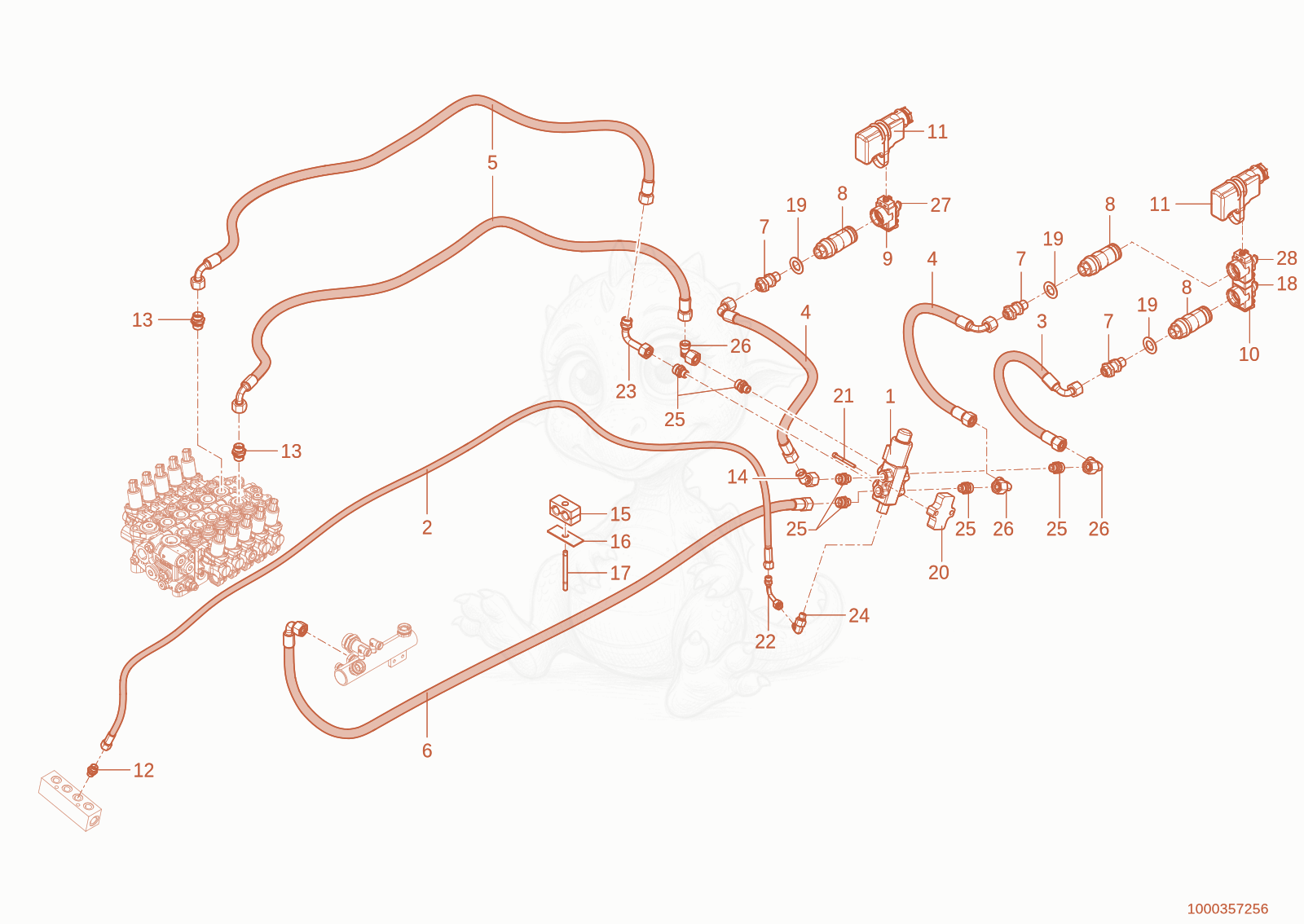

Exploded parts diagram of the Auxiliary control circuit rear + tipper of a Wacker Neuson TH627(418-12), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000190150
    $436.03
    Valve 1000190150×1
  • 21000352211Not stocked
    Hose×1
  • 31000352177Not stocked
    Hose×1
  • 41000352175Not stocked
    Hose×2
  • 51000352179Not stocked
    Hose×2
  • 61000352271Not stocked
    Hose×1
  • 71000050609
    $30.79
    ADAPTER - 1000050609×3
  • 81000343711
    $93.62
    Socket - 1000343711×3
  • 91000277838
    $43.48
    oiltank - 1000277838×1
  • 101000277839
    $72.42
    oiltank - 1000277839×1
  • 111000284530
    $41.98
    Container - 1000284530×2
  • 121000085114
    $3.58
    GE10LMEDOMDA3C - 1000085114×1
  • 131000015494Not stocked
    screw joint×2
  • 141000189050
    $50.03
    EW 15 L 45�� - 1000189050×1
  • 151000031638
    $2.44
    CLAMP - 1000031638×1
  • 161000241566
    $14.01
    Plate - 1000241566×1
  • 171000048898Not stocked
    screw×1
  • 181000284524
    $1.98
    clip - 1000284524×1
  • 191000049223
    $3.16
    WASHER - 1000049223×3
  • 201000336553Not stocked
    distance piece×1
  • 211000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×2
  • 221000279570
    $24.85
    connection piece - 1000279570×1
  • 231000036911Not stocked
    connection piece×1
  • 241000028677Not stocked
    screw joint×1
  • 251000100718
    $9.88
    GE15-LR3/8" E A3C - 1000100718×6
  • 261000015512Not stocked
    screw joint×3
  • 271000284529
    $2.12
    Bracket - 1000284529×1
  • 281000284528
    $3.16
    clip - 1000284528×1
