TH627

TH627(418-12) Frame Diagram

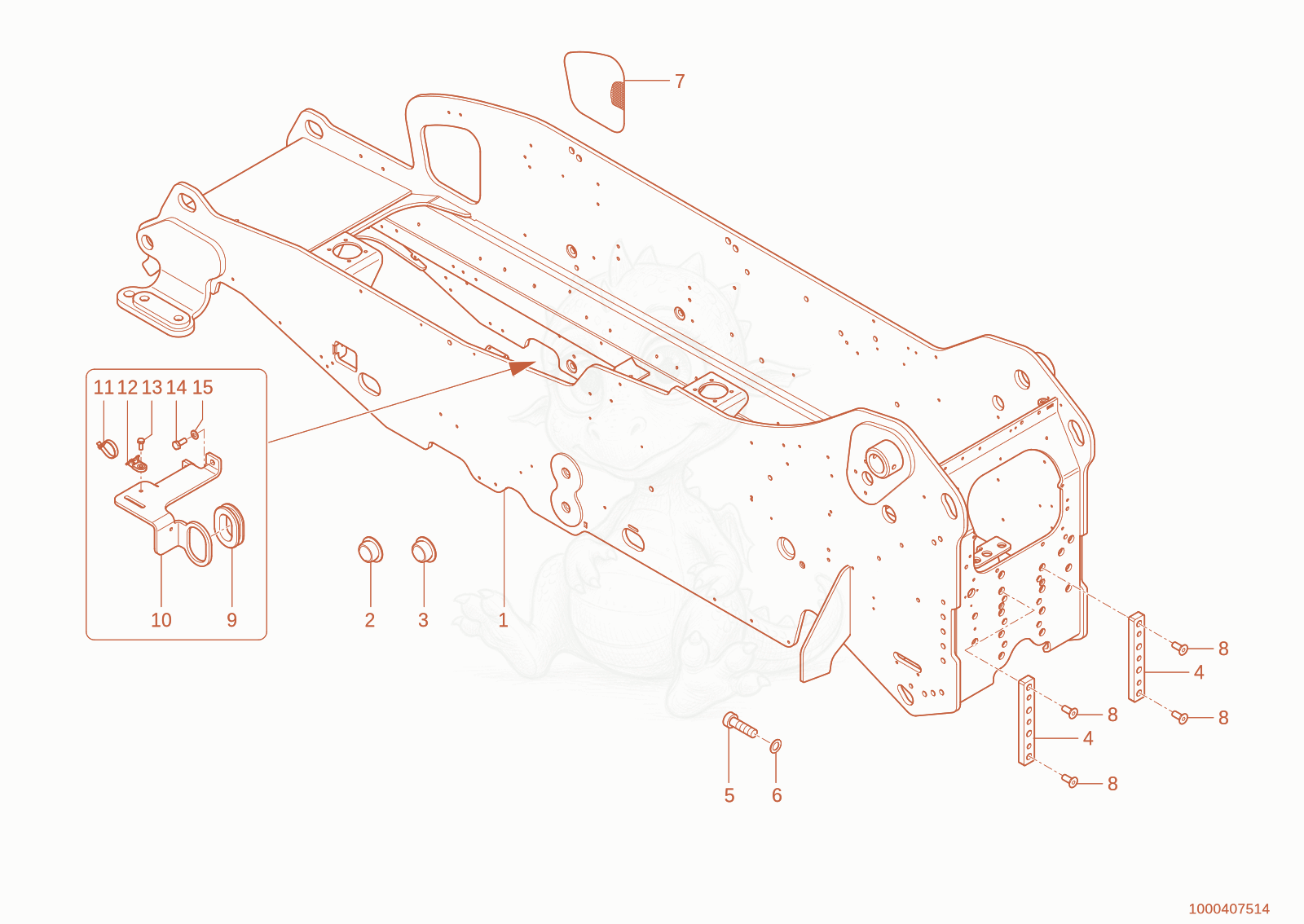

Exploded parts diagram of the Frame of a Wacker Neuson TH627(418-12), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000411279Not stocked
    frame×1
  • 21000153401
    $10.67
    Plug - 1000153401×8
  • 31000153436
    $6.32
    Plug - 1000153436×16
  • 41000348107
    $250.43
    strap - 1000348107×2
  • 51000262498
    $11.08
    CHEESE HEAD SCREW - 1000262498×3
  • 61000262428
    $23.55
    WASHER - 1000262428×3
  • 71000336557Not stocked
    screen×1
  • 81000015373Not stocked
    countersunk screw×4
  • 91000033872
    $7.93
    JUNCTION - 1000033872×1
  • 101000342025
    $34.23
    Bracket - 1000342025×1
  • 111000090012
    $0.50
    CABLE STRAP - 1000090012×1
  • 121000282736
    $11.39
    sockets - 1000282736×1
  • 131000013008Not stocked
    hex screw×1
  • 141000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 151000049278Not stocked
    washer×2
