TH627

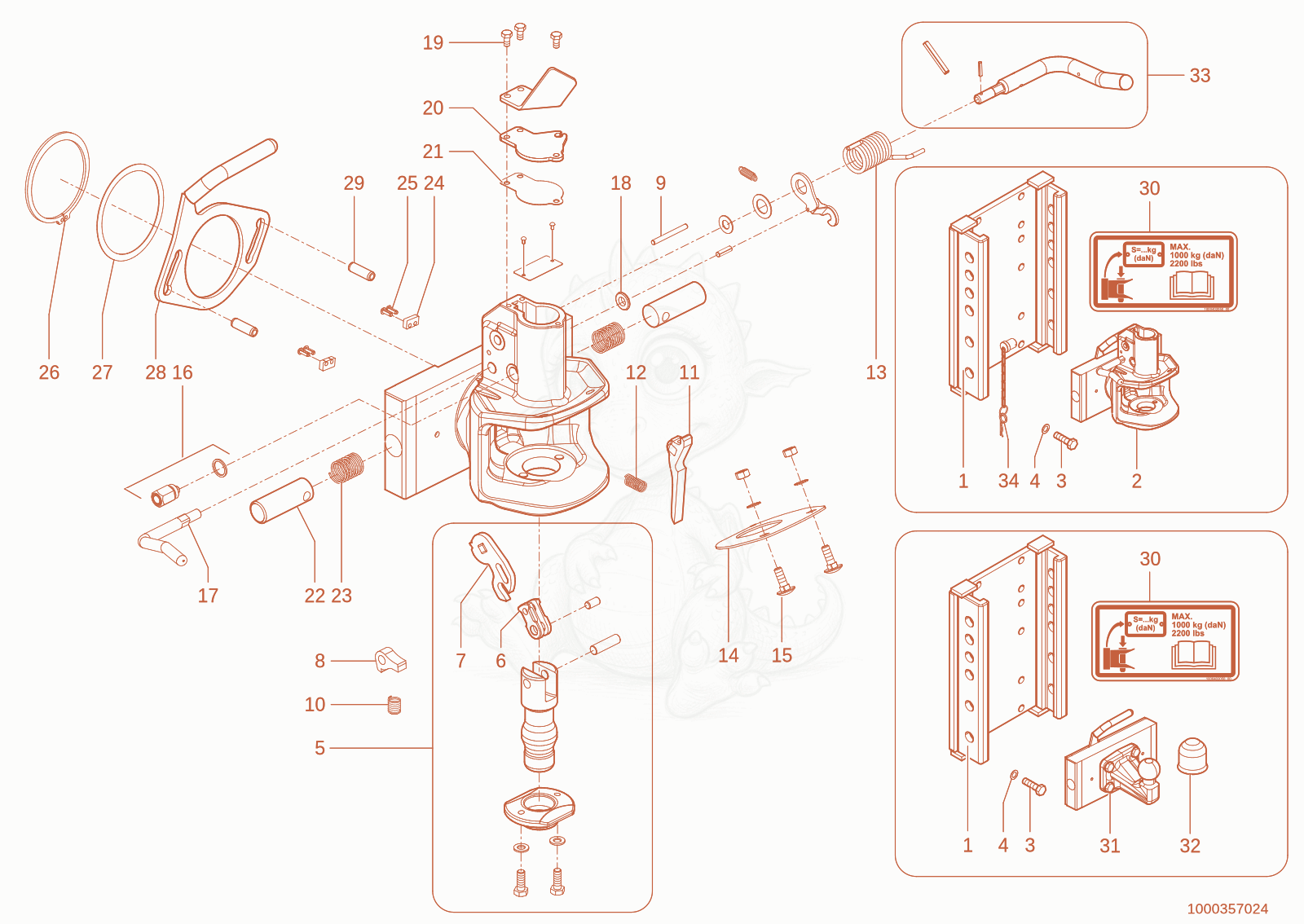

TH627(418-12) trailer coupling Diagram
- mounting - 1000290456×1
- Trailerhitch 1000159341×1
- 31000048317Not stockedcheese head screw×8
- 41000049280Not stockedu-washer×8
- REPAIRING SET - 1000272350×1
- flap - 1000167960×1
- Lever - 1000272373×1
- Lever - 1000272371×1
- CYLINDER PIN - 1000167971×1
- spring - 1000167972×1
- Lever - 1000167964×1
- spring - 1000167973×1
- spring - 1000167974×1
- Bracket - 1000167965×1
- 151000065499Not stockeddoor strap screw×2
- Display unit - 1000167966×1
- HANDLE - 1000167967×1
- CLAMP RING - 1000167968×1
- 191000020553Not stockedhex screw×3
- Cover - 1000167969×1
- Seal - 1000167970×1
- Pin - 1000167984×2
- spring - 1000167985×2
- LIMIT STOP - 1000167986×2
- 251000167991Not stockedgrooved nail×4
- LOCK RING - 1000167990×1
- WASHER - 1000167989×1
- Lever - 1000167995×1
- 291000167994Not stockedcylinder pin×2
- STICKER - 1000402050×1
- Ballhead 1000253425×1
- cover cap - 1000186961×1
- HANDLE - 1000272348×1
- Pin - 1000286818×1
