TH735(415-16) Lighting lift arm Diagram

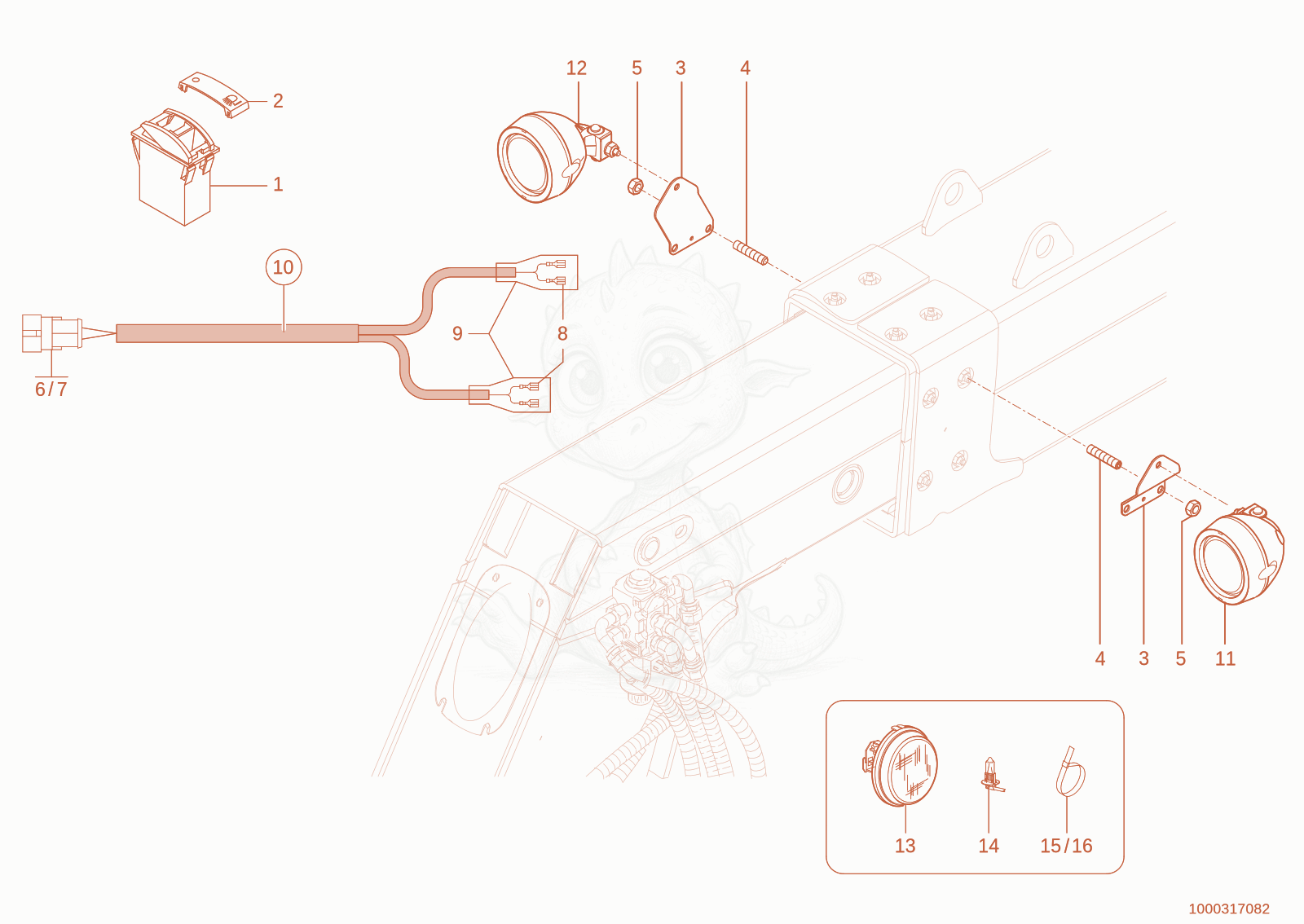

Exploded parts diagram of the Lighting lift arm of a Wacker Neuson TH735(415-16), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000353495Not stocked
    tilt switch×1
  • 21000139308Not stocked
    Symbol×1
  • 31000167020Not stocked
    bracket×2
  • 41000158036
    $4.95
    THREAD PIN - 1000158036×6
  • 51000015415Not stocked
    hexagon nut×6
  • 61000155227
    $2.27
    Pin housing - 1000155227×1
  • 71000155228
    $1.41
    Pin contact - 1000155228×2
  • 81000095336Not stocked
    plug sleeve housing×2
  • 91000151117
    $4.77
    PROTECTING CAP - 1000151117×2
  • 101000285702Not stocked
    wiring harness×1
  • 111000051954Not stocked
    working light×1
  • 121000051955Not stocked
    working light×1
  • 131000106679
    $92.93
    Headlight insert - 1000106679×1
  • 141000109711
    $11.14
    bulb - 1000109711×1
  • 151000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×5
  • 161000089965
    $0.11
    Cable tie 200x4,6 - 1000089965×27
