TH735(415-16) connection Diagram

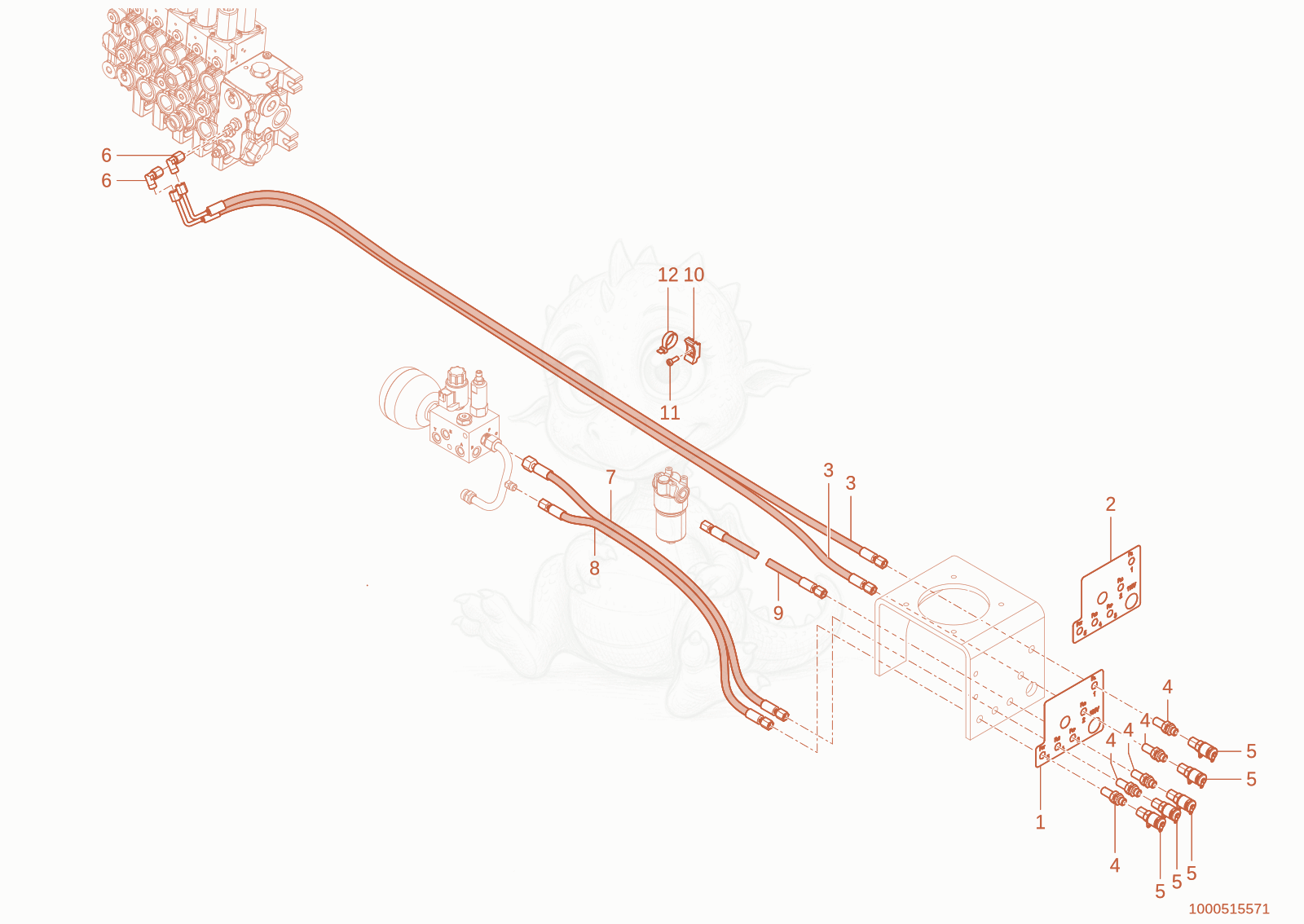

Exploded parts diagram of the connection of a Wacker Neuson TH735(415-16), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000426259Not stocked
    cover plate×1
  • 21000426260Not stocked
    cover plate×1
  • 31000310565Not stocked
    Hose×2
  • 41000028417
    $2.76
    SV06-L - 1000028417×5
  • 51000028660Not stocked
    minimess point×5
  • 61000085055
    $7.50
    EW06LOMDA3C - 1000085055×1
  • 71000289689Not stocked
    Hose×1
  • 81000289688Not stocked
    Hose×1
  • 91000290036Not stocked
    Hose×1
  • 101000282739
    $2.12
    sockets - 1000282739×1
  • 111000048391Not stocked
    cheese head screw×1
  • 121000090012
    $0.50
    CABLE STRAP - 1000090012×1
