Telehandlers

TH735(415-16) 3. Quickhitch facility cycle Diagram

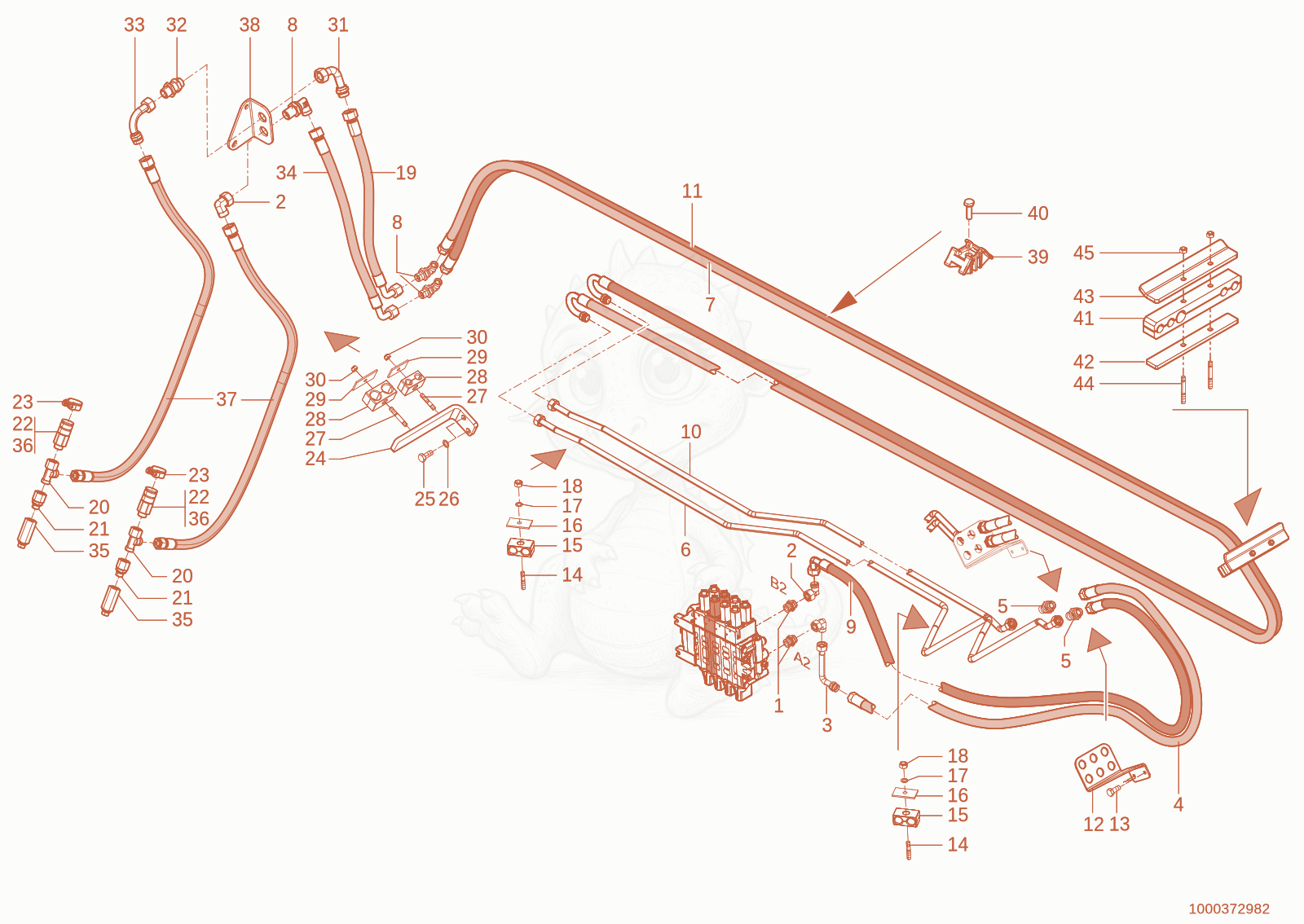

Exploded parts diagram of the 3. Quickhitch facility cycle of a Wacker Neuson TH735(415-16), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015565Not stocked
    screw joint×2
  • 21000015513Not stocked
    screw joint×2
  • 31000179701
    $54.26
    CONNECTION PIECE - 1000179701×1
  • 41000289651Not stocked
    Hose×1
  • 51000015563Not stocked
    screw joint×2
  • 61000285617Not stocked
    hydraulic pipe×1
  • 71000289692
    $266.56
    Slhydr16Pn18Pd18180L6950 1000289692×1
  • 81000028331Not stocked
    screw joint×1
  • 91000289657Not stocked
    Hose×1
  • 101000285794Not stocked
    hydraulic pipe×1
  • 111000289693
    $269.01
    Slhydr16Pn18Pd18180L7050 1000289693×1
  • 121000268223Not stocked
    bracket×1
  • 131000013008Not stocked
    hex screw×2
  • 141000233926
    $1.99
    Stud M8x110-8.8 VZD - 1000233926×6
  • 151000031626
    $3.54
    CLAMP - 1000031626×6
  • 161000031230Not stocked
    cover plate×6
  • 171000013027Not stocked
    washer×2
  • 181000013022Not stocked
    hexagon nut×2
  • 191000271365
    $55.30
    SLHYDR 2SCP16 PN18 0 PN18 45 L460,0 - 1000271365×2
  • 201000015539Not stocked
    screw joint×2
  • 211000028198Not stocked
    screw joint×2
  • 221000028413Not stocked
    quick lock coupling×2
  • 231000033344
    $6.47
    Cover - 1000033344×2
  • 241000239988
    $48.66
    Bracket - 1000239988×1
  • 251000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 261000092291
    $0.80
    WASHER - 1000092291×2
  • 271000048893Not stocked
    stud×1
  • 281000368204
    $5.60
    clamp - 1000368204×1
  • 291000031245Not stocked
    cover plate×1
  • 301000013022Not stocked
    hexagon nut×2
  • 311000168252
    $43.21
    CONNECTION PIECE - 1000168252×1
  • 321000015563Not stocked
    screw joint×1
  • 331000147641
    $38.64
    CONNECTION PIECE - 1000147641×1
  • 341000306228Not stocked
    Hose×2
  • 351000293697
    $54.45
    VERSCHRAUBUNG - 1000293697×2
  • 361000019246Not stocked
    quick lock coupling×2
  • 371000312464Not stocked
    Hose×2
  • 381000366299Not stocked
    bracket×1
  • 391000291567
    $6.26
    sockets - 1000291567×1
  • 401000018400Not stocked
    hex screw×1
  • 411000233516Not stocked
    clamp×1
  • 421000283577Not stocked
    plate×1
  • 431000283578Not stocked
    cover plate×1
  • 441000048896Not stocked
    stud×2
  • 451000013022Not stocked
    hexagon nut×2
