TH735(415-16) control unit Diagram

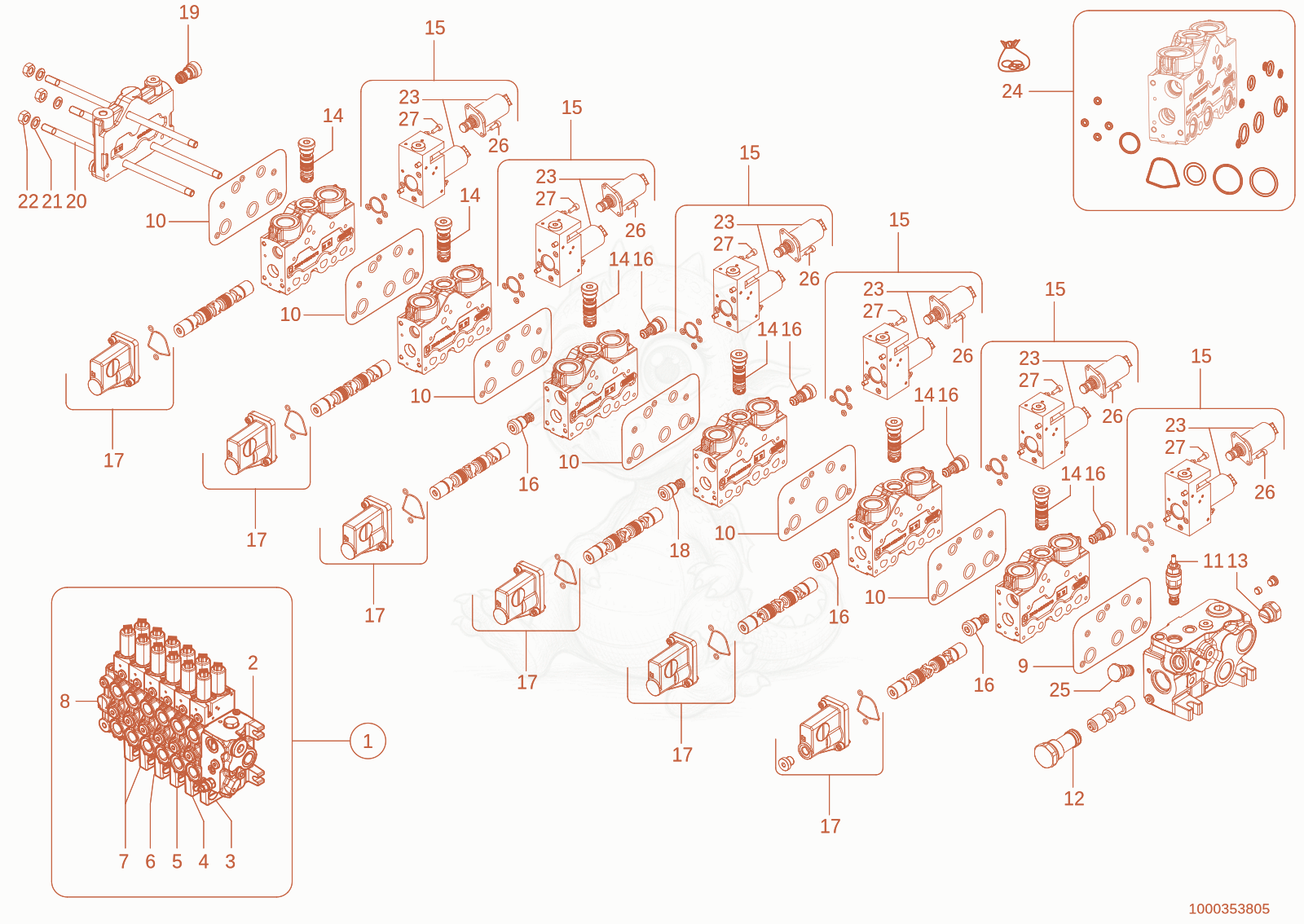

Exploded parts diagram of the control unit of a Wacker Neuson TH735(415-16), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000282788Not stocked
    control unit×1
  • 21000291575
    $2,494.24
    Inputsection 1000291575×1
  • 31000317712Not stocked
    valve block×1
  • 41000317713Not stocked
    valve block×1
  • 51000317714Not stocked
    valve block×1
  • 61000317715Not stocked
    valve block×1
  • 71000291611Not stocked
    valve block×2
  • 81000291610
    $693.88
    Valveblock 1000291610×1
  • 91000233004
    $287.51
    seal kit - 1000233004×1
  • 101000233005
    $311.03
    seal kit - 1000233005×6
  • 111000327172Not stocked
    pressure reduct.valve×1
  • 121000232668
    $88.80
    Plug - 1000232668×1
  • 131000232580
    $76.38
    Plug - 1000232580×1
  • 141000291578
    $212.01
    valve - 1000291578×6
  • 151000291602Not stocked
    set implement×6
  • 161000317717
    $289.48
    Valve - 1000317717×7
  • 171000291603
    $350.52
    Housing - 1000291603×6
  • 181000232670Not stocked
    valve×1
  • 191000291604
    $409.26
    Regulating valve - 1000291604×1
  • 201000291613Not stocked
    tie rod×3
  • 211000232644
    $3.45
    Washer - 1000232644×3
  • 221000232643
    $7.02
    NUT - 1000232643×3
  • 231000325241Not stocked
    solenoid valve×12
  • 241000317716Not stocked
    seal kit×6
  • 251000287652
    $138.74
    valve plug - 1000287652×1
  • 261000507291Not stocked
    screw×24
  • 271000507292Not stocked
    screw×12
