TH745 (416-32)

TH745(416-32) steering cylinder Diagram

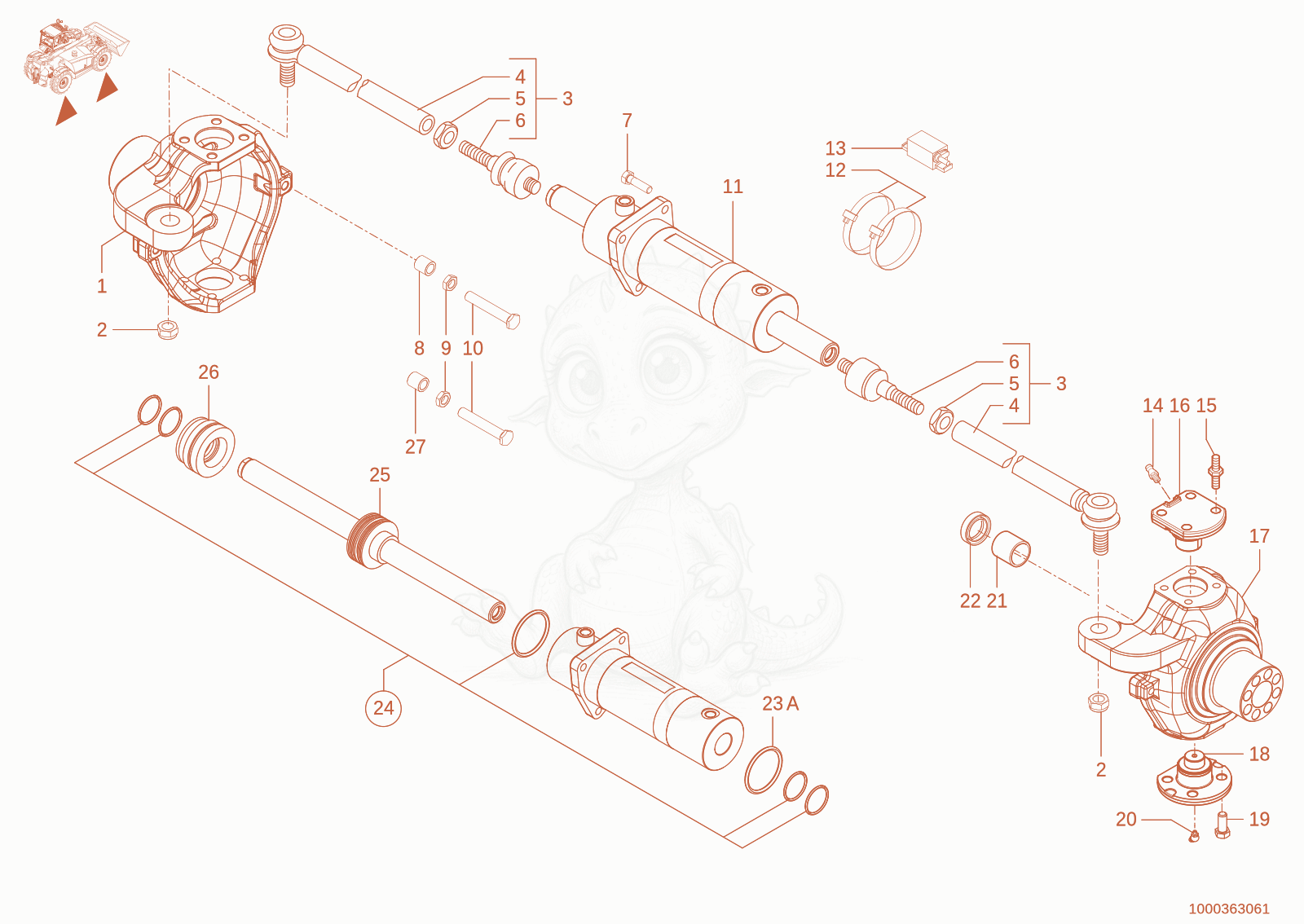

Exploded parts diagram of the steering cylinder of a Wacker Neuson TH745(416-32), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000362903Not stocked
    planet carrier×1
  • 21000139067
    $5.21
    Nut - 1000139067×2
  • 31000294707Not stocked
    steering lever×2
  • 41000294708Not stocked
    track rod×2
  • 51000089258Not stocked
    nut×2
  • 61000139064
    $159.15
    Articulation 1000139064×2
  • 71000089295
    $0.63
    Screw - 1000089295×3
  • 81000243628
    $6.40
    Bushing - 1000243628×2
  • 91000098255
    $0.50
    HEXAGON NUT - 1000098255×4
  • 101000089283
    $2.16
    Screw - 1000089283×4
  • 111000294709
    $1,894.53
    Steeringcylinder 1000294709×1
  • 121000108437Not stocked
    clamp×2
  • 131000314210
    $482.16
    Sensor - 1000314210×1
  • 141000089227
    $0.28
    GREASE NIPPLE - 1000089227×2
  • 151000294746
    $6.40
    Screw - 1000294746×8
  • 161000132765
    $82.31
    Axlepin 1000132765×2
  • 171000362905Not stocked
    planet carrier×1
  • 181000132768
    $78.36
    Axlepinlowerposition 1000132768×2
  • 191000132667
    $2.79
    Screw - 1000132667×8
  • 201000104618
    $2.72
    GREASE NIPPLE - 1000104618×4
  • 211000101874
    $10.69
    Bushing - 1000101874×2
  • 221000294745
    $55.30
    Rotary shaft seal - 1000294745×2
  • 231000294748Not stocked
    Magnet ring×1
  • 241000294713
    $147.27
    seal kit - 1000294713×1
  • 251000294712
    $707.34
    Pistonrod 1000294712×1
  • 261000294711
    $169.11
    Cylinderhead 1000294711×1
  • 271000362904
    $5.68
    Bushing - 1000362904×2
