TH745 (416-32)

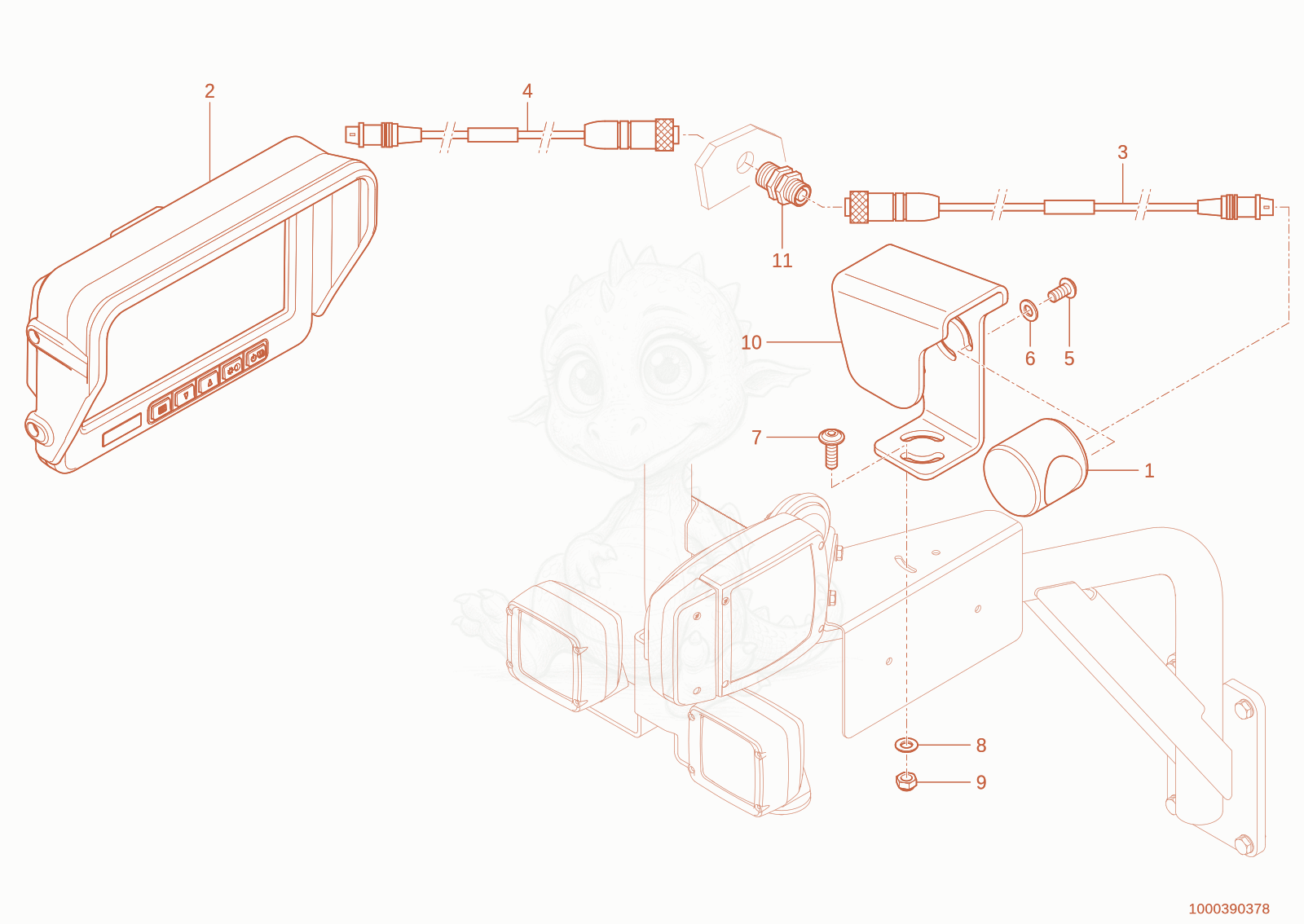

TH745(416-32) camera Diagram

Exploded parts diagram of the camera of a Wacker Neuson TH745(416-32), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000380360
    $920.50
    camera - 1000380360×1
  • 21000376907Not stocked
    Monitor cpl.×1
  • 31000380472
    $139.21
    cable - 1000380472×1
  • 41000380471
    $116.58
    cable - 1000380471×1
  • 51000152757
    $1.31
    ovalhead screw - 1000152757×2
  • 61000092288
    $3.28
    WASHER - 1000092288×2
  • 71000289762
    $1.16
    halfround screw - 1000289762×2
  • 81000095342
    $1.22
    washer X-1000092302 - 1000095342×2
  • 91000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 101000392841
    $152.37
    Bracket - 1000392841×2
  • 111000394148Not stocked
    wall feedthrough×1
