TH745 (416-32)

TH745(416-32) level advice Diagram

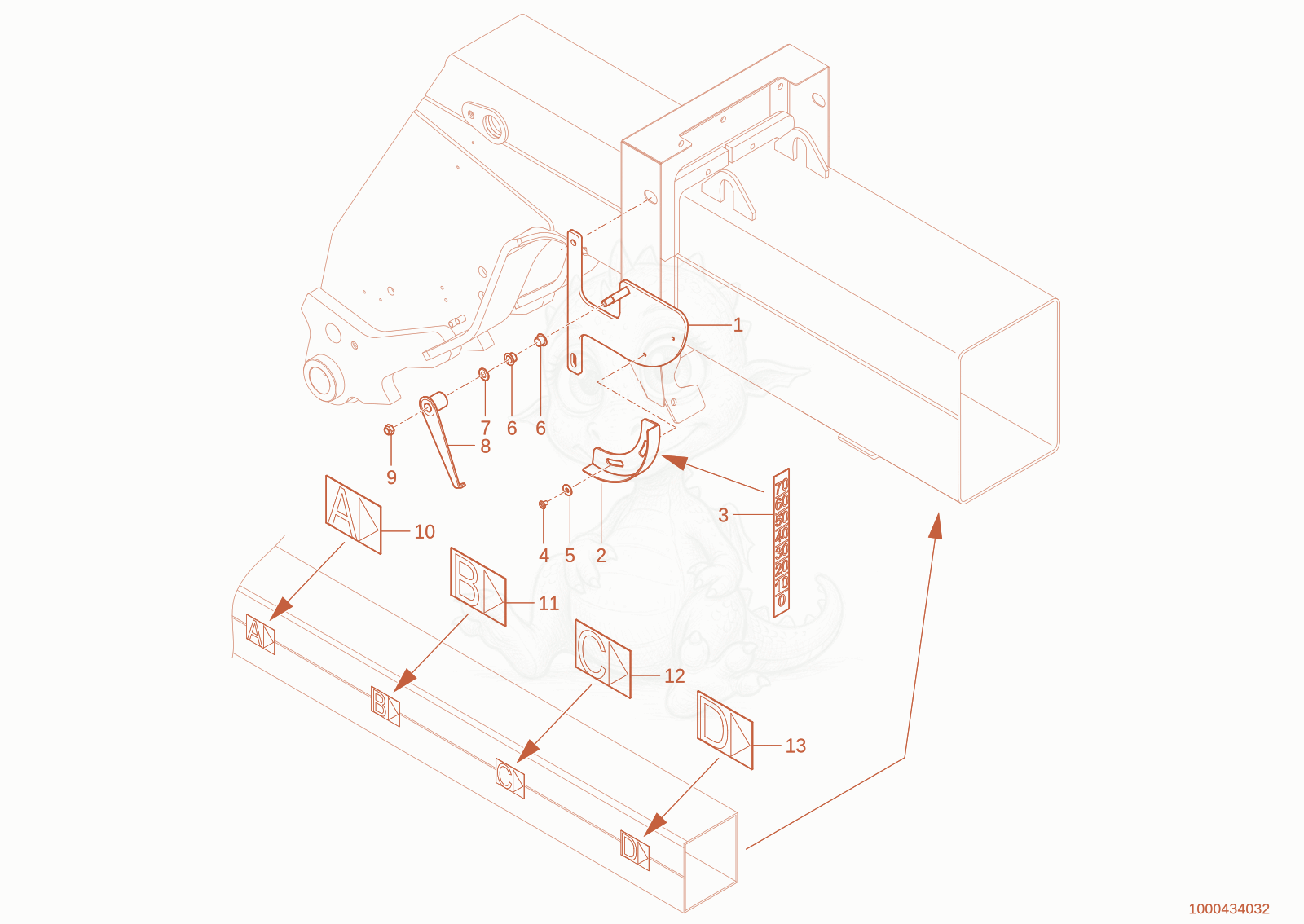

Exploded parts diagram of the level advice of a Wacker Neuson TH745(416-32), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000320382Not stocked
    bracket×1
  • 21000253060
    $94.25
    INDICATOR - 1000253060×1
  • 31000255092
    $24.08
    STICKER - 1000255092×1
  • 41000187775
    $1.11
    SCREW - 1000187775×2
  • 51000049283Not stocked
    bearing disc×2
  • 61000233156
    $3.26
    SLIDE BEARING - 1000233156×2
  • 71000092291
    $0.80
    WASHER - 1000092291×1
  • 81000253059
    $145.09
    Pointer - 1000253059×1
  • 91000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 101000258819
    $29.27
    STICKER - 1000258819×1
  • 111000258820
    $29.27
    STICKER - 1000258820×1
  • 121000258821
    $29.27
    STICKER - 1000258821×1
  • 131000258822Not stocked
    sticker×1
