TH745 (416-32)

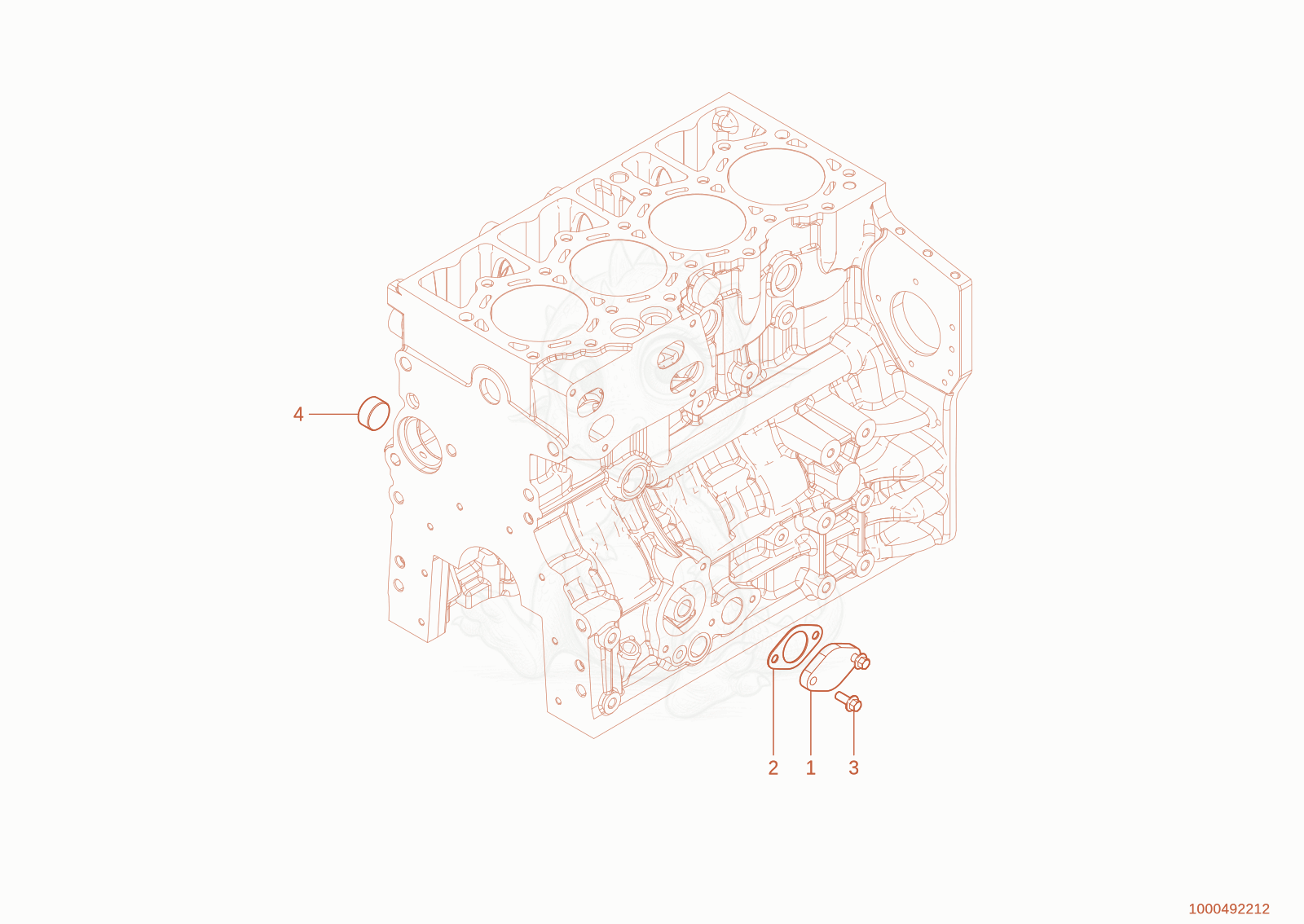

TH745(416-32) Closing parts oil pan Diagram

Exploded parts diagram of the Closing parts oil pan of a Wacker Neuson TH745(416-32), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000492716Not stocked
    blind flange×1
  • 21000360201
    $7.23
    Seal - 1000360201×1
  • 31000327039Not stocked
    hex screw×2
  • 41000492717Not stocked
    lock screw×1
