TH955

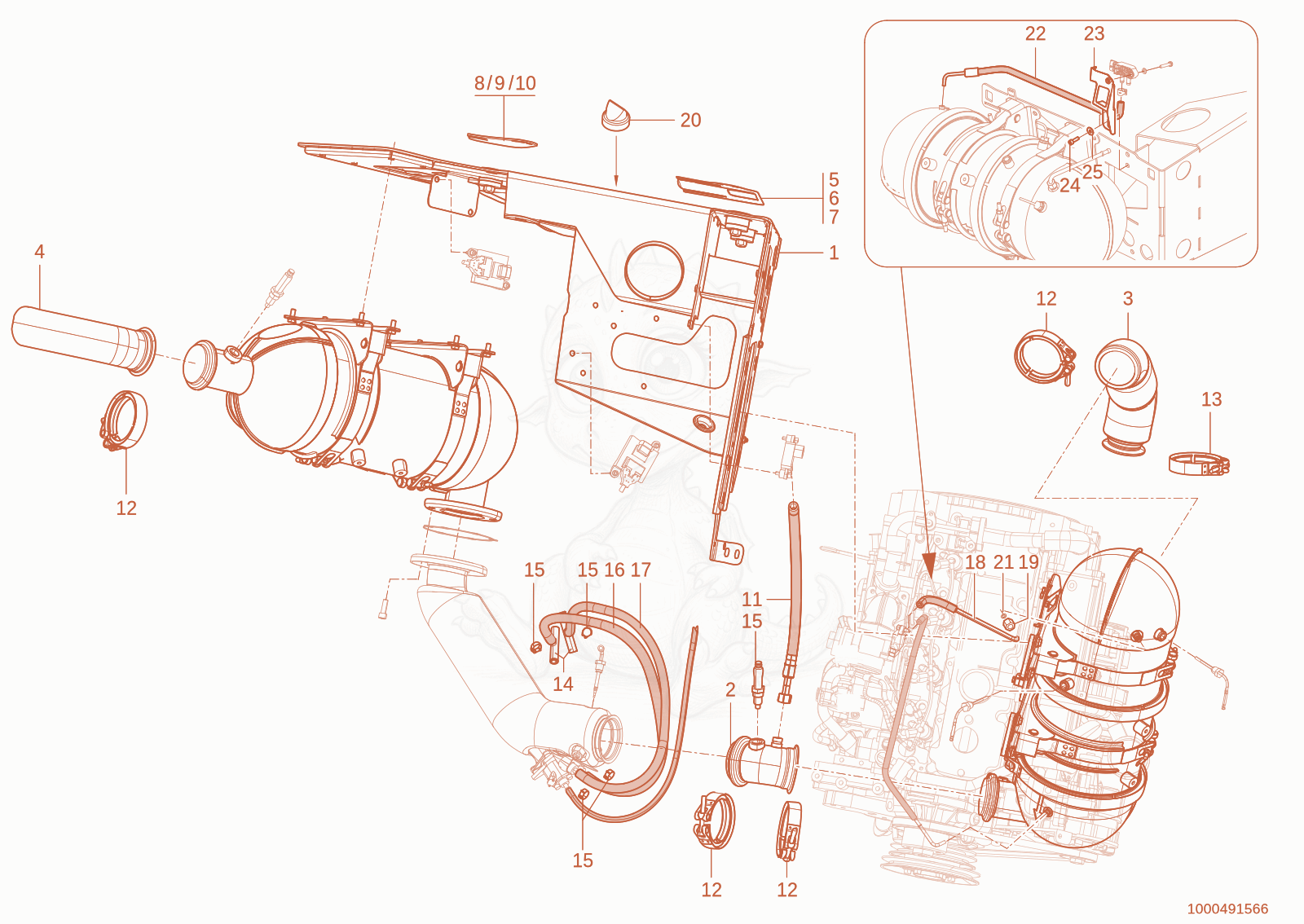

TH955(416-36) exhaust system Diagram

Exploded parts diagram of the exhaust system of a Wacker Neuson TH955(416-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000349487Not stocked
    console×1
  • 21000337492Not stocked
    exhaust pipe×1
  • 31000337840Not stocked
    exhaust pipe×1
  • 41000337839Not stocked
    exhaust pipe×1
  • 51000338708Not stocked
    shim×1
  • 61000338707Not stocked
    shim×1
  • 71000338047Not stocked
    shim×1
  • 81000338706Not stocked
    shim×1
  • 91000338705Not stocked
    shim×1
  • 101000338126Not stocked
    shim×1
  • 111000338046Not stocked
    hose fitting×1
  • 121000354215Not stocked
    clamp×4
  • 131000354216Not stocked
    clamp×1
  • 141000380468Not stocked
    connection piece×2
  • 151000282350
    $6.86
    clamp - 1000282350×4
  • 161000331219Not stocked
    heater hose×1
  • 171000331219Not stocked
    heater hose×1
  • 181000364839Not stocked
    hose fitting×1
  • 191000050487Not stocked
    union nut×1
  • 201000352517Not stocked
    Dust cap×1
  • 211000050475Not stocked
    olive×1
  • 221000462755Not stocked
    Hose dP-Sensor DN6×1
  • 231000463460Not stocked
    bracket×1
  • 241000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
  • 251000281193
    $5.64
    clamp - 1000281193×2
