TH955

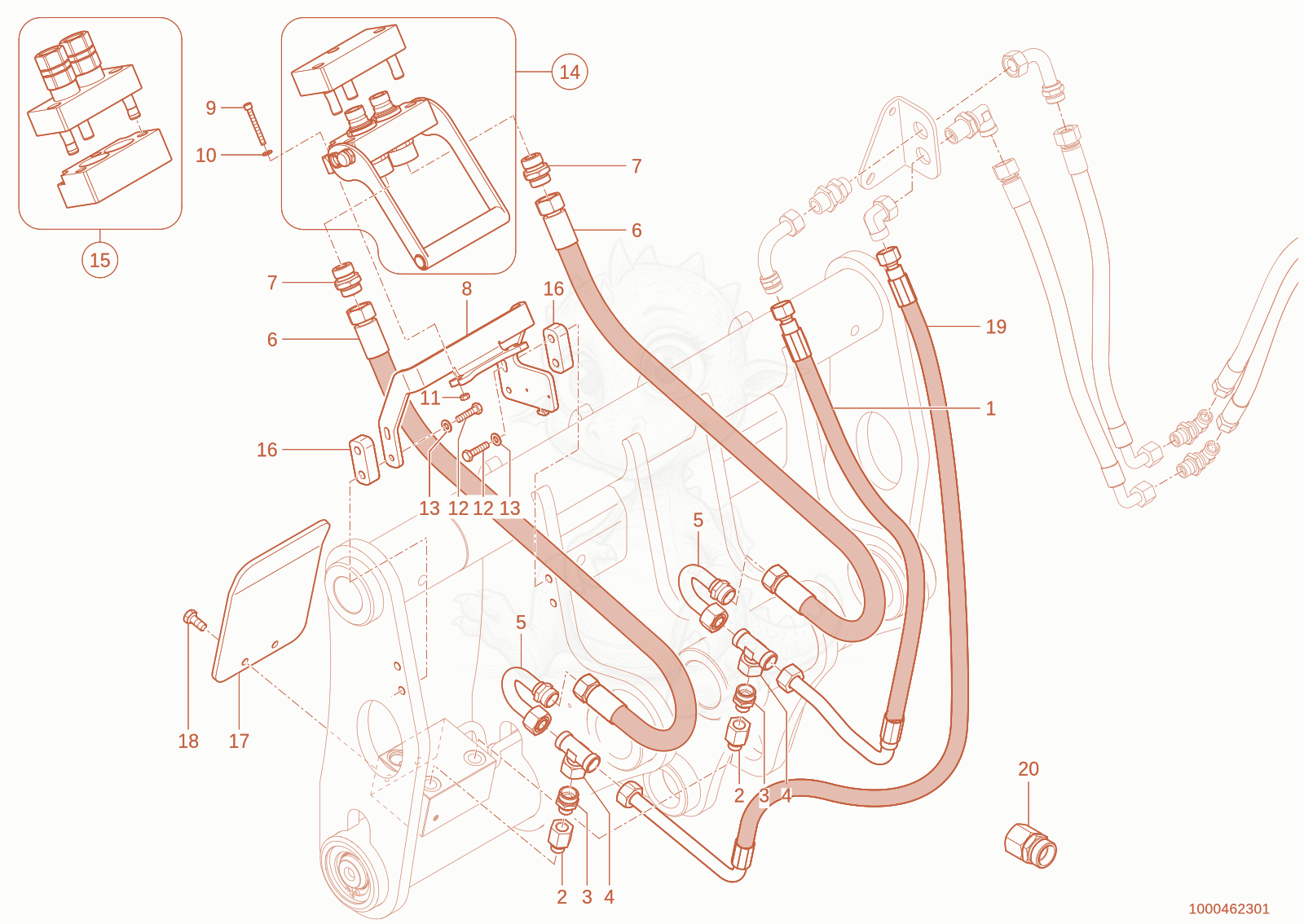

TH955(416-36) 3. Quickhitch facility cycle Diagram

Exploded parts diagram of the 3. Quickhitch facility cycle of a Wacker Neuson TH955(416-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000437188Not stocked
    Hose×1
  • 21000149766
    $48.71
    VERSCHRAUBUNG - 1000149766×2
  • 31000020803Not stocked
    screw joint×2
  • 41000085108
    $18.68
    ET15LOMDA3C - 1000085108×2
  • 51000108257
    $31.72
    CONNECTION PIECE - 1000108257×2
  • 61000357337Not stocked
    Hose×2
  • 71000015565Not stocked
    screw joint×2
  • 81000357344Not stocked
    bracket×1
  • 91000085470
    $1.38
    cheese head screw - 1000085470×2
  • 101000092291
    $0.80
    WASHER - 1000092291×2
  • 111000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 121000015380Not stocked
    hex screw×4
  • 131000013027Not stocked
    washer×4
  • 141000357000Not stocked
    coupling×1
  • 151000357021Not stocked
    coupling×1
  • 161000357333Not stocked
    lining×2
  • 171000359266Not stocked
    protection plate×1
  • 181000019136Not stocked
    hex screw×2
  • 191000443737Not stocked
    Hose×1
  • 201000052135Not stocked
    screw joint×2
