TH955

TH955(416-36) Cycle - Cut-Off Valve Diagram

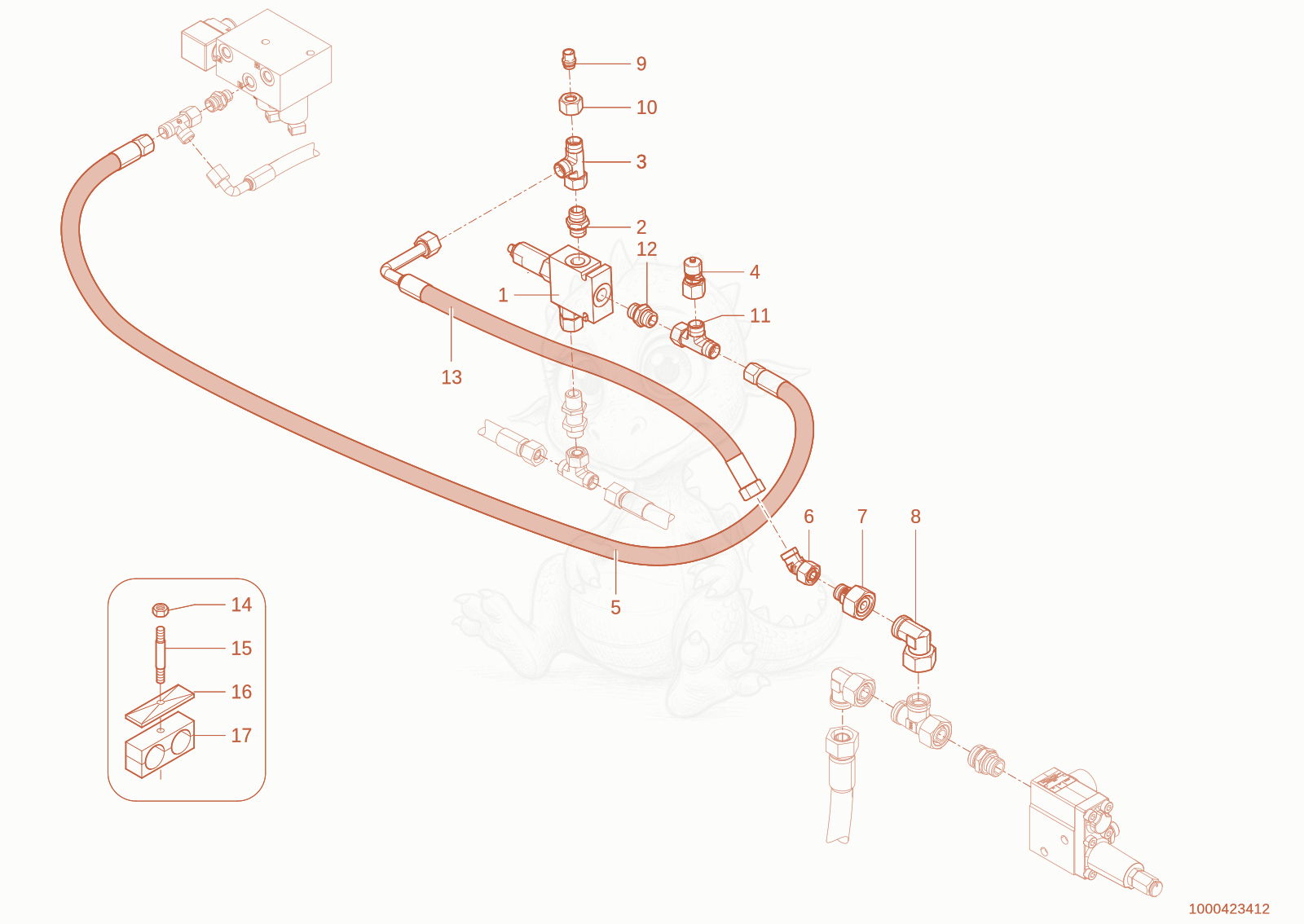

Exploded parts diagram of the Cycle - Cut-Off Valve of a Wacker Neuson TH955(416-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000280812Not stocked
    pressure reduct.valve×1
  • 21000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×1
  • 31000015516
    $13.63
    EL12LOMDA3C - 1000015516×1
  • 41000237176Not stocked
    minimess point×1
  • 51000299293Not stocked
    Hose×1
  • 61000170681
    $53.60
    EW 12 L 45�� - 1000170681×1
  • 71000085039
    $7.47
    RED18/12LOMDA3C - 1000085039×1
  • 81000015513Not stocked
    screw joint×1
  • 91000028235Not stocked
    lock piece×1
  • 101000050504Not stocked
    union nut×1
  • 111000085089
    $10.48
    EL10LOMDA3C - 1000085089×1
  • 121000015490Not stocked
    screw joint×1
  • 131000406847Not stocked
    Hose×1
  • 141000013022Not stocked
    hexagon nut×1
  • 151000048893Not stocked
    stud×1
  • 161000031245Not stocked
    cover plate×1
  • 171000124488
    $4.83
    CLAMP - 1000124488×1
