TH955

TH955(416-36) Cycle opt. Diagram

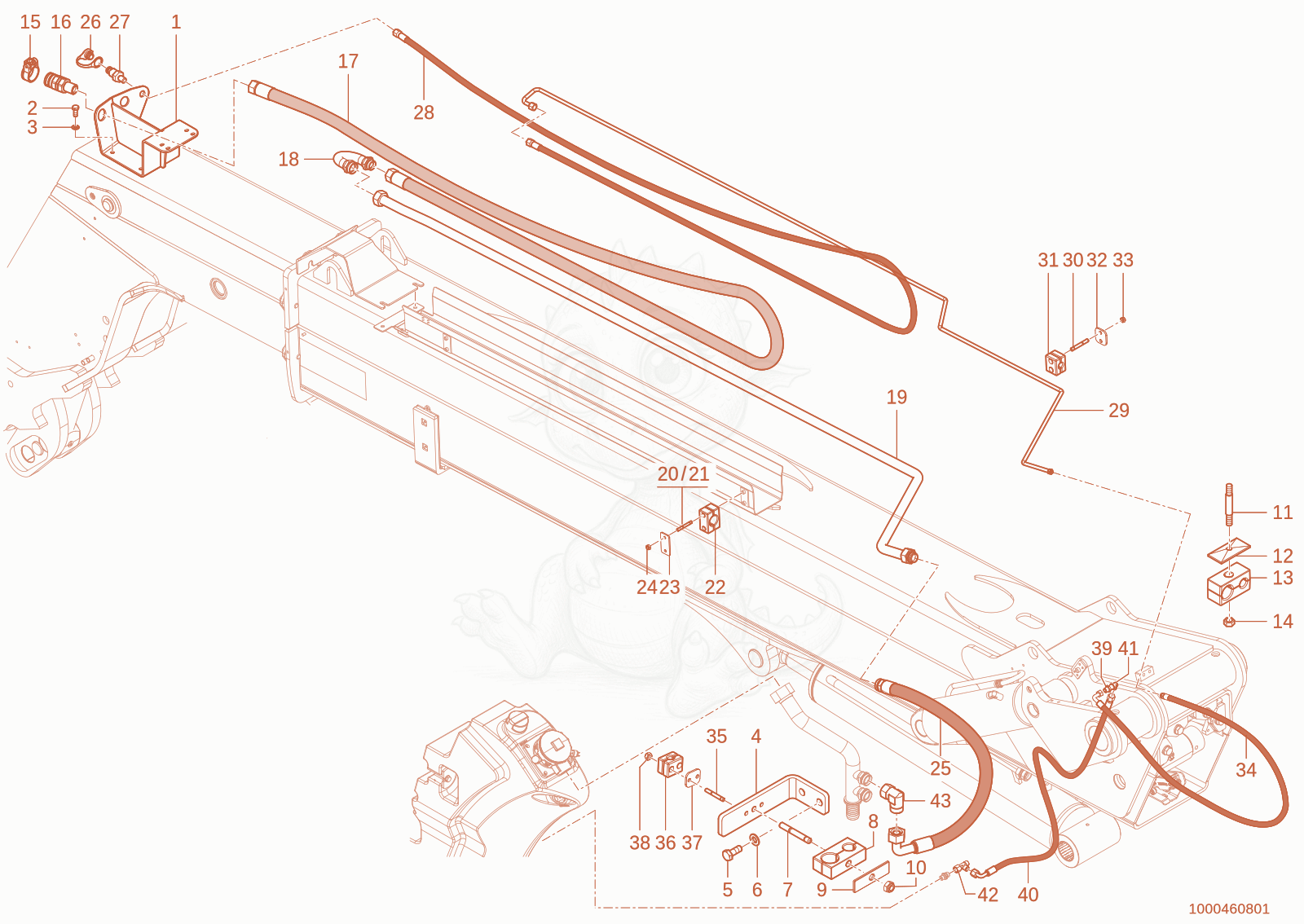

Exploded parts diagram of the Cycle opt. of a Wacker Neuson TH955(416-36), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000289736Not stocked
    bracket×1
  • 21000015431Not stocked
    washer×4
  • 31000013008Not stocked
    hex screw×4
  • 41000286180Not stocked
    bracket×1
  • 51000019136Not stocked
    hex screw×4
  • 61000015431Not stocked
    washer×2
  • 71000048896Not stocked
    stud×1
  • 81000100563
    $6.51
    Clamp - 1000100563×1
  • 91000031631Not stocked
    cover plate×1
  • 101000013022Not stocked
    hexagon nut×1
  • 111000048892Not stocked
    stud×1
  • 121000031295
    $5.37
    CLAMP - 1000031295×1
  • 131000031245Not stocked
    cover plate×1
  • 141000013022Not stocked
    hexagon nut×1
  • 151000105790
    $28.38
    Cover Bg 3 blau - 1000105790×1
  • 161000101123
    $128.64
    Coupling socket - 1000101123×1
  • 171000299033Not stocked
    Hose×1
  • 181000278675Not stocked
    hydraulic pipe×1
  • 191000299077Not stocked
    pipe line×1
  • 201000048886
    $3.16
    STUD - 1000048886×4
  • 211000048887
    $1.31
    STUD - 1000048887×4
  • 221000031124
    $4.90
    CLAMP - 1000031124×4
  • 231000031685Not stocked
    cover plate×4
  • 241000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×8
  • 251000301961Not stocked
    Hose×1
  • 261000020861Not stocked
    dust cap×1
  • 271000000563
    $49.30
    QUICK LOCK COUPLING - 1000000563×1
  • 281000299032Not stocked
    Hose×1
  • 291000299075Not stocked
    pipe line×1
  • 301000048884Not stocked
    stud×8
  • 311000031251Not stocked
    clamp×4
  • 321000031397Not stocked
    cover plate×4
  • 331000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×8
  • 341000301960Not stocked
    Hose×1
  • 351000048884Not stocked
    stud×2
  • 361000031602
    $3.52
    CLAMP - 1000031602×1
  • 371000031260Not stocked
    cover plate×1
  • 381000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 391000274881
    $41.51
    SV10-LOMDA3C - 1000274881×1
  • 401000300532Not stocked
    Hose×1
  • 411000015510Not stocked
    screw joint×1
  • 421000085089
    $10.48
    EL10LOMDA3C - 1000085089×1
  • 431000085091
    $31.25
    EW28LOMDA3C - 1000085091×1
