VP1035R-VIBROPLATE

VP1035R Drive cpl. Diagram

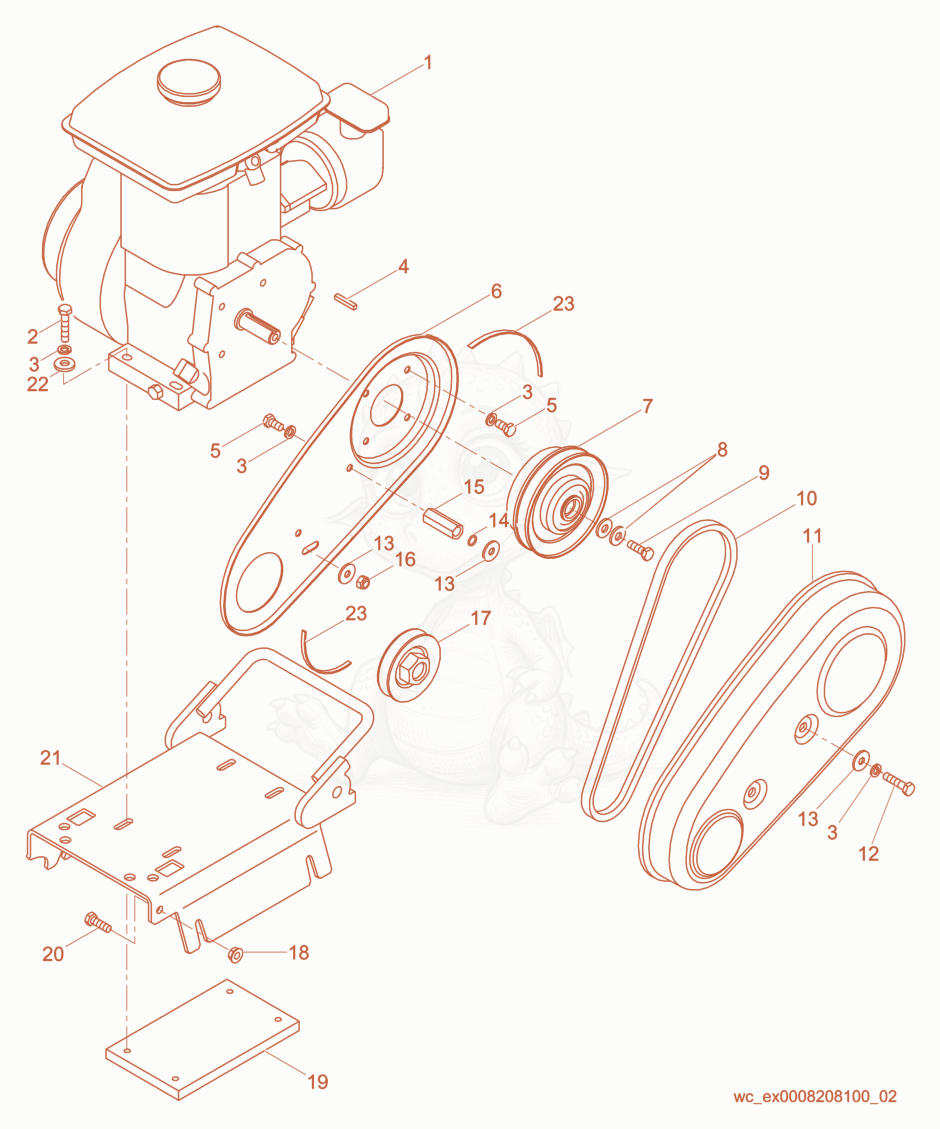

Exploded parts diagram of the Drive cpl. of a Wacker Neuson VP1035R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000114168Not stocked
    Robin engine×1
  • 25000011342
    $0.42
    SCREW M8 X 45 HX.HD. - 5000011342×4
  • 35000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×12
  • 45000013838
    $3.01
    KEY A5 X 5 X 30 FORM A - 5000013838×1
  • 55000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×6
  • 65000115052
    $80.18
    BELTGUARD-BACK - 5000115052×1
  • 75000114176Not stocked
    Centrifugal clutch×1
  • 85000025636
    $0.04
    WASHER 5/16 NOM,ST,FLAT - 5000025636×2
  • 95000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 105000114178
    $7.95
    BELT-V A30 - 5000114178×1
  • 115000114174
    $225.92
    BELTGUARD-FRONT - 5000114174×1
  • 125000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 135000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×5
  • 145000089385
    $0.22
    O-RING 3/8X1/16-70 SHORE A - 5000089385×2
  • 155000114762
    $12.43
    MOUNT-BELTGUARD - 5000114762×2
  • 165000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×1
  • 175000114177Not stocked
    Pulley×1
  • 185000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 195000114763
    $81.05
    CONSOLE-BAR - 5000114763×1
  • 205000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×1
  • 215000119503Not stocked
    Console×1
  • 225000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×4
  • 235000116305
    $27.51
    Rubber Trim - 5000116305×1
