VP1035R-VIBROPLATE

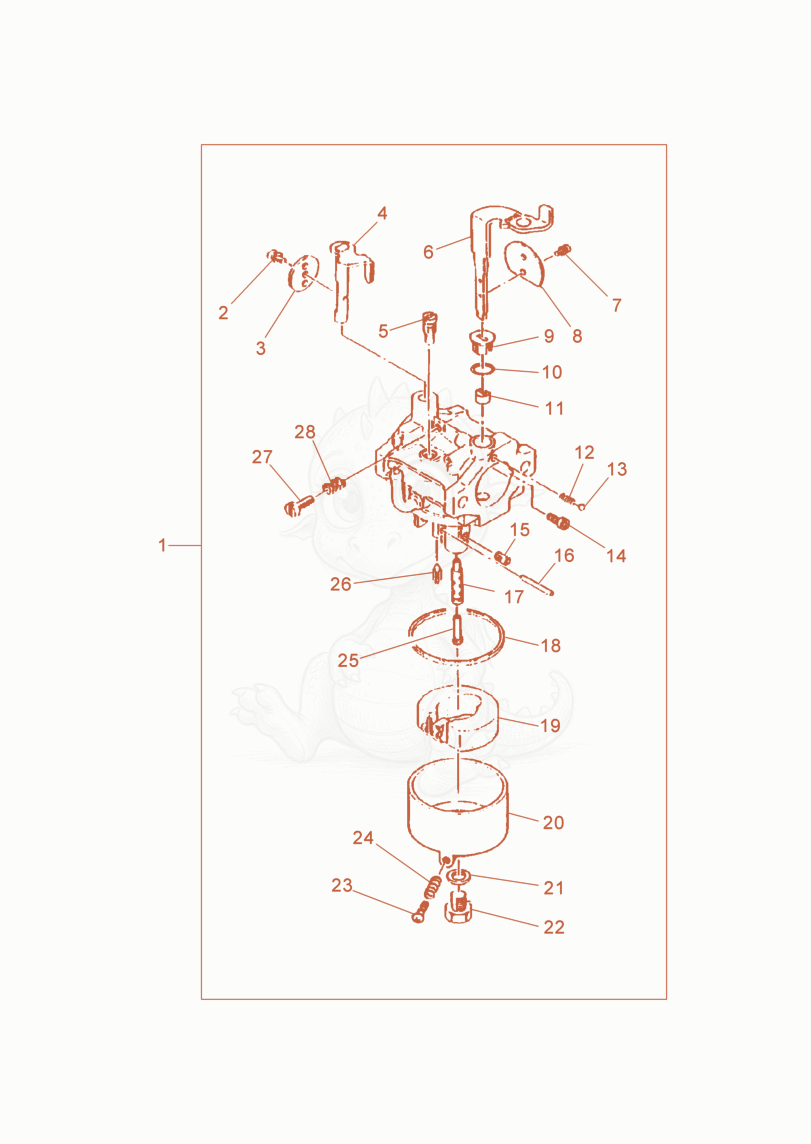

VP1035R Carburetor cpl. Diagram

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson VP1035R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000053683
    $184.60
    NLA CARBURETOR-MIKUNI 15-3022 - 5000053683×1
  • 25000053702
    $3.23
    Screw - 5000053702×1
  • 35000053697
    $17.59
    VALVE-THROTTLE CONTROL - 5000053697×1
  • 45000053698
    $82.89
    SHAFT ASSEMBLY - 5000053698×1
  • 55000115766Not stocked
    Pilot jet×1
  • 65000088470
    $102.47
    SHAFT-CHOKE - 5000088470×1
  • 75000088471Not stocked
    Screw×2
  • 85000053692Not stocked
    Valve×1
  • 95000053696Not stocked
    Insert×1
  • 105000115767
    $6.80
    SEAL - 5000115767×1
  • 115000053695
    $5.93
    INSERT-SLOTTED,NYLON - 5000053695×1
  • 125000044827
    $2.15
    spring - 5000044827×1
  • 135000044828
    $2.46
    BALL-STEEL - 5000044828×1
  • 145000115768
    $16.08
    JET-AIR - 5000115768×1
  • 155000053690Not stocked
    Main jet×1
  • 165000053686
    $6.26
    PIN-CARBURETOR FLOAT PIVOT - 5000053686×1
  • 175000115769
    $61.12
    JET-NOZZLE - 5000115769×1
  • 185000053684
    $9.89
    GASKET-FLOAT CHAMBER - 5000053684×1
  • 195000077416
    $59.98
    FLOAT-ASSEMBLY - 5000077416×1
  • 205000115770
    $95.16
    BOWL-FLOAT CHAMBER - 5000115770×1
  • 215000053688
    $1.41
    Gasket - 5000053688×1
  • 225000115771
    $24.75
    BOWL-FLOAT CHAMBER - 5000115771×1
  • 235000115772
    $12.84
    Screw - 5000115772×1
  • 245000053699
    $7.84
    Spring - 5000053699×1
  • 255000115773
    $87.32
    GUIDE-NOZZLE - 5000115773×1
  • 265000151199
    $56.91
    NEEDLE-VALVE - 5000151199×1
  • 275000088475
    $3.19
    SCREW-THROTTLE STOP - 5000088475×1
  • 285000053699
    $7.84
    Spring - 5000053699×1
