VP1035R-VIBROPLATE

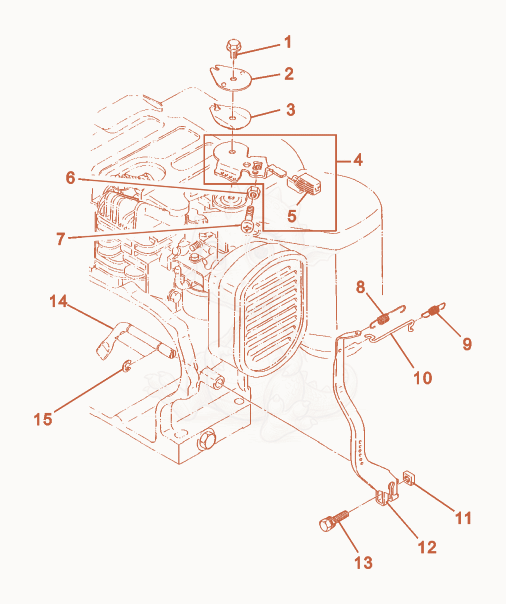

VP1035R Governor Diagram

Exploded parts diagram of the Governor of a Wacker Neuson VP1035R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000053648
    $2.65
    SCREW M6 X 14,HEX.FLANGE - 5000053648×1
  • 25000053647Not stocked
    Plate×1
  • 35000053646
    $2.94
    WASHER-LOCK - 5000053646×1
  • 45000053643
    $53.25
    SET-GOVERNOR CONTROL LEVER - 5000053643×1
  • 55000053645
    $38.43
    KNOB - 5000053645×1
  • 65000053650
    $0.58
    NUT M6,HEX - 5000053650×1
  • 75000053649
    $0.45
    SCREW M6 X 30,PAN.HD. - 5000053649×1
  • 85000115753
    $9.66
    SPRING-GOVERNOR - 5000115753×1
  • 95000053641
    $3.05
    SPRING-GOVERNOR CONTROL ROD - 5000053641×1
  • 105000053640
    $10.12
    ROD-GOVERNOR CONTROL - 5000053640×1
  • 115000077396Not stocked
    Nut×1
  • 125000053635
    $78.53
    LEVER-GOVERNOR CONTROL - 5000053635×1
  • 135000077397Not stocked
    Screw w/washer×1
  • 145000053638
    $28.47
    SHAFT-ENGINE GOVERNOR - 5000053638×1
  • 155000053639
    $0.26
    RET.RING-EXT 6MM,E-TYP - 5000053639×2
