VP1035R-VIBROPLATE

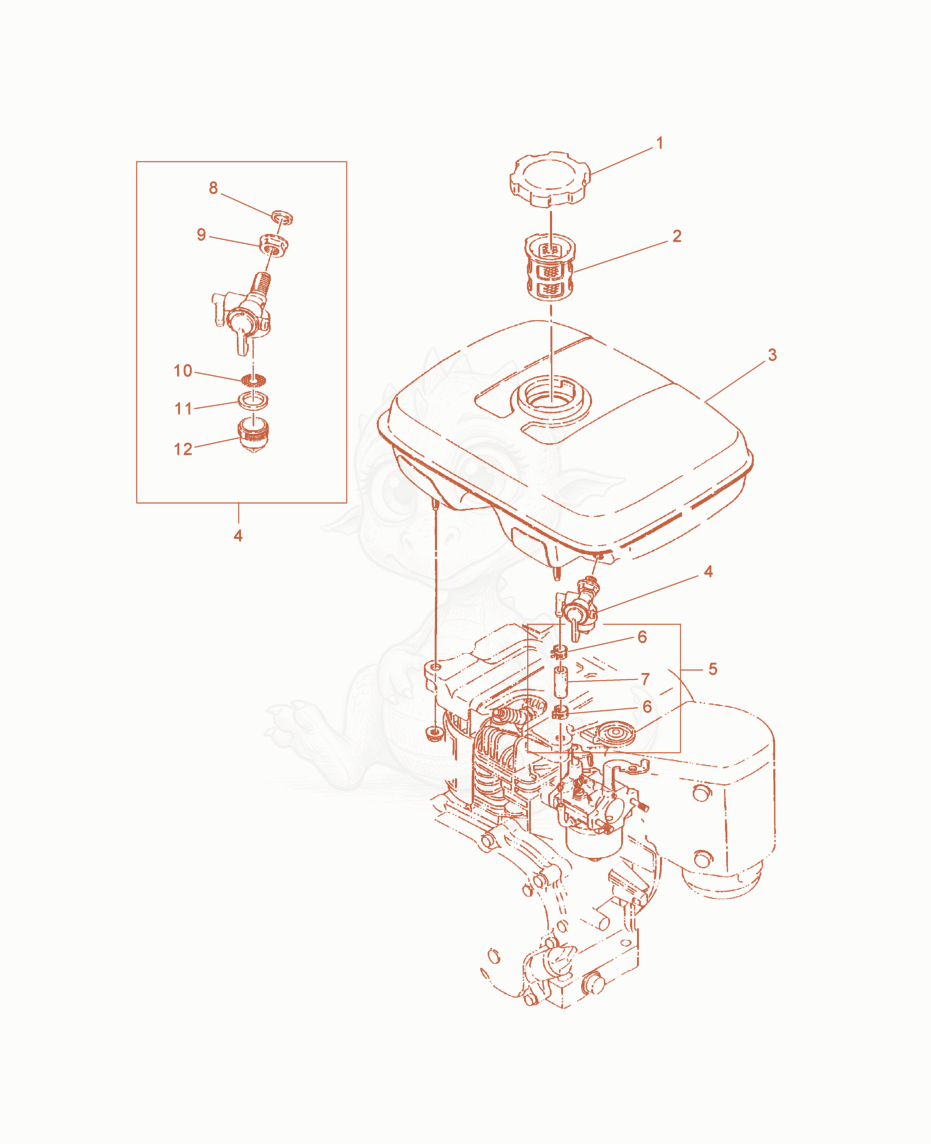

VP1035R Fuel Tank cpl. Diagram

Exploded parts diagram of the Fuel Tank cpl. of a Wacker Neuson VP1035R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000054784Not stocked
    Tank cover×1
  • 25000053660
    $8.13
    FILTER-ENGINE FUEL - 5000053660×1
  • 35000078045
    $182.68
    TANK-FUEL - 5000078045×1
  • 45000078046
    $34.20
    VALVE-FUEL SHUTOFF,M12 THREADS - 5000078046×1
  • 55000078047
    $3.82
    HOSE 6 X 57MM,FUEL LINE - 5000078047×1
  • 65000075269
    $1.57
    clamp - 5000075269×2
  • 75000084387
    $33.91
    PIPE-RUBBER - 5000084387×1
  • 85000075265
    $1.57
    GASKET - 5000075265×1
  • 95000075266
    $4.77
    NUT 1/2X28,HEX.FLANGE - 5000075266×1
  • 105000115763
    $4.02
    FILTER-FUEL VALVE - 5000115763×1
  • 115000084381Not stocked
    Gasket×1
  • 125000115764
    $6.36
    STRAINER-FUEL - 5000115764×1
