WL95

WL95(R90-02) nutrients Diagram

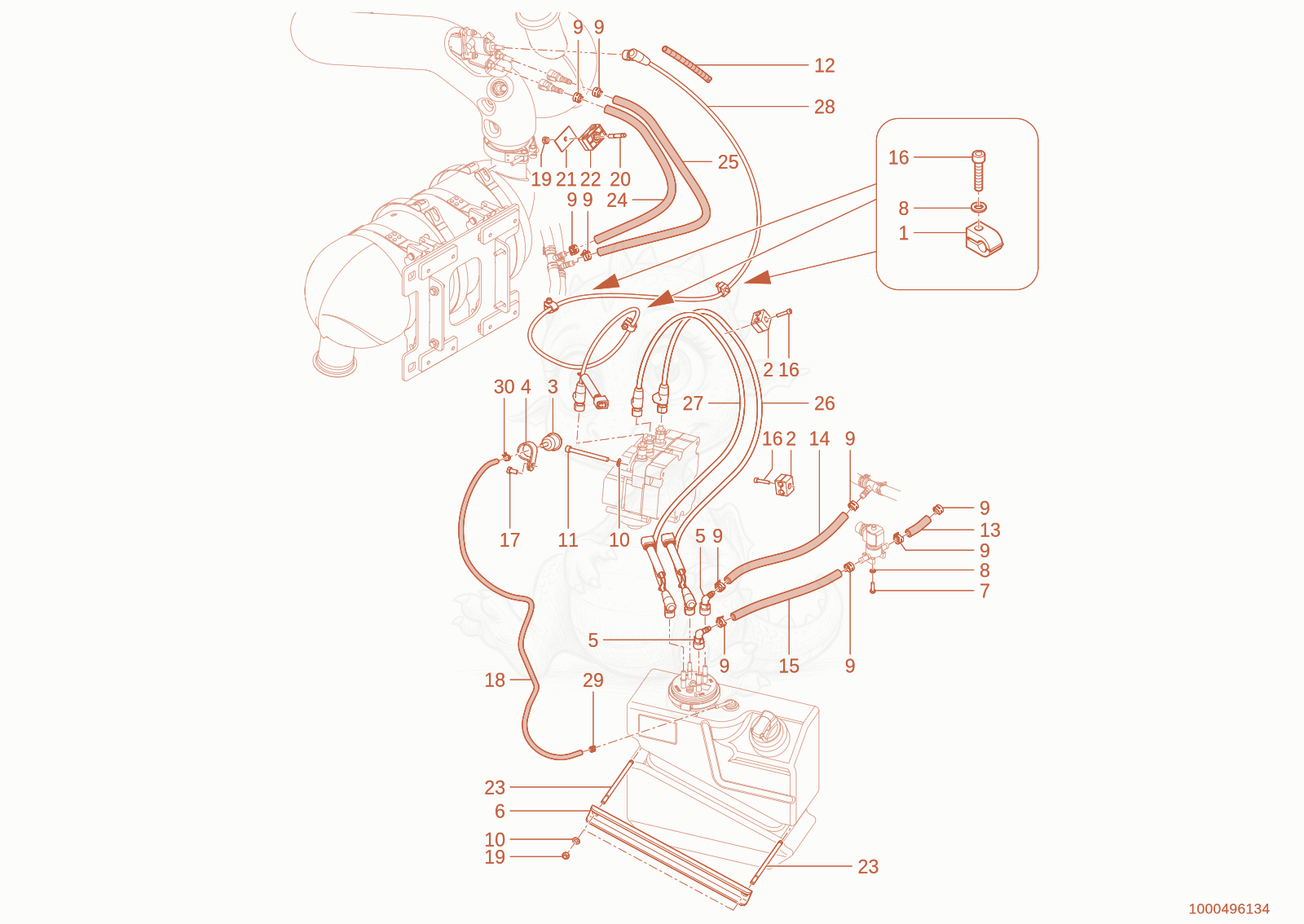

Exploded parts diagram of the nutrients of a Wacker Neuson WL95(R90-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000100561
    $328.19
    clamp - 1000100561×3
  • 21000052647
    $3.89
    CLAMP - 1000052647×2
  • 31000000412Not stocked
    fuel filter×1
  • 41000031926
    $7.06
    CLAMP - 1000031926×1
  • 51000338935Not stocked
    connection piece×2
  • 61000367248
    $62.24
    Strip - 1000367248×1
  • 71000018400Not stocked
    hex screw×4
  • 81000092290
    $0.74
    WASHER - 1000092290×11
  • 91000282350
    $6.86
    clamp - 1000282350×10
  • 101000015431Not stocked
    washer×5
  • 111000048175
    $4.41
    CHEESE HEAD SCREW - 1000048175×3
  • 121000386620Not stocked
    winder pipe×0.3
  • 131000331219Not stocked
    heater hose×0.08
  • 141000331219Not stocked
    heater hose×0.39
  • 151000331219Not stocked
    heater hose×0.3
  • 161000015369Not stocked
    cheese head screw×5
  • 171000019136Not stocked
    hex screw×1
  • 181000161484
    $13.10
    Hose - 1000161484×1.077
  • 191000013022Not stocked
    hexagon nut×3
  • 201000048892Not stocked
    stud×1
  • 211000031230Not stocked
    cover plate×1
  • 221000311927
    $9.83
    clamp - 1000311927×1
  • 231000374144
    $38.20
    STUD - 1000374144×2
  • 241000331219Not stocked
    heater hose×0.8
  • 251000331219Not stocked
    heater hose×0.8
  • 261000400510Not stocked
    hose×1
  • 271000400511Not stocked
    hose×1
  • 281000380868Not stocked
    hose×1
  • 291000315550
    $2.56
    clamp - 1000315550×1
  • 301000290073
    $2.17
    Clamp 9,5/7 - 1000290073×1
