WL95

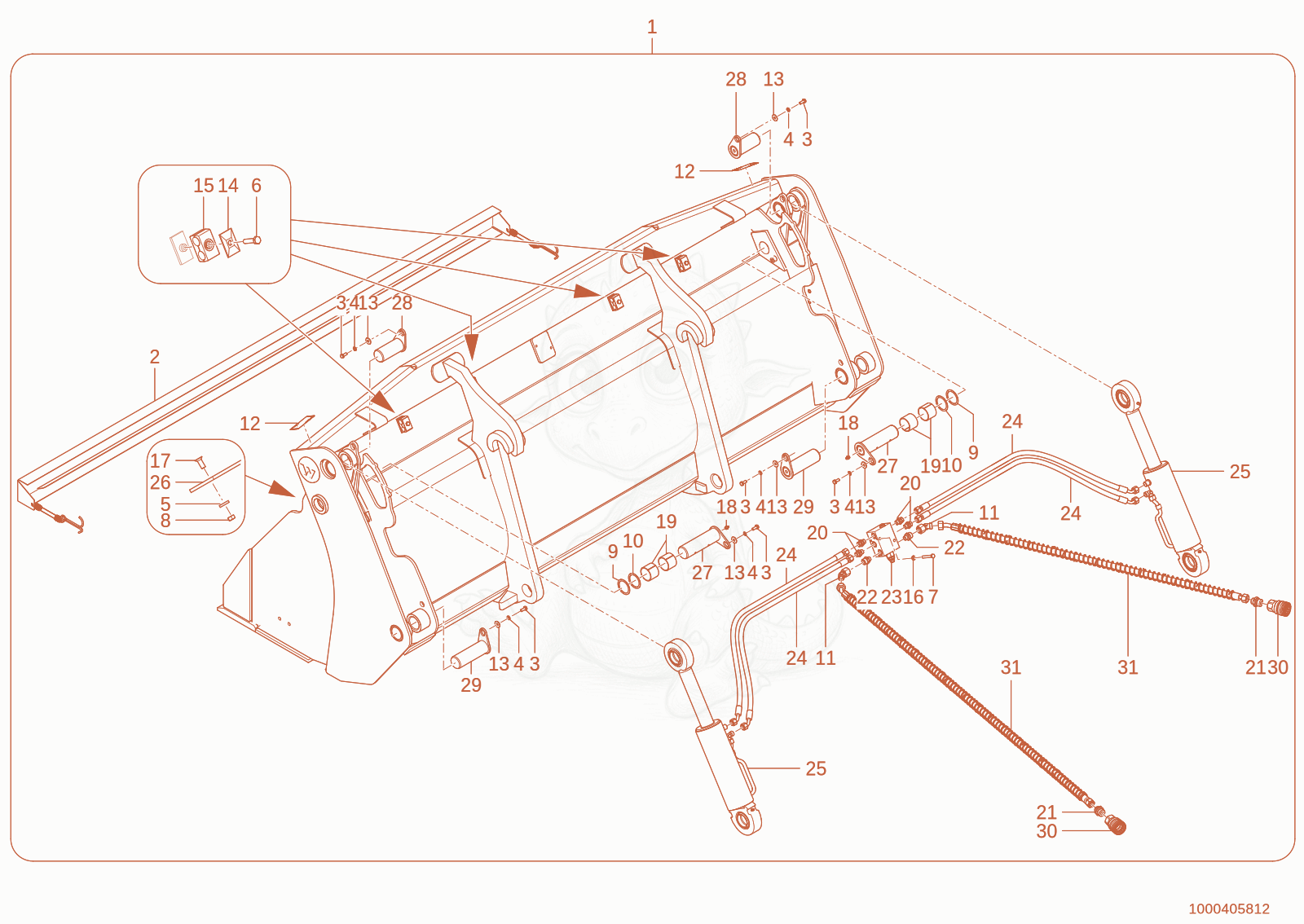

WL95(R90-02) bucket Diagram
- 11000397124Not stocked4/1 Bucket with teeths 2500mm TPV-1,45m³×1
- 21000396858Not stockedtooth protection×1
- 31000015342Not stockedhex screw×6
- spring washer - 1000082617×6
- spring washer - 1000082633×10
- hex screw - 1000085316×4
- 6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
- HEXAGON NUT - 1000085583×10
- fitting disc - 1000092322×4
- FITTING DISC - 1000092365×4
- EV15LOMDA3C - 1000180503×2
- STICKER 'SECURITY' - 1000183258×2
- 131000013027Not stockedwasher×6
- cover plate - 1000222622×4
- CLAMPING JAWS - 1000222625×4
- Washer - 1000222819×2
- COUNTERSUNK SCREW - 1000222827×10
- grease nipple - 1000050469×2
- slide bearing - 1000224690×4
- GES12L/M16X1,5 GRAD.EINSCHR.ST - 1000226157×4
- GES15L/R 3/4" GRAD.EINSCHR.ST. - 1000226163×2
- GES15L/M16X1,5 GRAD.EINSCHR.ST - 1000226241×2
- X-1000054452 Pressure Reduction Valve - 1000266871×1
- 241000311644Not stockedHose×4
- 251000357071Not stockedtilt ram×2
- 261000359234Not stockedwear out rail×1
- pin - 1000359395×2
- pin - 1000359399×2
- pin - 1000359400×2
- 301000361183Not stockedplug coupling×2
- 311000361198Not stockedHose×2
