WL95

WL95(R90-02) Engine bedding Diagram

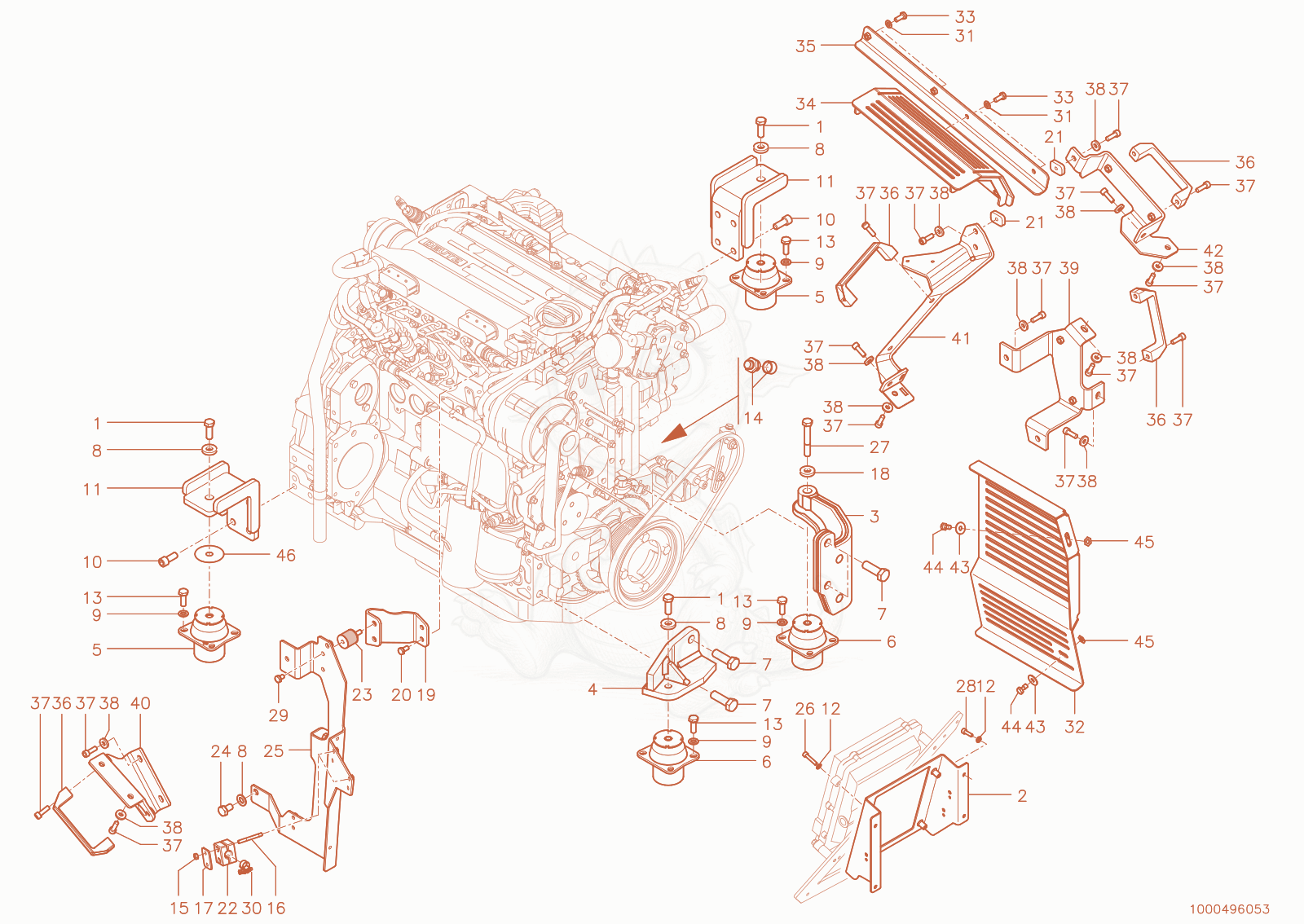

Exploded parts diagram of the Engine bedding of a Wacker Neuson WL95(R90-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000047789Not stocked
    hex screw×3
  • 21000399734Not stocked
    bracket×1
  • 31000438282Not stocked
    engine support×1
  • 41000358267Not stocked
    engine support×1
  • 51000261733Not stocked
    hydro.bearing×2
  • 61000261731Not stocked
    hydro.bearing×2
  • 71000015404Not stocked
    hex screw×4
  • 81000049219Not stocked
    washer×4
  • 91000092291Not stocked
    washer×16
  • 101000085474Not stocked
    cheese head screw×8
  • 111000278796Not stocked
    Engine bedding×2
  • 121000092290Not stocked
    washer×4
  • 131000015345Not stocked
    hex screw×16
  • 141000028095Not stocked
    drain coupling×1
  • 151000085588Not stocked
    hexagon nut×4
  • 161000048885Not stocked
    stud×4
  • 171000031260Not stocked
    cover plate×2
  • 181000085610Not stocked
    washer×1
  • 191000374772Not stocked
    bracket×1
  • 201000019136Not stocked
    hex screw×2
  • 211000401671Not stocked
    plate×3
  • 221000032051Not stocked
    clamp×2
  • 231000307669Not stocked
    rubber buffer×2
  • 241000085417Not stocked
    hex screw×1
  • 251000472466Not stocked
    bracket×1
  • 261000015369Not stocked
    cheese head screw×4
  • 271000047395Not stocked
    hex screw×1
  • 281000085456Not stocked
    cheese head screw×4
  • 291000085389Not stocked
    hex screw×3
  • 301000368665Not stocked
    clamp×1
  • 311000015431Not stocked
    washer×5
  • 321000385362Not stocked
    protection plate×1
  • 331000013008Not stocked
    hex screw×5
  • 341000385310Not stocked
    PROTECTION×1
  • 351000385303Not stocked
    bracket×1
  • 361000387535Not stocked
    handle×4
  • 371000022386Not stocked
    cheese head screw×22
  • 381000095341Not stocked
    washer×15
  • 391000389091Not stocked
    bracket×1
  • 401000389093Not stocked
    bracket×1
  • 411000401675
    $490.96
    Bracket - 1000401675×1
  • 421000401674
    $235.05
    Bracket - 1000401674×1
  • 431000013027Not stocked
    washer×2
  • 441000247652
    $14.49
    Screw - 1000247652×2
  • 451000247655
    $3.64
    lock plate - 1000247655×2
  • 461000099801
    $3.70
    DISC - 1000099801×1
