WL95

WL95(R90-02) tools Diagram

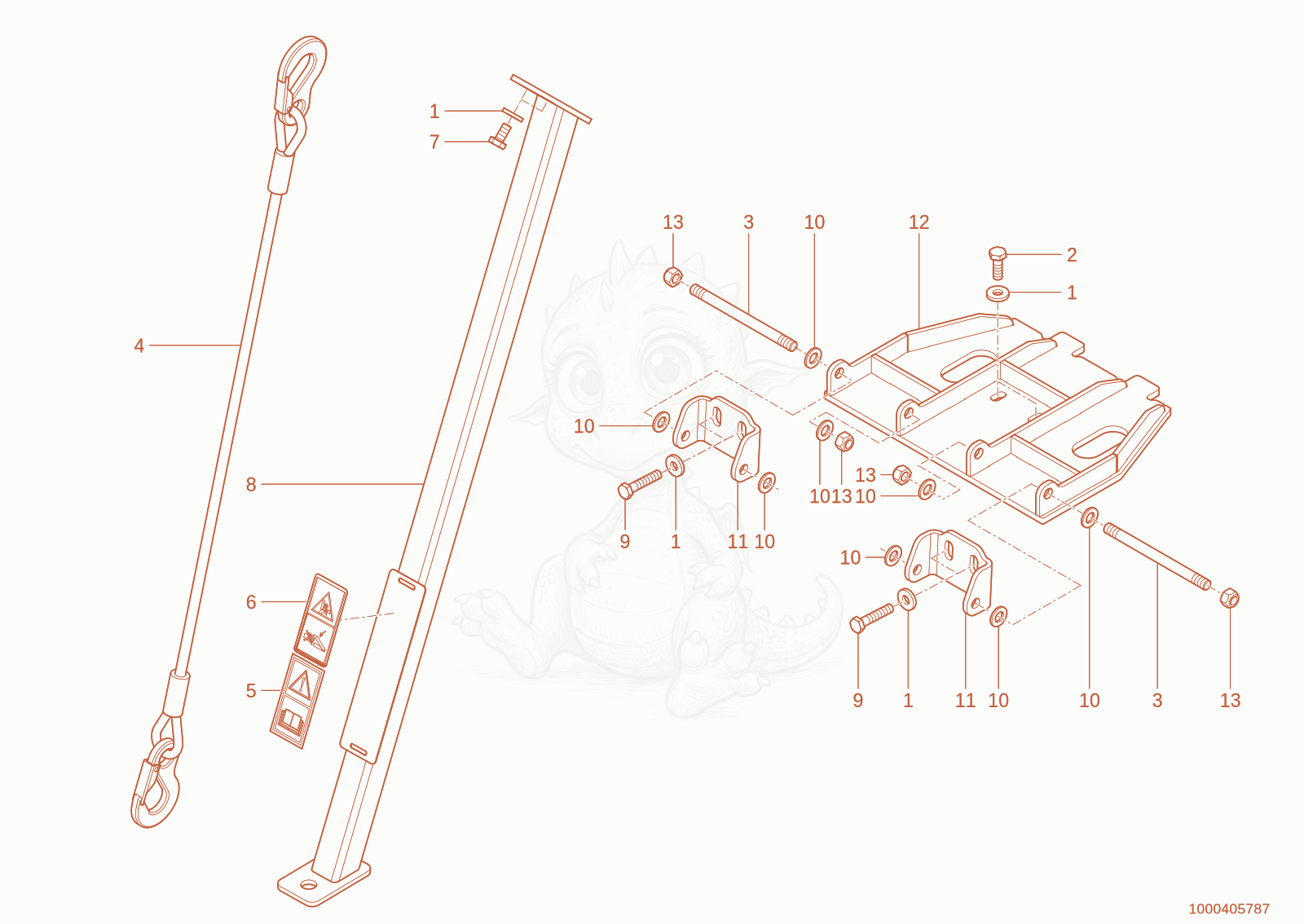

Exploded parts diagram of the tools of a Wacker Neuson WL95(R90-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000049278Not stocked
    washer×8
  • 21000015364Not stocked
    hex screw×2
  • 31000409748
    $52.35
    PIN - 1000409748×2
  • 41000396664Not stocked
    catch rope×1
  • 51000183272
    $18.73
    STICKER - 1000183272×1
  • 61000183258
    $7.97
    STICKER 'SECURITY' - 1000183258×1
  • 71000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 81000386820
    $146.53
    bar - 1000386820×1
  • 91000085414
    $0.98
    hex screw - 1000085414×4
  • 101000049219Not stocked
    washer×8
  • 111000378119Not stocked
    mounting×2
  • 121000378120
    $268.07
    mounting - 1000378120×1
  • 131000019657
    $3.09
    HEXAGON NUT - 1000019657×4
