EW100

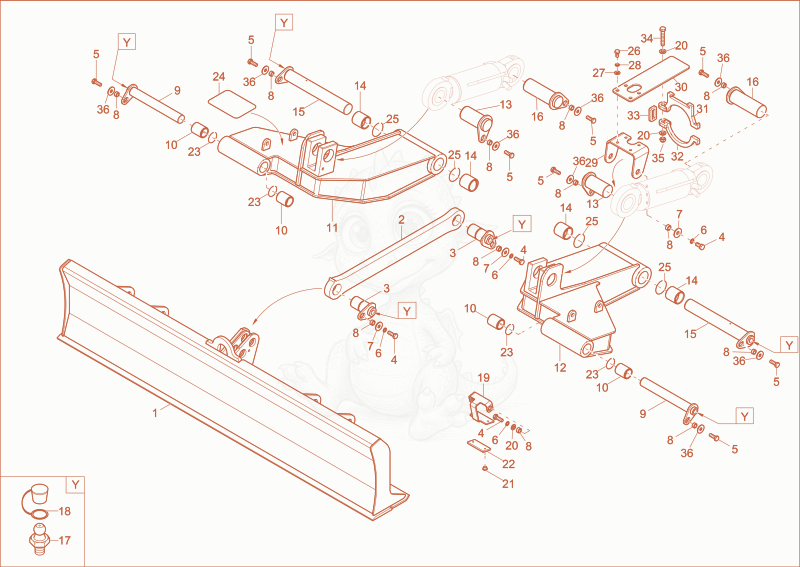

Despiece de DOZER BLADE rear (OPTION) · EW100

11000308704No la vendemos
dozer blade×1
21000157142
$338.54
Rod 1000157142×1
31000157077
$88.79
Pin 1000157077×2
41000085418
$9.74
hex screw - 1000085418×10
51000085418
$9.74
hex screw - 1000085418×8
61000082609
$0.73
lock washer - 1000082609×10
71000085613
$0.10
washer - 1000085613×6
81000157155
$4.52
WASHER - 1000157155×18
91000157074
$147.54
Pin 1000157074×2
101000015612No la vendemos
steel bushing×4
111000308705No la vendemos
Stabilizers right×1
121000308707No la vendemos
Stabilizers left×1
131000180162
$134.51
PIN - 1000180162×2
141000015604No la vendemos
steel bushing×4
151000157151
$188.43
PIN - 1000157151×2
161000157072
$318.88
PIN - 1000157072×2
171000015476No la vendemos
grease nipple×6
181000015480No la vendemos
cap grease nipple×6
191000157144
$51.62
bracket reflector - 1000157144×2
201000049219No la vendemos
washer×8
211000082697
$0.80
blind rivet A3x12 - 1000082697×4
221000004320
$1.60
REFLECTOR - 1000004320×2
231000021601No la vendemos
lock ring×4
241000180128
$92.33
antislide covering - 1000180128×3
251000015467No la vendemos
lock ring×4
261000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×8
271000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×8
281000015438No la vendemos
lock washer×8
291000179339
$47.39
Joint 1000179339×2
301000339796
$140.75
COVER - 1000339796×2
311000339491
$18.62
clamp - 1000339491×2
321000339493
$15.91
clamp - 1000339493×2
331000339492
$4.49
CLAMP - 1000339492×2
341000085373
$1.51
hex screw - 1000085373×2
351000020127No la vendemos
hexagon nut×2
361000085610
$0.43
WASHER - 1000085610×8
