EW100

Despiece de controllever carrier · EW100

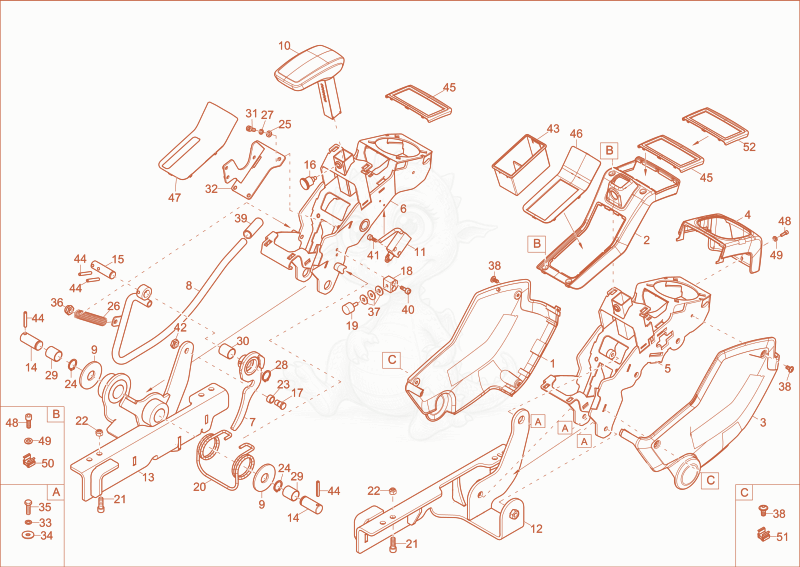

Despiece del controllever carrier de una máquina Wacker Neuson EW100, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000248074
    $93.71
    cover left - 1000248074×2
  • 21000248072
    $17.68
    trim x--1000319136 - 1000248072×2
  • 31000248073
    $46.44
    cover right - 1000248073×2
  • 41000248075
    $23.72
    trim - 1000248075×2
  • 51000274377
    $267.89
    Frameright 1000274377×1
  • 61000274379
    $494.60
    Frameleft 1000274379×1
  • 71000247990
    $58.36
    lever left - 1000247990×1
  • 81000247992
    $104.56
    lever right - 1000247992×1
  • 91000247987
    $3.83
    end washer - 1000247987×2
  • 101000374480No la vendemos
    arm rest×2
  • 111000247989
    $102.83
    end switch - 1000247989×1
  • 121000258605
    $139.19
    Console 1000258605×1
  • 131000258610
    $315.23
    Console 1000258610×1
  • 141000247954
    $13.54
    pin DM=20x47 - 1000247954×2
  • 151000247955
    $18.07
    pin DM=16x57 - 1000247955×1
  • 161000247956
    $27.90
    pin detent - 1000247956×2
  • 171000254944
    $7.93
    pin - 1000254944×1
  • 181000247984
    $24.32
    bracket rupper buffer - 1000247984×1
  • 191000247997
    $3.14
    metal-rubber buffer - 1000247997×1
  • 201000247988
    $20.75
    spring 4,5x56 - 1000247988×1
  • 211000022386No la vendemos
    cheese head screw×8
  • 221000082590
    $0.78
    lock nut - 1000082590×8
  • 231000254945
    $9.30
    roller - 1000254945×1
  • 241000095358
    $1.34
    lock ring 20x1,2 - 1000095358×4
  • 251000015430No la vendemos
    u-washer×4
  • 261000247991
    $9.66
    tension spring - 1000247991×1
  • 271000015436No la vendemos
    lock washer×4
  • 281000085631
    $0.86
    lock ring 16x1 - 1000085631×2
  • 291000247959
    $4.36
    slide bearing 20x23x25 - 1000247959×2
  • 301000247957
    $2.35
    slide bearing 16x18x20 - 1000247957×1
  • 311000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×4
  • 321000249539
    $67.30
    CONSOLE - 1000249539×1
  • 331000015437No la vendemos
    lock washer×3
  • 341000013027No la vendemos
    washer×3
  • 351000013008No la vendemos
    hex screw×3
  • 361000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 371000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×3
  • 381000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×10
  • 391000248836
    $3.52
    handle protection - 1000248836×1
  • 401000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 411000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
  • 421000256268
    $1.11
    nut M10x1,25 A2C-DIN439 - 1000256268×1
  • 431000248085
    $42.09
    board - 1000248085×1
  • 441000082719
    $0.73
    cotter pin 5x36 - 1000082719×4
  • 451000248077
    $9.17
    insert - 1000248077×2
  • 461000248081
    $69.09
    insert - 1000248081×1
  • 471000248079
    $23.66
    insert - 1000248079×1
  • 481000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×10
  • 491000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×10
  • 501000094953
    $0.75
    Korgmutter M5 3,6-4,5 - 1000094953×8
  • 511000094952
    $0.75
    cage nut M6 2,6-3,5 - 1000094952×4
  • 521000294099
    $31.89
    insert - 1000294099×1
