EW100

Despiece de chassis · EW100

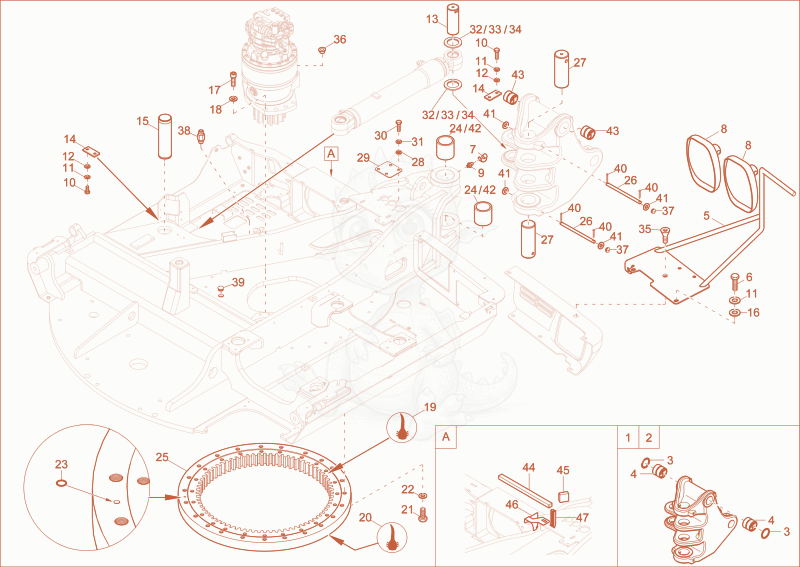

Despiece del chassis de una máquina Wacker Neuson EW100, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000362322
    $5,430.65
    swivel console premounted - 1000362322×1
  • 21000362324No la vendemos
    swivel console premounted×1
  • 31000083593
    $16.70
    pin gasket - 1000083593×2
  • 41000083202
    $35.61
    steel bushing - 1000083202×2
  • 51000392711No la vendemos
    mirror bracket×1
  • 61000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 71000015480No la vendemos
    cap grease nipple×2
  • 81000264124
    $82.20
    mirror - 1000264124×2
  • 91000015476No la vendemos
    grease nipple×2
  • 101000015348No la vendemos
    hex screw×4
  • 111000015438No la vendemos
    lock washer×6
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 131000167444
    $181.18
    Pin 1000167444×1
  • 141000115114
    $36.12
    bracket axle - 1000115114×2
  • 151000117039
    $258.86
    Pin 1000117039×1
  • 161000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 171000321680No la vendemos
    socket cap screw×6
  • 181000015451No la vendemos
    northlock disc×6
  • 191000097244
    $54.76
    gasket slewing gear - 1000097244×2.8
  • 201000097244
    $54.76
    gasket slewing gear - 1000097244×2.8
  • 211000082284
    $2.51
    hex screw - 1000082284×30
  • 221000426233No la vendemos
    lock washer×30
  • 231000095054
    $1.38
    O-RING - 1000095054×1
  • 241000019027No la vendemos
    steel bushing×2
  • 251000391491
    $7,703.72
    slewing ring EZ80, ET90, EW100 - 1000391491×1
  • 261000404219No la vendemos
    pin×2
  • 271000115090
    $125.36
    Pin 1000115090×2
  • 281000049219No la vendemos
    washer×4
  • 291000127933
    $75.82
    cover plate - 1000127933×1
  • 301000085418
    $9.74
    hex screw - 1000085418×4
  • 311000082609
    $0.73
    lock washer - 1000082609×4
  • 321000130087
    $2.99
    shim - 1000130087×1
  • 331000130086
    $3.64
    shim - 1000130086×1
  • 341000130085
    $4.41
    shim - 1000130085×1
  • 351000099338
    $1.34
    COUNTERSUNK SCREW - 1000099338×1
  • 361000186938
    $1.80
    PLUG - 1000186938×2
  • 371000301727
    $2.05
    PVC Plug D25 - 1000301727×2
  • 381000370383No la vendemos
    extension×1
  • 391000157917
    $4.29
    COVER - 1000157917×1
  • 401000013045
    $0.70
    COTTERPIN - 1000013045×4
  • 411000082679
    $0.75
    Washer M16-DIN134 - 1000082679×4
  • 421000307679No la vendemos
    steel bushing×2
  • 431000316324No la vendemos
    steel bushing×2
  • 441000450748No la vendemos
    insulating mat×1
  • 451000450747No la vendemos
    insulating mat×1
  • 461000450750
    $34.02
    PLATE - 1000450750×1
  • 471000098198
    $19.56
    RUBBER PROFILE - 1000098198×0.2
