EW100

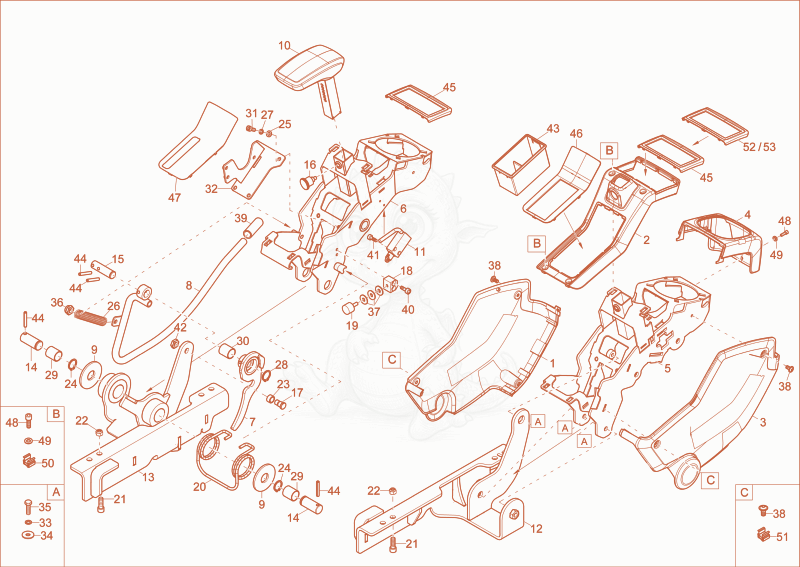

Despiece de controllever carrier · EW100
- cover left - 1000248074×2
- 21000319136No la vendemostrim×2
- cover right - 1000248073×2
- 41000319137No la vendemostrim×2
- Frameright 1000274377×1
- Frameleft 1000274379×1
- lever left - 1000247990×1
- lever right - 1000247992×1
- end washer - 1000247987×2
- 101000374480No la vendemosarm rest×2
- end switch - 1000247989×1
- Console 1000258605×1
- Console 1000258610×1
- pin DM=20x47 - 1000247954×2
- pin DM=16x57 - 1000247955×1
- pin detent - 1000247956×2
- pin - 1000254944×1
- bracket rupper buffer - 1000247984×1
- metal-rubber buffer - 1000247997×1
- spring 4,5x56 - 1000247988×1
- 211000022386No la vendemoscheese head screw×8
- lock nut - 1000082590×8
- roller - 1000254945×1
- lock ring 20x1,2 - 1000095358×4
- 251000015430No la vendemosu-washer×4
- tension spring - 1000247991×1
- 271000015436No la vendemoslock washer×4
- lock ring 16x1 - 1000085631×2
- slide bearing 20x23x25 - 1000247959×2
- slide bearing 16x18x20 - 1000247957×1
- allen screw M6x16-8.8 A2C - 1000085455×4
- CONSOLE - 1000249539×1
- 331000015437No la vendemoslock washer×3
- 341000013027No la vendemoswasher×3
- 351000013008No la vendemoshex screw×3
- DIN985-M8-8-A2C - 1000015416×1
- washer A 6,4 St A2C DIN9021 - 1000095343×3
- screw M6x12 ISO7380-2 - 1000165459×10
- handle protection - 1000248836×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
- allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
- nut M10x1,25 A2C-DIN439 - 1000256268×1
- board - 1000248085×1
- cotter pin 5x36 - 1000082719×4
- 451000319131No la vendemosinsert×2
- insert - 1000319134×1
- 471000319132No la vendemosinsert×1
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×10
- washer A 5,3 A2C DIN125 - 1000094962×10
- Korgmutter M5 3,6-4,5 - 1000094953×8
- cage nut M6 2,6-3,5 - 1000094952×4
- insert - 1000321427×1
- insert - 1000396082×1
