Neuson 1403RD

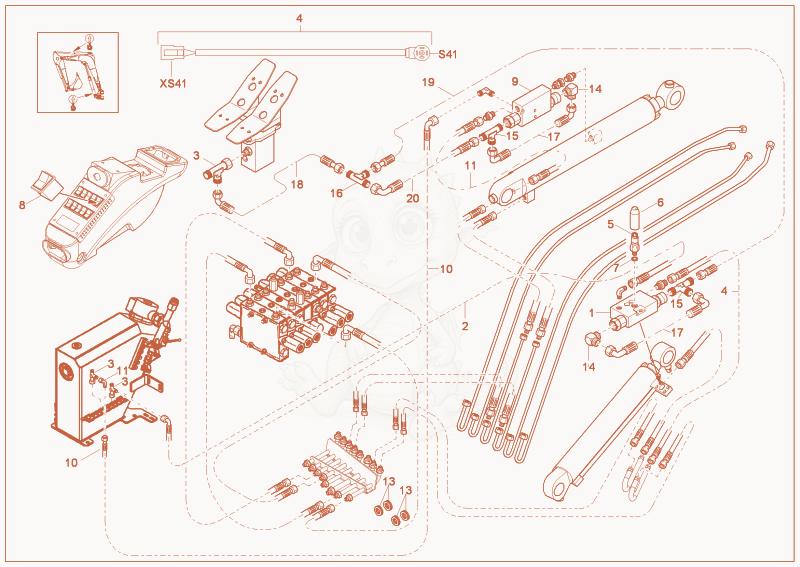

1403RD STALLING LOAD - WARNING DEVICE F(OPTION) Diagram

Exploded parts diagram of the STALLING LOAD - WARNING DEVICE F(OPTION) of a Wacker Neuson 1403RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000239323Not stocked
    hose burst valve×1
  • 21000076378
    $103.81
    SLHYDR 1SCP6,0PN8 0 PN8 90 L4250 0 - 1000076378×1
  • 31000015515Not stocked
    screw joint×3
  • 41000245140
    $182.46
    cable overloadwarning - 1000245140×1
  • 51000015301Not stocked
    pressure switch×1
  • 61000018610Not stocked
    protecting cap×1
  • 71000124948
    $12.46
    screw seal - 1000124948×1
  • 81000069056Not stocked
    switch overload warning×1
  • 91000239324Not stocked
    hose burst valve×1
  • 101000076379Not stocked
    Hose×1
  • 111000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 121000112940Not stocked
    Hose×1
  • 131000081814
    $6.53
    Grommet 16/20/28-2 - 1000081814×4
  • 141000245005
    $16.28
    WE06LMOMD - 1000245005×2
  • 151000245003
    $103.44
    LEE06LMOMD - 1000245003×2
  • 161000015534Not stocked
    screw joint×1
  • 171000244329Not stocked
    Hose×2
  • 181000076406
    $15.77
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1500 0 - 1000076406×1
  • 191000244333Not stocked
    Hose×1
  • 201000244332Not stocked
    Hose×1
  • S411000245870
    $37.47
    socket - 1000245870×1
  • XS411000081808
    $16.43
    pin housing - 1000081808×1
