Neuson 1403RD

1403RD lift arm Diagram

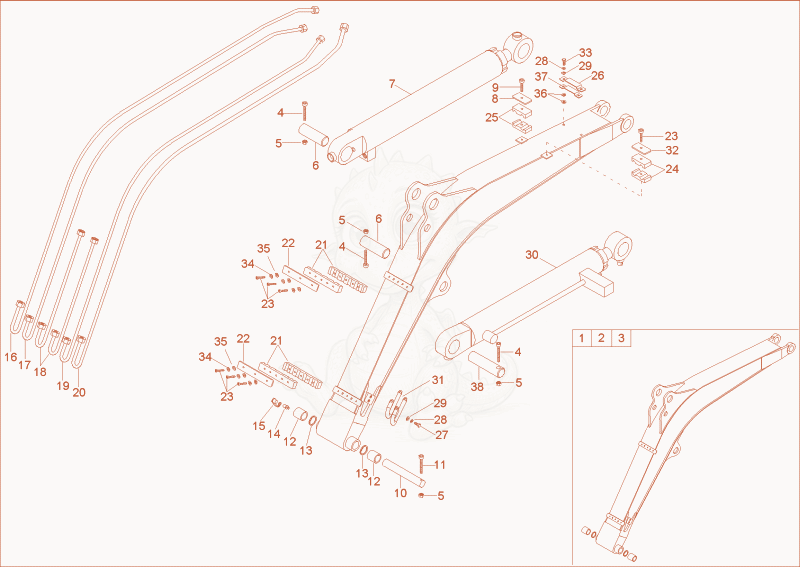

Exploded parts diagram of the lift arm of a Wacker Neuson 1403RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000109714Not stocked
    lift arm×1
  • 21000113078Not stocked
    lift arm×1
  • 31000168214Not stocked
    lift arm×1
  • 41000022334Not stocked
    hex screw×3
  • 51000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×4
  • 61000066472
    $47.03
    PIN - 1000066472×2
  • 71000022639Not stocked
    dipper arm cylinder×1
  • 81000015628Not stocked
    cover plate×1
  • 91000015340Not stocked
    hex screw×1
  • 101000066474Not stocked
    pin×1
  • 111000085466
    $0.90
    cheese head screw - 1000085466×1
  • 121000015610Not stocked
    steel bushing×2
  • 131000082752
    $0.95
    LOCK RING - 1000082752×2
  • 141000015475Not stocked
    grease nipple×1
  • 151000015480Not stocked
    cap grease nipple×1
  • 161000066401Not stocked
    pipe line×1
  • 171000066400Not stocked
    pipe line×1
  • 181000066398Not stocked
    pipe line×2
  • 191000066399Not stocked
    pipe line×1
  • 201000066402Not stocked
    pipe line×1
  • 211000067206Not stocked
    pipe clamp×2
  • 221000067205Not stocked
    cover plate×2
  • 231000085391
    $0.91
    hex screw - 1000085391×7
  • 241000083255
    $4.42
    CLAMP BODY - 1000083255×2
  • 251000015626Not stocked
    clamp body×2
  • 261000067204Not stocked
    clamp bar×1
  • 271000019136Not stocked
    hex screw×2
  • 281000015437Not stocked
    lock washer×4
  • 291000015431Not stocked
    washer×4
  • 301000022638Not stocked
    boom cylinder×1
  • 311000066386Not stocked
    intermediate piece×1
  • 321000022379Not stocked
    cover plate×1
  • 331000013008Not stocked
    hex screw×2
  • 341000015436Not stocked
    lock washer×6
  • 351000015430Not stocked
    washer×6
  • 361000013027Not stocked
    washer×4
  • 371000066352Not stocked
    lining×1
  • 381000022641
    $51.39
    PIN - 1000022641×1
