Neuson 1403RD

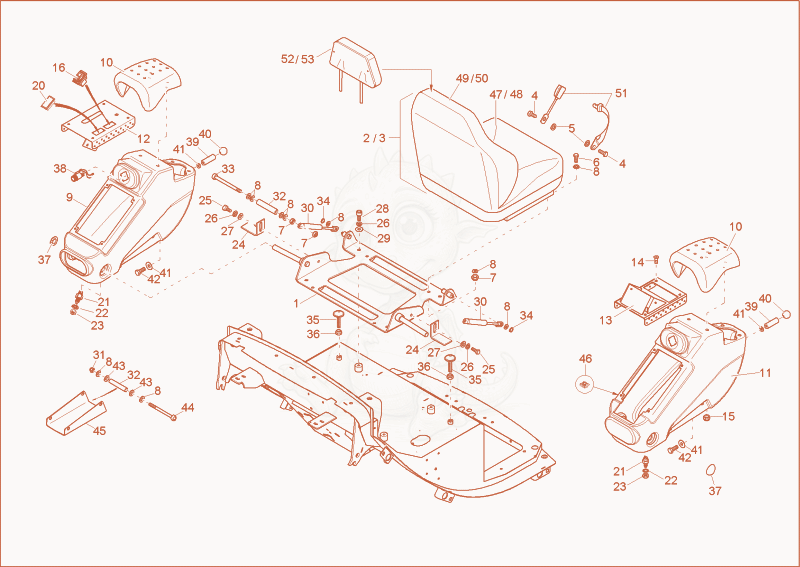

1403RD drivers seat Diagram
- 11000066159Not stockedconsole shifetlever support×1
- 21000021060Not stockeddrivers seat×1
- 31000066193Not stockeddrivers seat×1
- hex screw - 1000085418×2
- 51000049219Not stockedwasher×2
- 61000015343Not stockedhex screw×4
- DIN985-M8-8-A2C - 1000015416×8
- 81000015431Not stockedwasher×22
- 91000066190Not stockedcontrollever carrier×1
- 101000068894Not stockedarm rest×2
- 111000066191Not stockedcontrollever carrier×1
- console instruments - 1000102877×1
- 131000066169Not stockedconsole instruments×1
- countersunk screw - 1000085554×8
- lock nut - 1000082590×8
- switch accelerated speed - 1000069022×1
- 171000018400Not stockedhex screw×4
- 181000015436Not stockedlock washer×4
- washer A 6,4 St A2C DIN9021 - 1000095343×4
- 201000027006Not stockedblind cover×1
- MICRO SWITCH - 1000254987×2
- EDGED DISC - 1000082683×2
- hexagon nut - 1000082589×2
- 241000066148Not stockedshift angle×2
- 251000013009Not stockedhex screw×2
- 261000015438Not stockedlock washer×6
- Washer 10,5 St A2C - 1000092303×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- washer 10,5 A2C DIN125 - 1000015432×4
- gas strut - 1000248477×2
- 311000015414Not stockedhexagon nut×2
- pipe - 1000099251×4
- cheese head screw - 1000099331×2
- 341000019497Not stockedquick fastener×2
- 351000066513Not stockedheight adjuster×2
- 361000015407Not stockedhexagon nut×2
- 371000002895Not stockedclamp cap×2
- 381000069027Not stockedcigaret lighter×1
- 391000003904Not stockedhandle rod×2
- 401000015428Not stockedball button×2
- 411000015454Not stockedwasher×4
- 421000015401Not stockedhex screw×2
- 431000013027Not stockedwasher×4
- 441000015353Not stockedcheese head screw×2
- reinforce sheet - 1000099246×2
- NUT - 1000015420×8
- 471000107822Not stockedseat upholstery×1
- 481000101867Not stockedseat upholstery×1
- 491000107824Not stockedback cushion×1
- 501000101868Not stockedback cushion×1
- Lap belt - 1000128034×1
- 521000021920Not stockedheadrest×1
- 531000003938Not stockedheadrest×1
