Neuson 1403RD

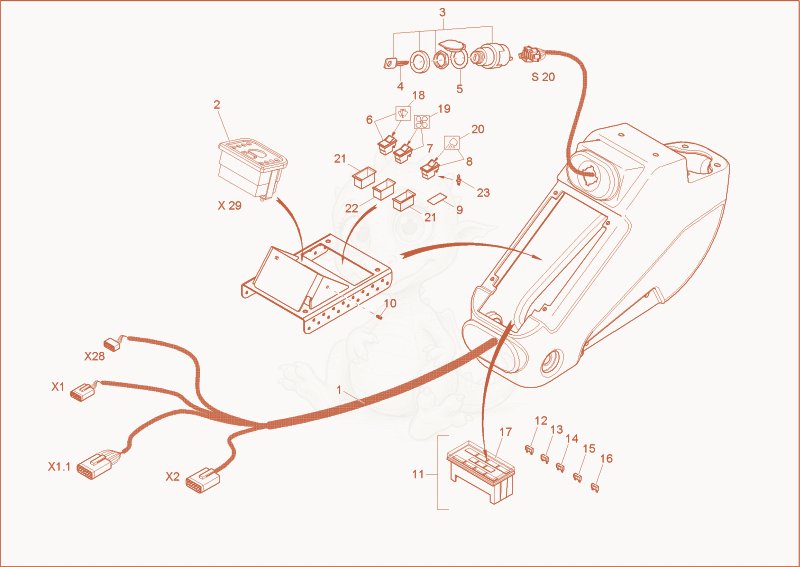

1403RD wiring harness armrest Diagram

Exploded parts diagram of the wiring harness armrest of a Wacker Neuson 1403RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000066293Not stocked
    wiring harness armrest×1
  • 21000066239Not stocked
    indicator instrument×1
  • 31000184001
    $125.82
    Ignition lock-R-1000125516 - 1000184001×1
  • 41000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 51000081684
    $9.74
    cover ignition lock - 1000081684×1
  • 61000069021Not stocked
    switch wiper×1
  • 71000022662
    $38.35
    switch - 1000022662×1
  • 81000004565Not stocked
    switch working light×1
  • 91000027006Not stocked
    blind cover×2
  • 101000082388
    $1.38
    thread pin - 1000082388×2
  • 111000001534Not stocked
    fuse box×1
  • 121000095374
    $0.85
    fuse - 1000095374×1
  • 131000085682
    $0.43
    fuse - 1000085682×1
  • 141000085683
    $0.55
    FUSE - 1000085683×1
  • 151000081695
    $0.52
    FUSE - 1000081695×1
  • 161000085684
    $0.63
    FUSE - 1000085684×1
  • 171000099373
    $35.35
    COVER FUSE BOX - 1000099373×1
  • 181000071882Not stocked
    symbol wiper×1
  • 191000071881Not stocked
    symbol heater×1
  • 201000081805
    $5.07
    SYMBOL WORKING LIGHT - 1000081805×1
  • 211000027168Not stocked
    switch frame×2
  • 221000027178Not stocked
    switch frame×3
  • 231000001518
    $6.65
    bulb - 1000001518×3
