Neuson 1403RD

1403RD diesel engine Diagram

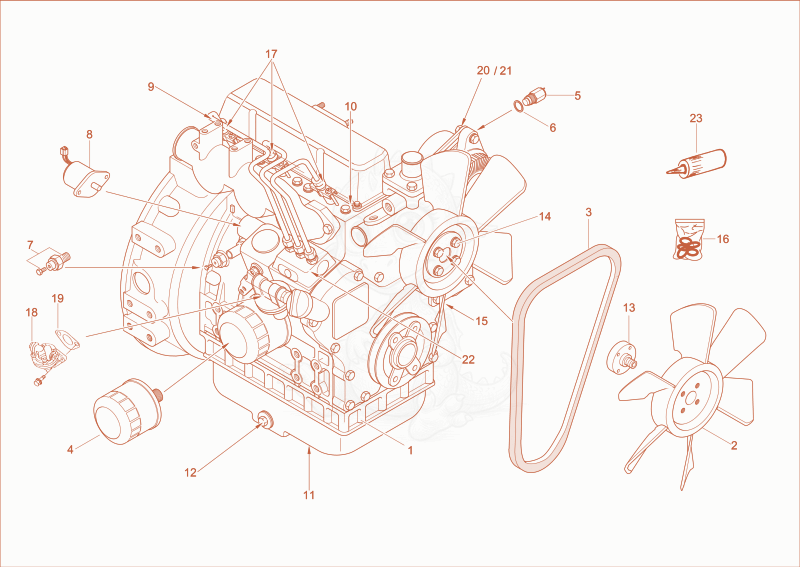

Exploded parts diagram of the diesel engine of a Wacker Neuson 1403RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000093176Not stocked
    diesel engine×1
  • 21000066328Not stocked
    ventilator fan×1
  • 31000003356Not stocked
    v-belt×1
  • 41000003052
    $15.94
    engine oilfilter - 1000003052×1
  • 51000003892Not stocked
    temperature switch×1
  • 61000002929Not stocked
    seal ring×1
  • 71000003891Not stocked
    oil pressure switch×1
  • 81000003887Not stocked
    shut off solenoid×1
  • 91000065537Not stocked
    cylinder head gasket×1
  • 101000003359Not stocked
    valve cover seal×1
  • 111000003358Not stocked
    oil sump×1
  • 121000003360Not stocked
    oildrain plug×1
  • 131000021058Not stocked
    spacer ventilator×1
  • 141000021059Not stocked
    hex screw×4
  • 151000002909Not stocked
    starter motor×1
  • 161000065829Not stocked
    seal kit diesel engine×1
  • 171000003357Not stocked
    injection nozzle×3
  • 181000002908Not stocked
    fuel pump×1
  • 191000002920Not stocked
    engine gasket×1
  • 201000003895
    $310.60
    GENERATOR - 1000003895×1
  • 211000325547Not stocked
    generator×1
  • 221000020768Not stocked
    injection pump×1
  • 231000064593Not stocked
    sealing compound×1
