SPARE PARTS LIST 4500/7002 SP

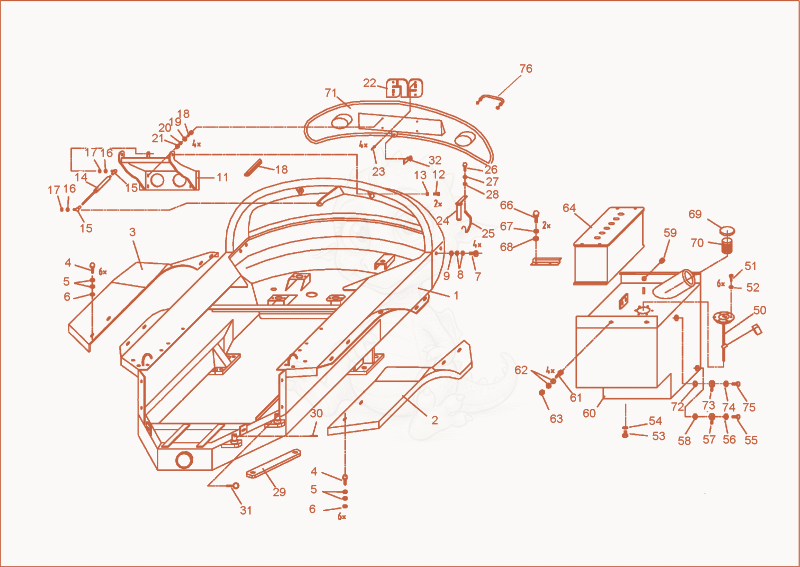

4500/7002 rear part Diagram

Exploded parts diagram of the rear part of a Wacker Neuson 4500/7002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000078730Not stocked
    rear frame×1
  • 21000078428Not stocked
    wheel cover×1
  • 31000078429Not stocked
    wheel cover×1
  • 41000015364Not stocked
    hex screw×12
  • 51000094974
    $0.70
    washer M10-DIN134 - 1000094974×24
  • 61000015407Not stocked
    hexagon nut×12
  • 71000085404
    $0.93
    hex screw - 1000085404×4
  • 81000085657
    $1.74
    COTTERPIN - 1000085657×4
  • 91000020788Not stocked
    hexagon nut×4
  • 101000017831Not stocked
    rubber profile×2
  • 111000078454Not stocked
    hinge×1
  • 121000085391
    $0.91
    hex screw - 1000085391×2
  • 131000015427Not stocked
    hexagon nut×2
  • 141000076258Not stocked
    gas strut×1
  • 151000015635
    $20.00
    BALL AND SOCKET - 1000015635×2
  • 161000015437Not stocked
    lock washer×2
  • 171000015427Not stocked
    hexagon nut×2
  • 181000082507Not stocked
    flat head screw×4
  • 191000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
  • 201000015444Not stocked
    spring washer×4
  • 211000015405Not stocked
    hexagon nut×4
  • 221000078495Not stocked
    characteristic×1
  • 231000095004Not stocked
    blind rivet×4
  • 241000065150Not stocked
    towing pin×1
  • 251000065207Not stocked
    chain×1
  • 261000018400Not stocked
    hex screw×1
  • 271000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×1
  • 281000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 291000013357Not stocked
    maintenance support×1
  • 301000085652
    $0.84
    cotter pin - 1000085652×1
  • 311000015457Not stocked
    cotter pin×1
  • 321000001853
    $43.12
    LOCK - 1000001853×1
  • 501000003878Not stocked
    fuel transmitter×1
  • 511000085546
    $0.74
    ovalhead screw - 1000085546×6
  • 521000085627
    $0.65
    SPRING WASHER - 1000085627×6
  • 531000082413
    $8.23
    LOCK SCREW - 1000082413×1
  • 541000083619Not stocked
    seal ring×1
  • 551000062415Not stocked
    banjo bolt×1
  • 561000085676
    $0.80
    seal ring - 1000085676×1
  • 571000062413Not stocked
    ring nipple×1
  • 581000083676
    $0.73
    SEAL RING - 1000083676×1
  • 591000062339Not stocked
    cable sleeve×1
  • 601000078725Not stocked
    fuel tank×1
  • 611000015346Not stocked
    hex screw×4
  • 621000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 631000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 641000301731
    $325.19
    Battery 1000301731×1
  • 651000001558Not stocked
    bracket battery×1
  • 661000018400Not stocked
    hex screw×2
  • 671000015444Not stocked
    spring washer×2
  • 681000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 691000001694Not stocked
    filler cap×1
  • 701000001695
    $23.15
    SCREEN - 1000001695×1
  • 711000017076Not stocked
    rear flap×1
  • 721000079404Not stocked
    seal ring×1
  • 731000062412Not stocked
    ring nipple×1
  • 741000085674
    $3.33
    SEAL RING - 1000085674×1
  • 751000062414Not stocked
    banjo bolt×1
  • 761000062638Not stocked
    handle×1
