SPARE PARTS LIST 4500/7002 SP

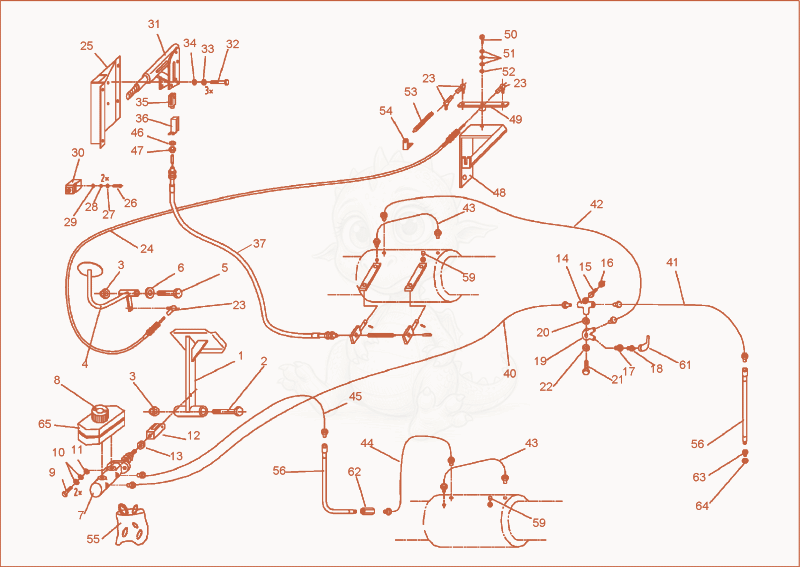

4500/7002 likage Diagram

Exploded parts diagram of the likage of a Wacker Neuson 4500/7002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000076192Not stocked
    brake pedal×1
  • 21000085343
    $7.29
    hex screw - 1000085343×1
  • 31000020788Not stocked
    hexagon nut×1
  • 41000076191Not stocked
    accelerator pedal×1
  • 51000085339
    $2.84
    hex screw - 1000085339×1
  • 61000082679
    $0.75
    Washer M16-DIN134 - 1000082679×1
  • 71000062552
    $179.32
    MASTERBRAKE CYLINDER - 1000062552×1
  • 81000021753Not stocked
    cover×1
  • 91000015364Not stocked
    hex screw×2
  • 101000062688Not stocked
    pressure spring×1
  • 111000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 121000001703
    $10.62
    FORK - 1000001703×1
  • 131000015407Not stocked
    hexagon nut×1
  • 141000001792Not stocked
    distributor×1
  • 151000079385
    $0.85
    hex screw M8x30-8.8 A2C-DIN933 - 1000079385×1
  • 161000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 171000062472Not stocked
    screwend piece×1
  • 181000001587Not stocked
    brake light switch×1
  • 191000001600Not stocked
    eye piece×1
  • 201000085676
    $0.80
    seal ring - 1000085676×1
  • 211000062329Not stocked
    banjo bolt×1
  • 221000019580Not stocked
    seal ring×1
  • 231000015636Not stocked
    ball and socket×1
  • 241000001856Not stocked
    bowden cable×1
  • 251000078529Not stocked
    angle f, handbrake×1
  • 261000082347
    $2.87
    OVALHEAD SCREW - 1000082347×2
  • 271000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×2
  • 281000085627
    $0.65
    SPRING WASHER - 1000085627×2
  • 291000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×2
  • 301000003238
    $60.31
    SWITCH - 1000003238×1
  • 311000001803Not stocked
    parking brake lever×1
  • 321000085413
    $1.20
    hex screw - 1000085413×3
  • 331000015438Not stocked
    lock washer×6
  • 341000015407Not stocked
    hexagon nut×3
  • 351000083334
    $3.11
    fork head - 1000083334×1
  • 361000013368Not stocked
    shift plate×1
  • 371000001829Not stocked
    bowden cable×1
  • 381000098172Not stocked
    articulation set×1
  • 391000085648
    $0.75
    cotter pin - 1000085648×2
  • 401000001963Not stocked
    brake line×1
  • 411000001964Not stocked
    brake line×1
  • 421000001959Not stocked
    brake line×1
  • 431000001968Not stocked
    brake line×2
  • 441000001966Not stocked
    brake line×1
  • 451000001962Not stocked
    brake line×1
  • 461000015448Not stocked
    washer×1
  • 471000015427Not stocked
    hexagon nut×1
  • 481000078391Not stocked
    bracket gas cable×1
  • 491000078390Not stocked
    accelerator lever×1
  • 501000021059Not stocked
    hex screw×1
  • 511000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×3
  • 521000015405Not stocked
    hexagon nut×1
  • 531000003252Not stocked
    tension spring×1
  • 541000078761Not stocked
    bracket pneumatic spring×1
  • 551000001794Not stocked
    SEAL KIT×1
  • 561000001599Not stocked
    brake hose×2
  • 591000001598Not stocked
    rubber cap×1
  • 611000081683
    $6.71
    protecting cap starter cable - 1000081683×1
  • 621000062323Not stocked
    intermediate piece×1
  • 631000062677Not stocked
    screwend piece×1
  • 641000085675
    $0.75
    SEAL RING - 1000085675×1
  • 651000017666Not stocked
    brake fluid container×1
