SPARE PARTS LIST 4500/7002 SP

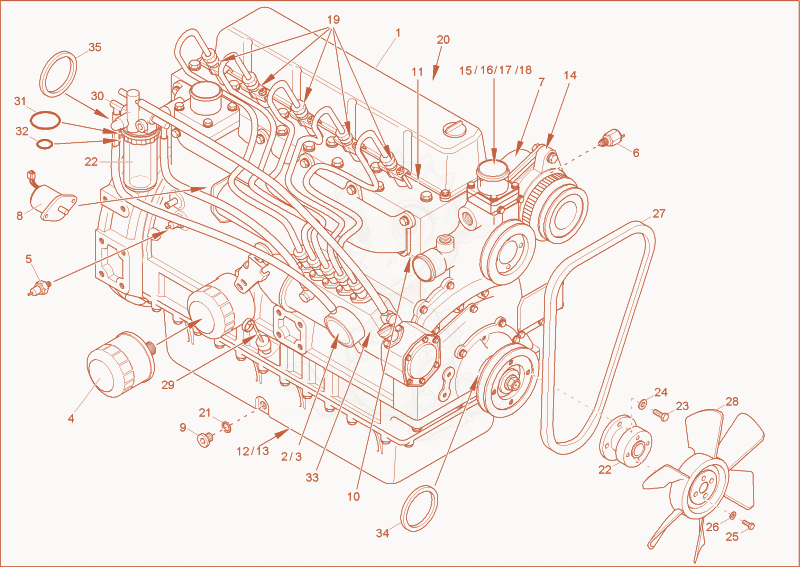

4500/7002 diesel engine Diagram
- 11000065599Not stockeddiesel engine×1
- 21000026885Not stockedengine gasket×1
- 31000109052Not stockedfuel pump×1
- ENGINE OIL FILTER - 1000004570×1
- 51000004613Not stockedoil pressure switch×1
- 61000019535Not stockedtemperature switch×1
- 71000075105Not stockedgenerator×1
- shut off solenoid - 1000018585×1
- DRAIN SCREW - 1000084919×1
- 101000109051Not stockedcylinder head gasket×1
- 111000003739Not stockedvalve cover seal×1
- 121000109050Not stockedoil sump×1
- 131000181968Not stockedoil sump gasket×1
- 141000085259Not stockedclamp bar×1
- 151000019510Not stockedwater pump×1
- 161000026887Not stockedseal water pump×1
- THERMOSTAT - 1000022166×1
- 181000026886Not stockedgasket thermostat×1
- 191000076239Not stockedinjection nozzle×5
- 201000003738Not stockedstarter motor×1
- 211000085151Not stockedseal ring×1
- 221000001012Not stockedfilter insert×1
- 231000019511Not stockedhex screw×4
- 241000015449Not stockednorthlock disc×4
- 251000013008Not stockedhex screw×4
- Nord-Lock disc NL8 - 1000094995×4
- 271000003737Not stockedv-belt×1
- 281000004883Not stockedblower×1
- 291000116042Not stockedoil dip stick×1
- 301000019509Not stockedfuel filter×1
- 311000000358Not stockedo-ring×1
- 321000001307Not stockedo-ring×1
- 331000026882Not stockedinjection pump×1
- 341000156760Not stockedshaft seal×1
- 351000184611Not stockedshaft seal×1
