SPARE PARTS LIST 4500/7002 SP

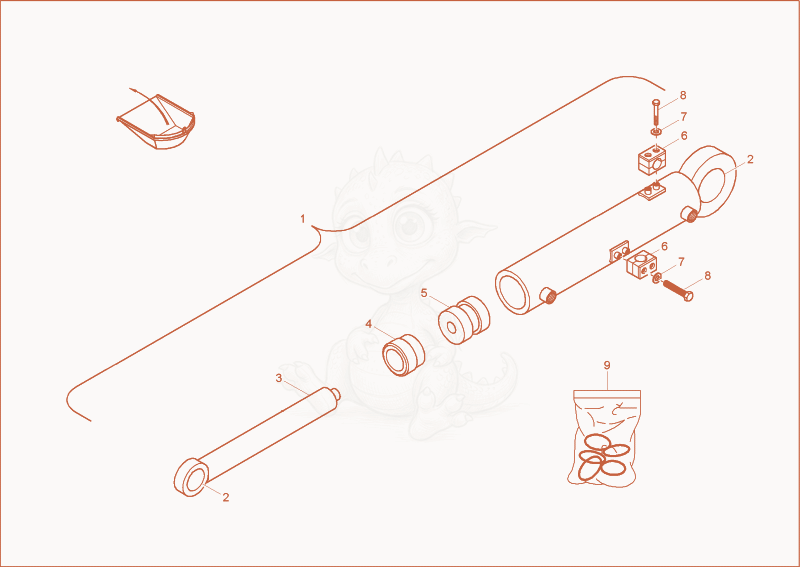

4500/7002 tilt ram Diagram

Exploded parts diagram of the tilt ram of a Wacker Neuson 4500/7002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000062422Not stocked
    tilt ram×1
  • 21000076248Not stocked
    pivoting bearing×2
  • 31000076249Not stocked
    piston rod×1
  • 41000104585
    $792.85
    guide bushing - 1000104585×1
  • 51000065095
    $201.65
    PISTON - 1000065095×1
  • 61000022327Not stocked
    clamp body×4
  • 71000015444Not stocked
    spring washer×4
  • 81000015366Not stocked
    hex screw×4
  • 91000001868Not stocked
    cylinder seal kit×1
