SPARE PARTS LIST 4500/7002 SP

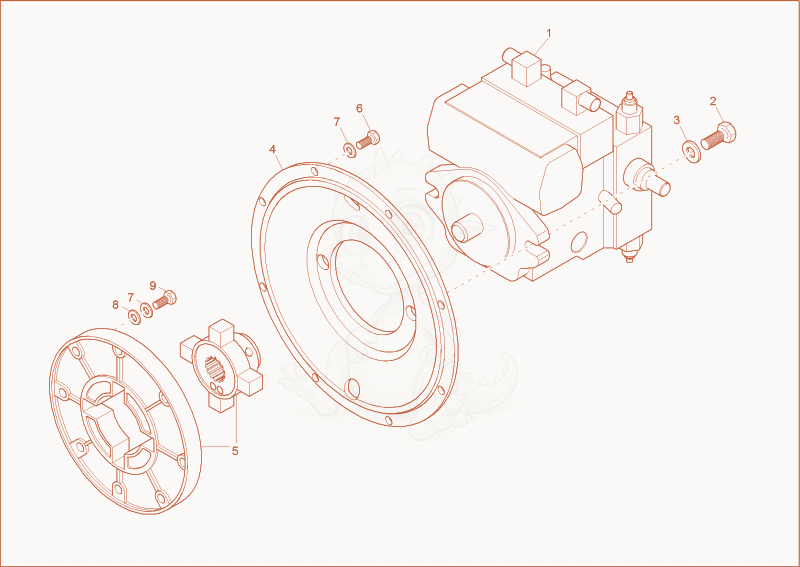

4500/7002 HYDRAULIC PUMP DRIVE Diagram

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson 4500/7002, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000062564Not stocked
    displacement pump×1
  • 21000085401
    $3.30
    hex screw - 1000085401×2
  • 31000094994
    $3.70
    nordock washer NL16x30,7 - 1000094994×2
  • 41000062563Not stocked
    flange×1
  • 51000062562Not stocked
    coupling×1
  • 61000082488Not stocked
    hex screw×10
  • 71000015438Not stocked
    lock washer×18
  • 81000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 91000082489Not stocked
    cheese head screw×8
