Neuson 6002RD
6002RD Parts Diagrams
150 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.

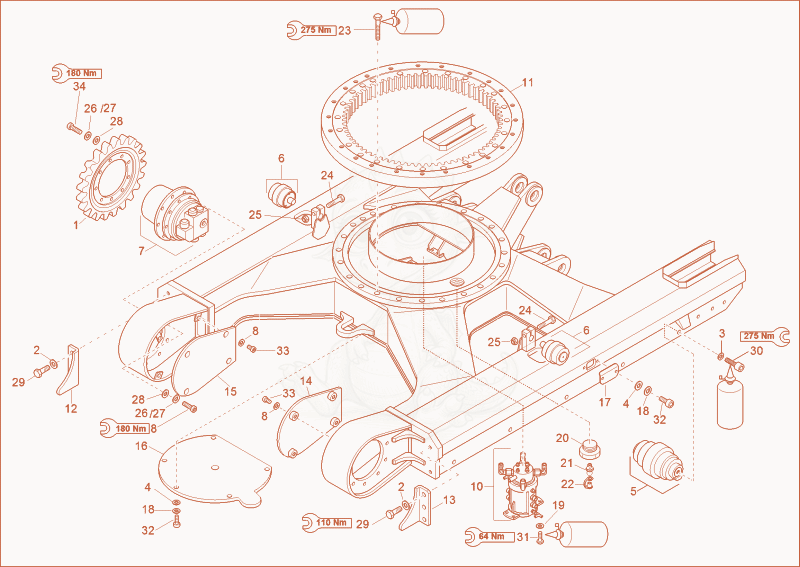

undercarriage
TRACKLAYING GEAR (OPTION STEEL CHAIN)
TRACK
support roller
track tensioner complete
track tensioner complete
track tensioner complete
TRACK TENSIONER (OPTION STEEL CHAIN)
guide roller
guide roller
dozer blade
chassis
chassis cover
lubrication
rear plate
valve cover
bumper
engine hood
hose cover
tank cover
lift arm
LUFFING BOOM (OPTION)
dipperstick
DIPPER ARM LONG (OPTION)
CONNECTING LINK
CABIN MOUNTING
CABIN FRAME 1
CABIN FRAME 1A
CABIN FRAME 2
CABINE FRAME 2A
CABIN FRAME 3
CABIN FRAME 3A
CABLING
front window
CABIN WINDOWS
slide window
door
coating
heating
drivers seat
Air cushioned seat (Option)
diesel engine
diesel engine
CYLINDER HEAD, VALVE COVER
cylinder block
seal crankshaft
oil sump
CAMSHAFT
crankshaft, piston
lub oil system
cooling system
fuel injection equipment

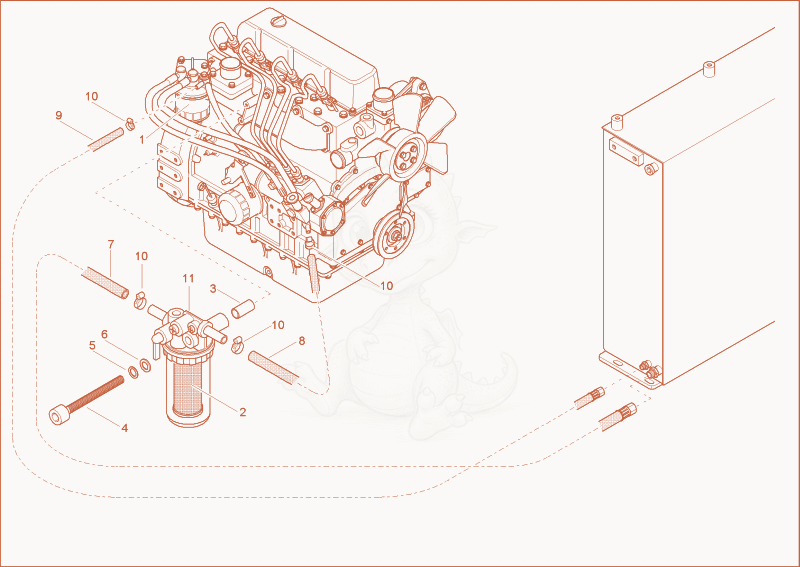

fuel line
fuel tank

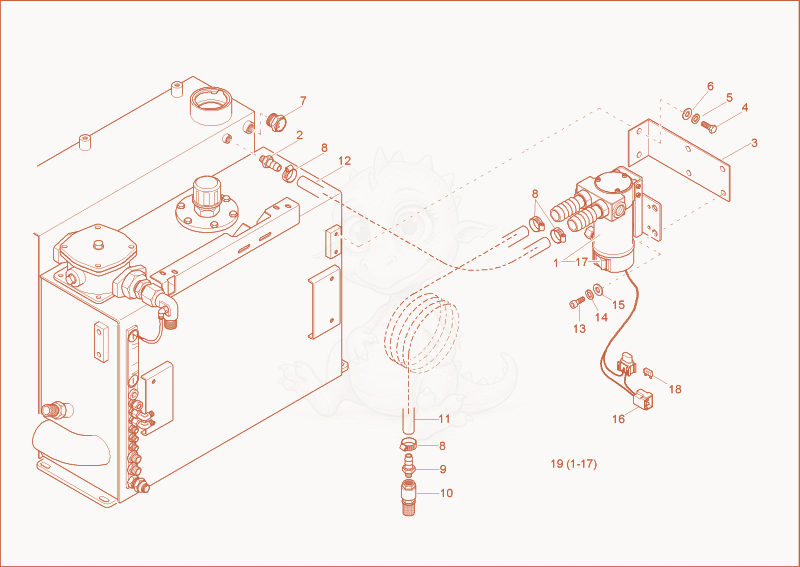

DIESEL TANK FILLING PUMP (OPTION)
DIESEL TANK FILLING PUMP (OPTION)
fuel system

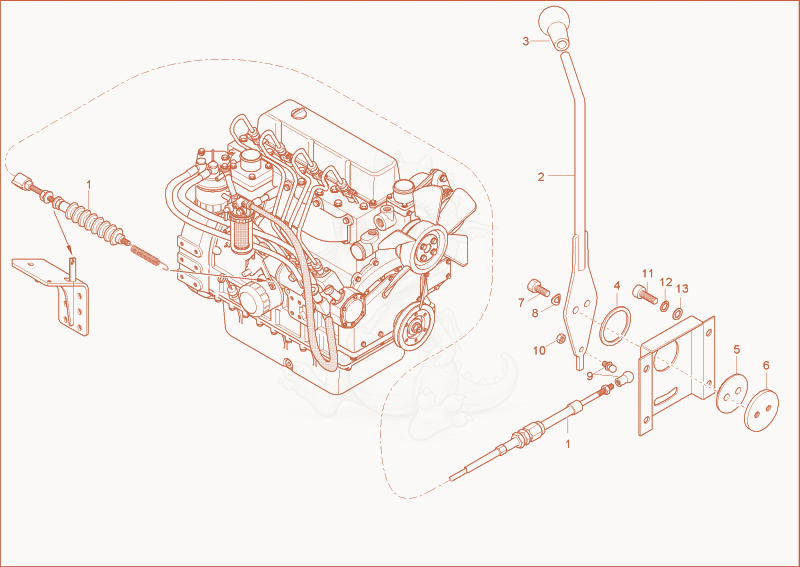

speed actuating
Engine bedding
water cooler
air cleaner
exhaust

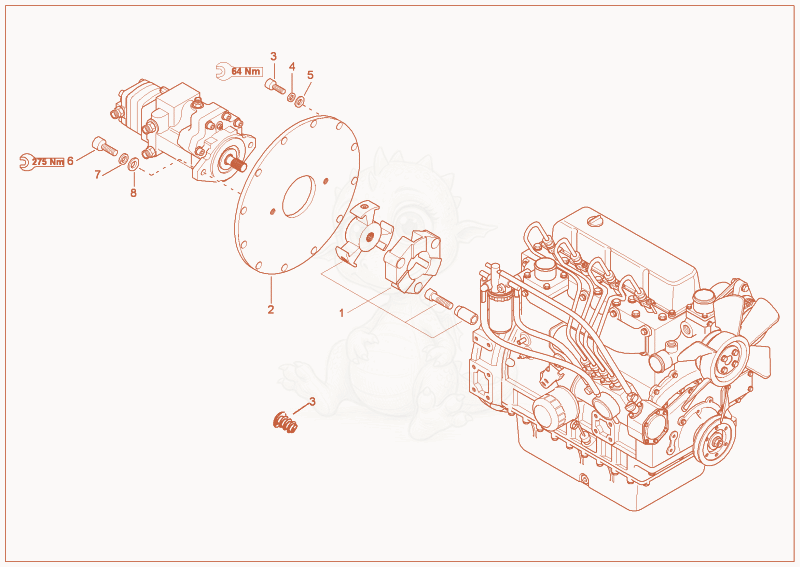

HYDRAULIC PUMP DRIVE
hydraulic tank
oil cooler
oil cooler

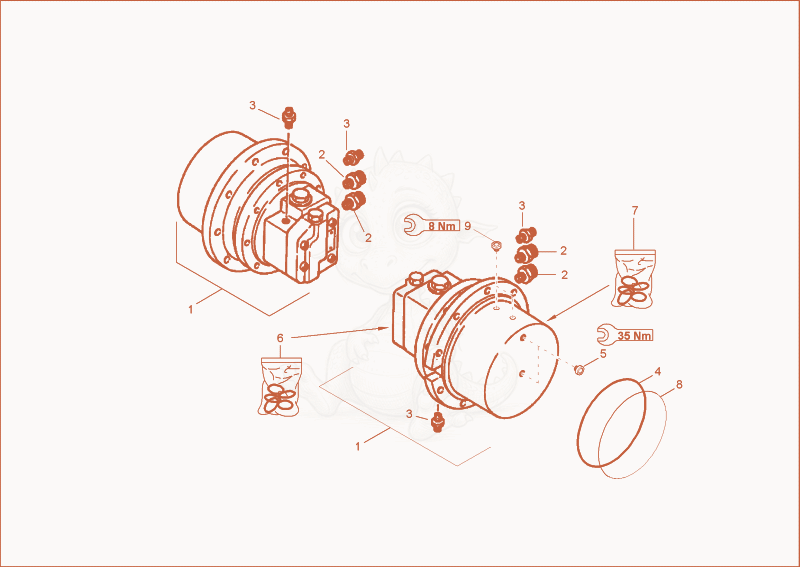

drive unit
turning joint
turning joint
hydraulic pump
HYDRAULIK PUMP DISASSEMBLED
swivel drive
swivel drive

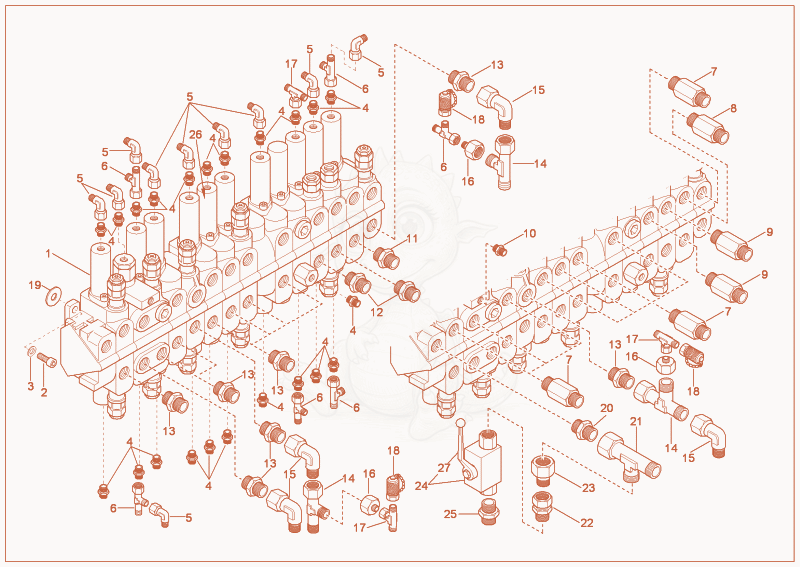

VALVE BLOCK 1
VALVE BLOCK 2

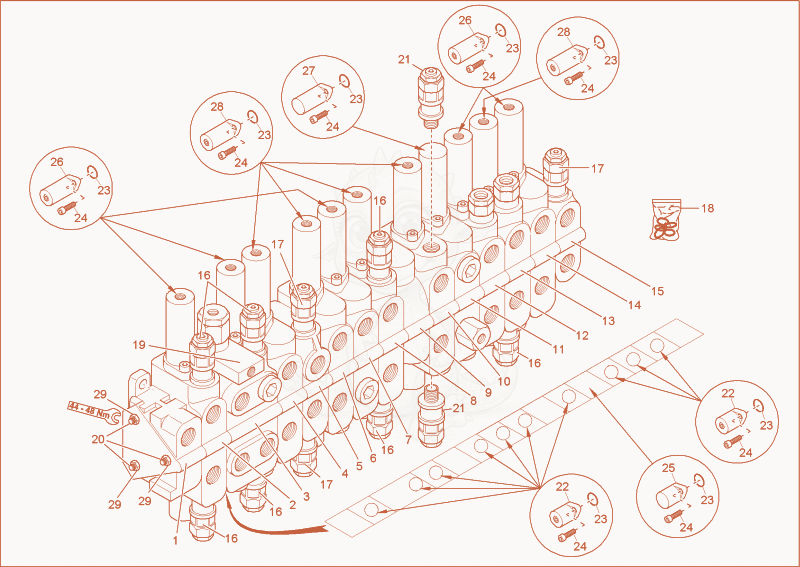

CONTROL VALVE 3
VALVE BLOCK (OPTION)
VALVE BLOCK (OPTION)
controloil unit
VALVE BLOCK
distributor block
DISTRIBUTION BLOCK (OPTION)
change over valve
joystick
blade valve
driving valve
PILOT OPPERATED CHECK VALVES
SOLENOID VALVE (OPTION)
4/3 VALVE (OPTION)
8/2 VALVE (OPTION)

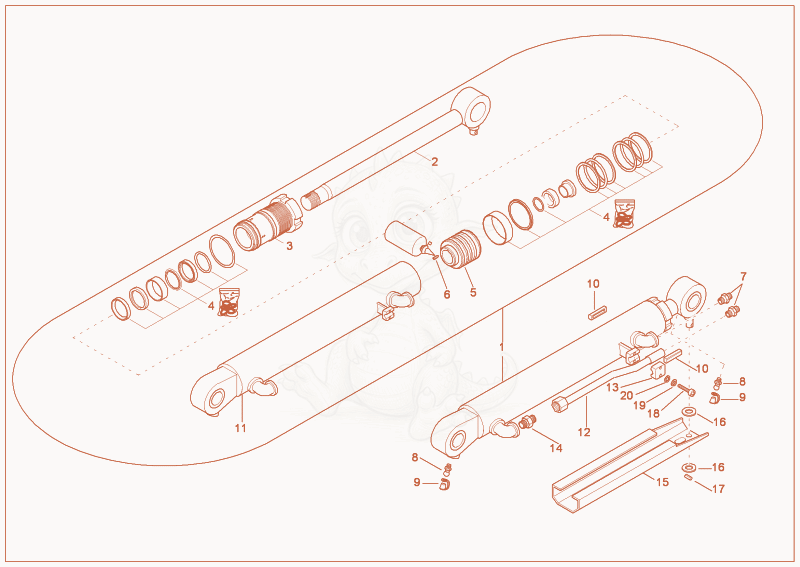

liftarm ram
liftarm ram
LIFTING BOOM CYLINDER (OPTION)
dipper arm cylinder
dipper arm cylinder
bucket cylinder
boom offset cylinder
blade cylinder
buckle cylinder

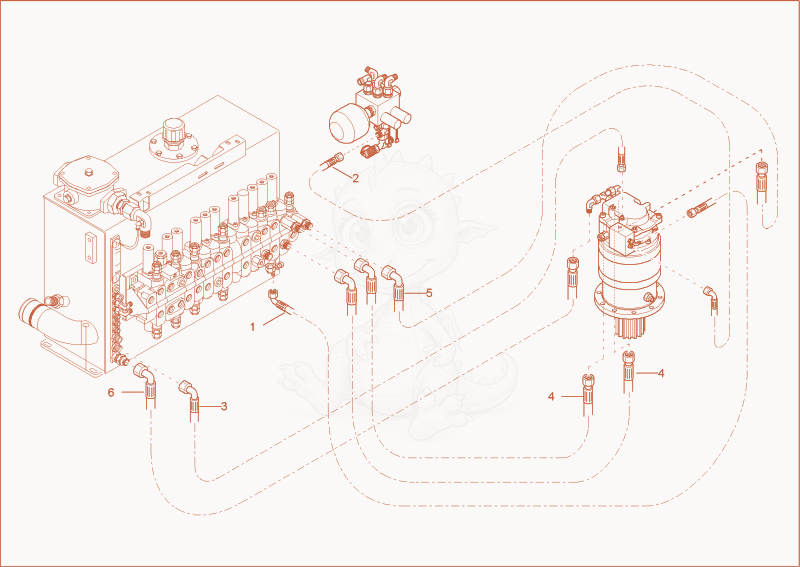

HYDRAULIC PUMP INSTALLATION
OIL COOLER INSTALLATION

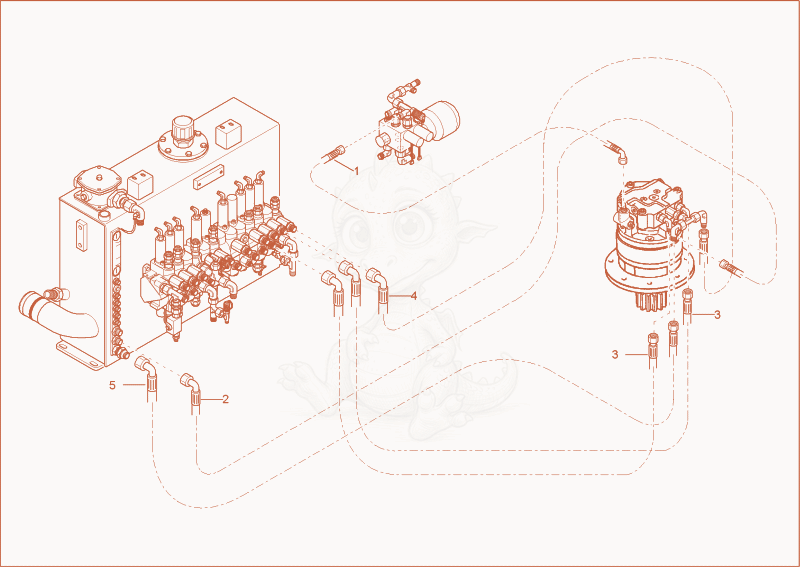

TURNTABLE DRIVE UNIT INSTALLATION
TURNTABLE DRIVE UNIT INSTALLATION
TRAVELLING GEAR INSTALLATION
INSTALLATION CONTROL VALVE
INSTALLATION VALVE
INST. PILOT OIL SUPPLY UNIT

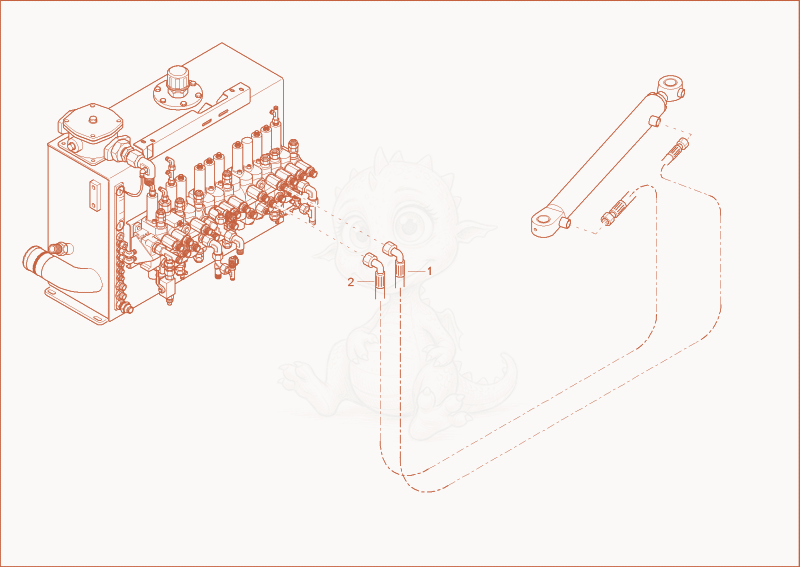

BOOM OFFSET CYLINDER INSTALLATION
DOZER BLADE CYLINDER INSTALLATION

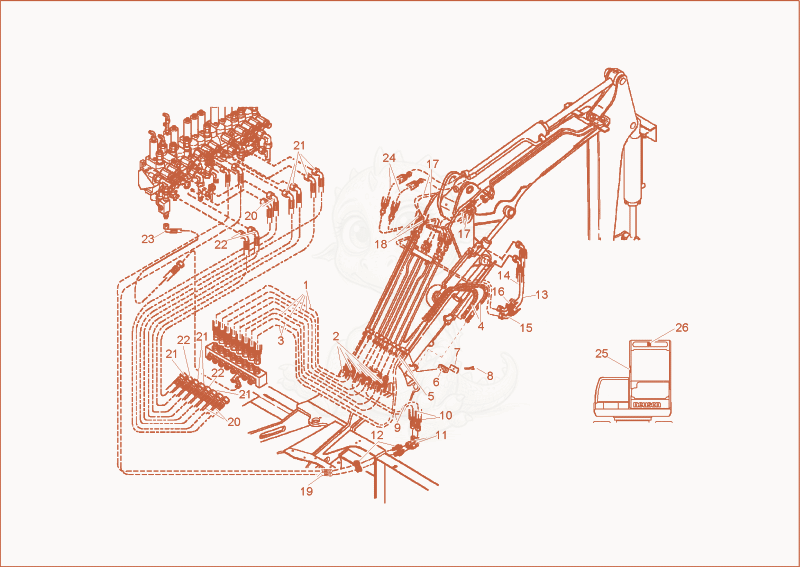

ARMSYSTEM INSTALLATION

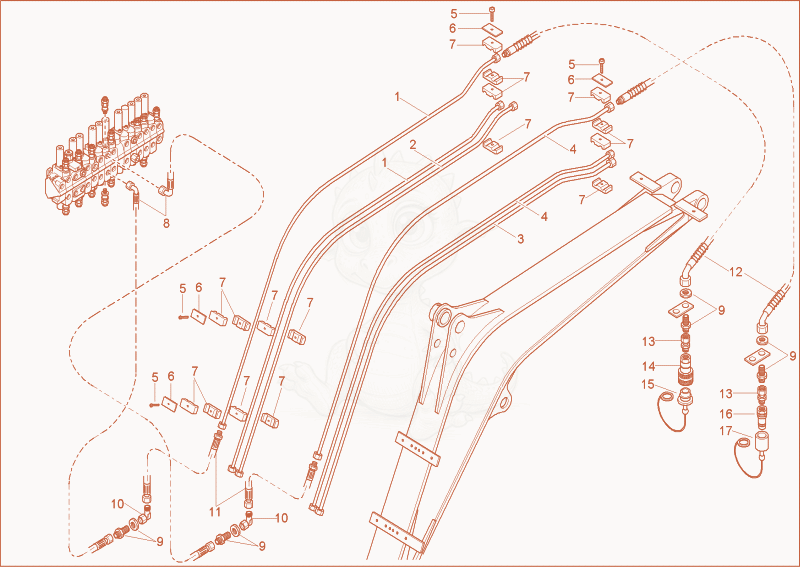

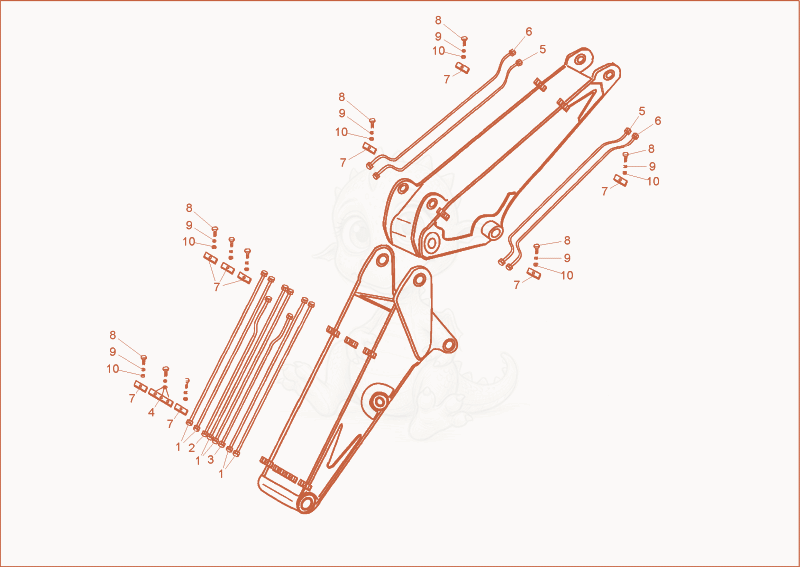

pipes set bentarm
INST. LUFFING BOOM

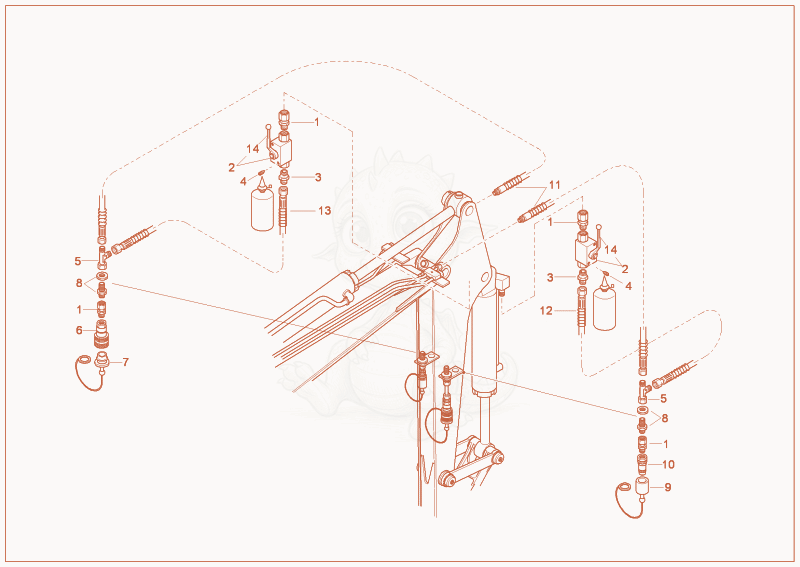

GRAB EQUIPMENT (OPTION)
GRAB EQUIPMENT BALL VALVE (OPTION)
HAND LEVERS INSTALLATION
INST. HAND LEVER VALVES (OPTION)
INSTALLATION PILOT OPPERATED CHECK VALVE
INST. PILOT OP. CHECK VALVES (OPTION)
ELECTRICAL AUXILIARY FUNCTION (OPTION)
stalling load warning g
overload warning f
PILOT CONTROL (OPTION)
3. HYDRAULIC CIRCUIT (OPTION)

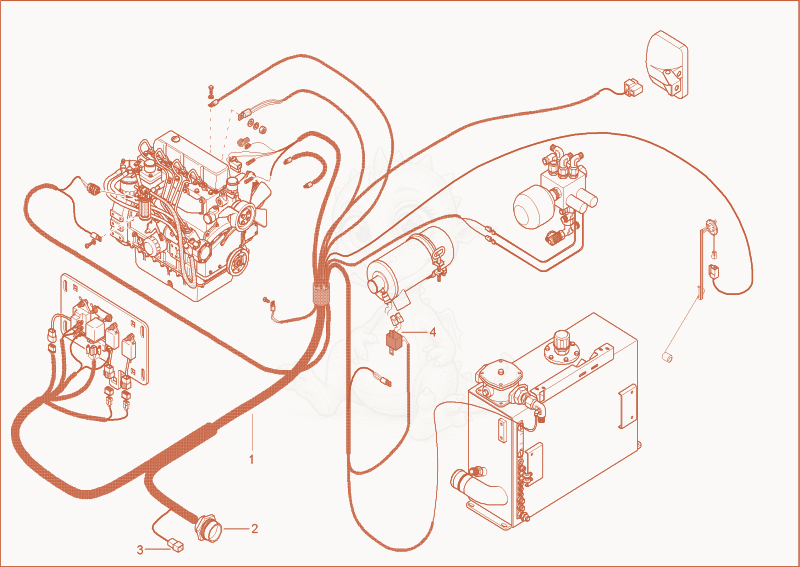

ENGINE WIRE HARNESS 1
ENGINE WIRE HARNESS 2
ENGINE WIRE HARNESS 3
WIRE HARNESS (OPTION LUFFING BOOM)
relay case
INSTALLATION RELAIS BOX
CHASSIS HEADLIGHT
HEADLIGHTS

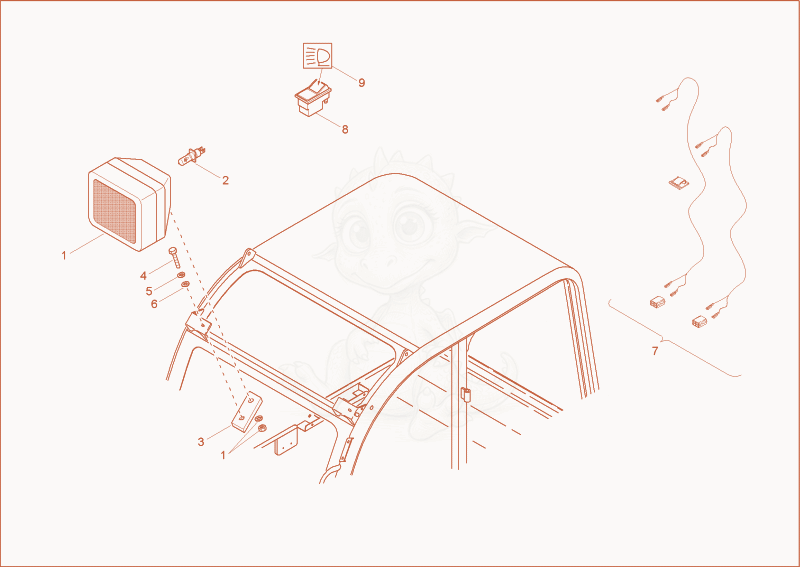

CABIN HEADLIGHT (OPTION)
battery

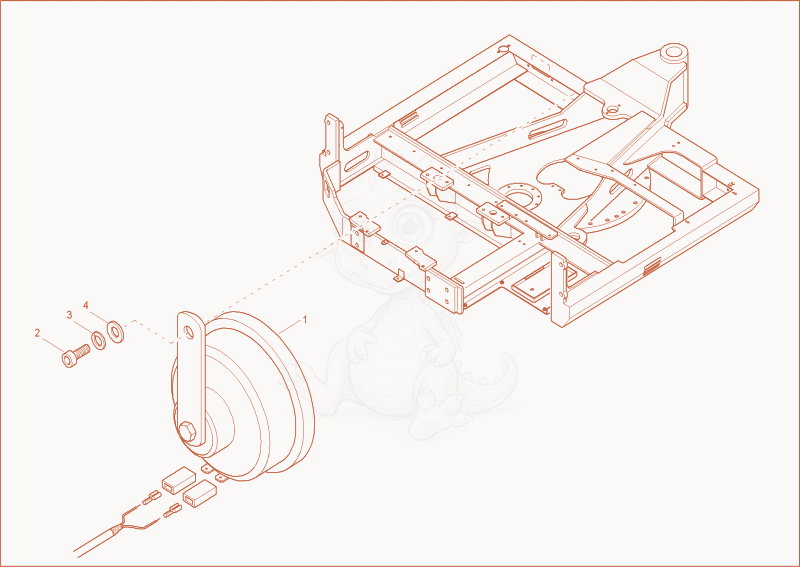

horn
tools
sticker
QUICK-HITCH COUPLER
bucket
bucket QHS
ditching bucket
ditching bucket QHS
tilting bucket
BUCKET OFFSET (DIPPER STICK LONG)
tilting bucket QHS
BUCKET OFFSET (DIPPER STICK LONG)
swivel bucket cylinder
swivel bucket cylinder
QHS console
service kit
overview accessory kits
