Neuson 6002RD

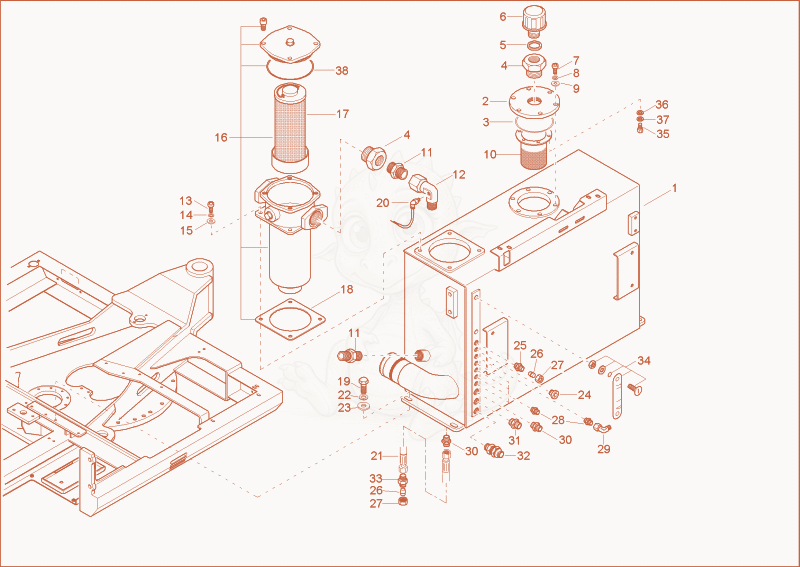

6002RD hydraulic tank Diagram
- 11000012599Not stockedhydraulic tank×1
- 21000070990Not stockedoil tank cap×1
- 31000015679Not stockedo-ring×1
- 41000082891Not stockedscrew joint×2
- 51000015666Not stockedseal ring×1
- 61000012522Not stockedventing filter×1
- 71000019450Not stockedcheese head screw×6
- 81000015437Not stockedlock washer×6
- 91000015431Not stockedwasher×6
- 101000021622Not stockedoil screen×1
- 111000015496Not stockedscrew joint×2
- 121000082874Not stockedscrew joint×1
- 131000015376Not stockedcheese head screw×4
- 141000015438Not stockedlock washer×4
- washer 10,5 A2C DIN125 - 1000015432×4
- 161000073991Not stockedreflux filter×1
- 171000012847Not stockedreflux filter insert×1
- 181000022244Not stockedseal kit back flow filter×1
- 191000015347Not stockedhex screw×4
- 201000081825Not stockedswitch hydraulic filter×1
- 211000076549Not stockedHose×1
- lock washer - 1000082609×4
- WASHER - 1000085610×4
- 241000022438Not stockedscrew joint×1
- GE12LMEDOMDA3C - 1000085053×1
- VKA12LSA3C - 1000082796×2
- M12L ST A3C - 1000015482×2
- 281000015488Not stockedscrew joint×5
- EW08LOMD - 1000000542×2
- 301000015489Not stockedscrew joint×2
- 311000015493Not stockedscrew joint×1
- 321000015570Not stockednon return valve×1
- G12LA3CX - 1000015486×1
- 341000012521Not stockedoil level indic×1
- hex screw - 1000085377×6
- washer A 5,3 A2C DIN125 - 1000094962×6
- lock washer - 1000082608×6
- O-Ring - 1000083482×1
