Neuson 6002RD

6002RD controloil unit Diagram

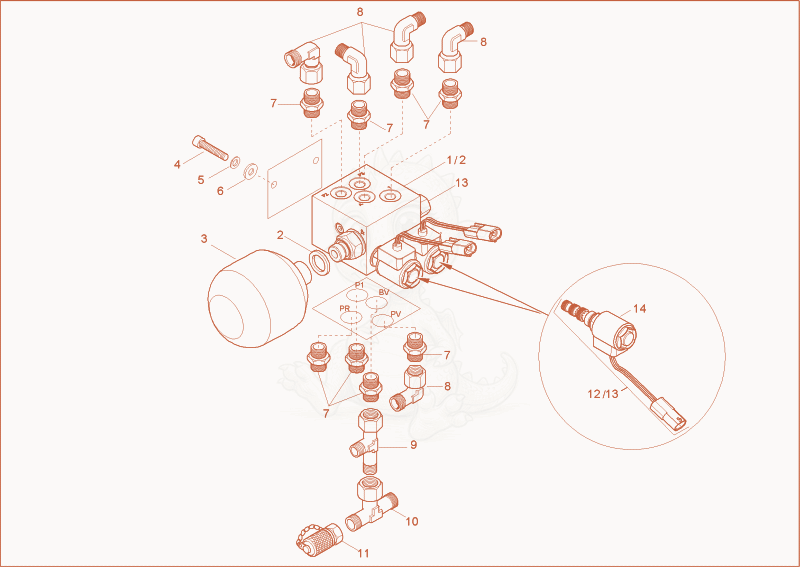

Exploded parts diagram of the controloil unit of a Wacker Neuson 6002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000003916Not stocked
    controloil unit×1
  • 21000021722
    $1,595.48
    controloil unit - 1000021722×1
  • 31000018404Not stocked
    accumulator×1
  • 41000019593Not stocked
    cheese head screw×2
  • 51000015437Not stocked
    lock washer×2
  • 61000015431Not stocked
    washer×2
  • 71000015488Not stocked
    screw joint×8
  • 81000000542
    $11.08
    EW08LOMD - 1000000542×5
  • 91000015515Not stocked
    screw joint×1
  • 101000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 111000000575Not stocked
    minimess point×1
  • 121000003907Not stocked
    magnet switch×1
  • 131000065907Not stocked
    solenoid valve×1
  • 141000065909Not stocked
    solenoid pivot valve×2
  • 151000065884Not stocked
    regulating mount set×1
  • 161000022187Not stocked
    seal ring×1
