Neuson 6002RD

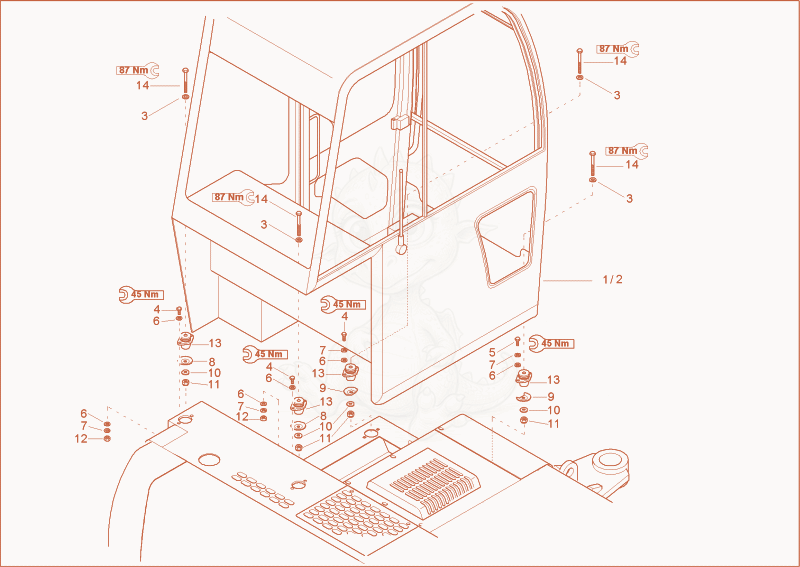

6002RD CABIN MOUNTING Diagram

Exploded parts diagram of the CABIN MOUNTING of a Wacker Neuson 6002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000082091Not stocked
    cabin×1
  • 21000082160Not stocked
    cabin×1
  • 31000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×4
  • 41000015364Not stocked
    hex screw×6
  • 51000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 61000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×12
  • 71000015438Not stocked
    lock washer×8
  • 81000069545Not stocked
    support plate×2
  • 91000069546Not stocked
    support plate×2
  • 101000049219Not stocked
    washer×4
  • 111000020127Not stocked
    hexagon nut×4
  • 121000015407Not stocked
    hexagon nut×4
  • 131000069525Not stocked
    silent bearing×4
  • 141000085362
    $1.88
    hex screw - 1000085362×4
